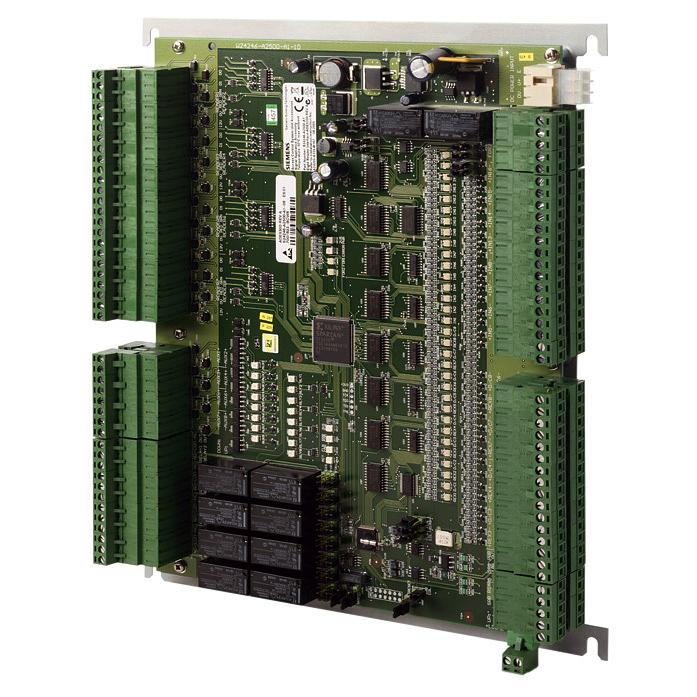

ADE5300 Eight Reader Interface

ADE5300 Eight Reader Interface
Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V24246-A2500-A1
  • EAN/UPC-Code: 4025515475316
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation
Kuvaus
Sulje valikko
Tuotetiedot "ADE5300 Eight Reader Interface"
The ADE5300 provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and up to 8 card readers. From the ADE5300‚ the information held within the access cards is transmitted to the controller. Each time an access attempt is made the controller verifies the data on the ID card and will then either allow or deny access. The ADE5300 can be configured to control up to 8 doors separately or up to 4 doors that include both entry and exit readers. All variations are possible; for example‚ you can have six single-reader doors and 1 dual-reader door connected to one ADE5300.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 1.6
Osta yksikkö PCE
EAN/UPC-Code: 4025515475316
Mindestabnahme 1
ECCN N
Country of origin HU
Material code V24246-A2500-A1
Net weight 1.520
Statistical code 84733020
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Interface: FLN connection to controller: RS485 To readers: Support for eight readers via RS485 or Wiegand
Interfaces: FLN connection to central controller: RS485 Connection to readers: support for 8 RS485 or Wiegand readers
Approval: CE, UL294, C-Tick
Weight: 1.65 kg
Indicators: Power, Activity, FLN Communication, Reader bus communication, Input/output, Fire override
Inputs: 8 x Door contact 8 x Request-to-exit 16 x Auxiliary All inputs unsupervised or supervised 2 x Fire override (normal or enhanced mode)
Outputs: 8 x Lock output relay (30 VDC, 2 A) 8 x Open-collector output (100 mA, 9.7-12 VDC) 2 x Fire override relay (30 VDC, 2 A)
Current consumption: Max. 2 A at 12 V, max. 1.5 A at 24 V
Power output: Reader: 8 x 400 mA‚ 12 VDC Ancillary: 1 x 1.5 A‚ 12 VDC
Operating voltage: 12 VDC ±10 % or 24 VDC -± 10 %
Tamper switch: Optional, auxiliary input
Firmware: Flash upgradeable
Dimensions (W x H x D): 250 x 287 x 50 (mm)
