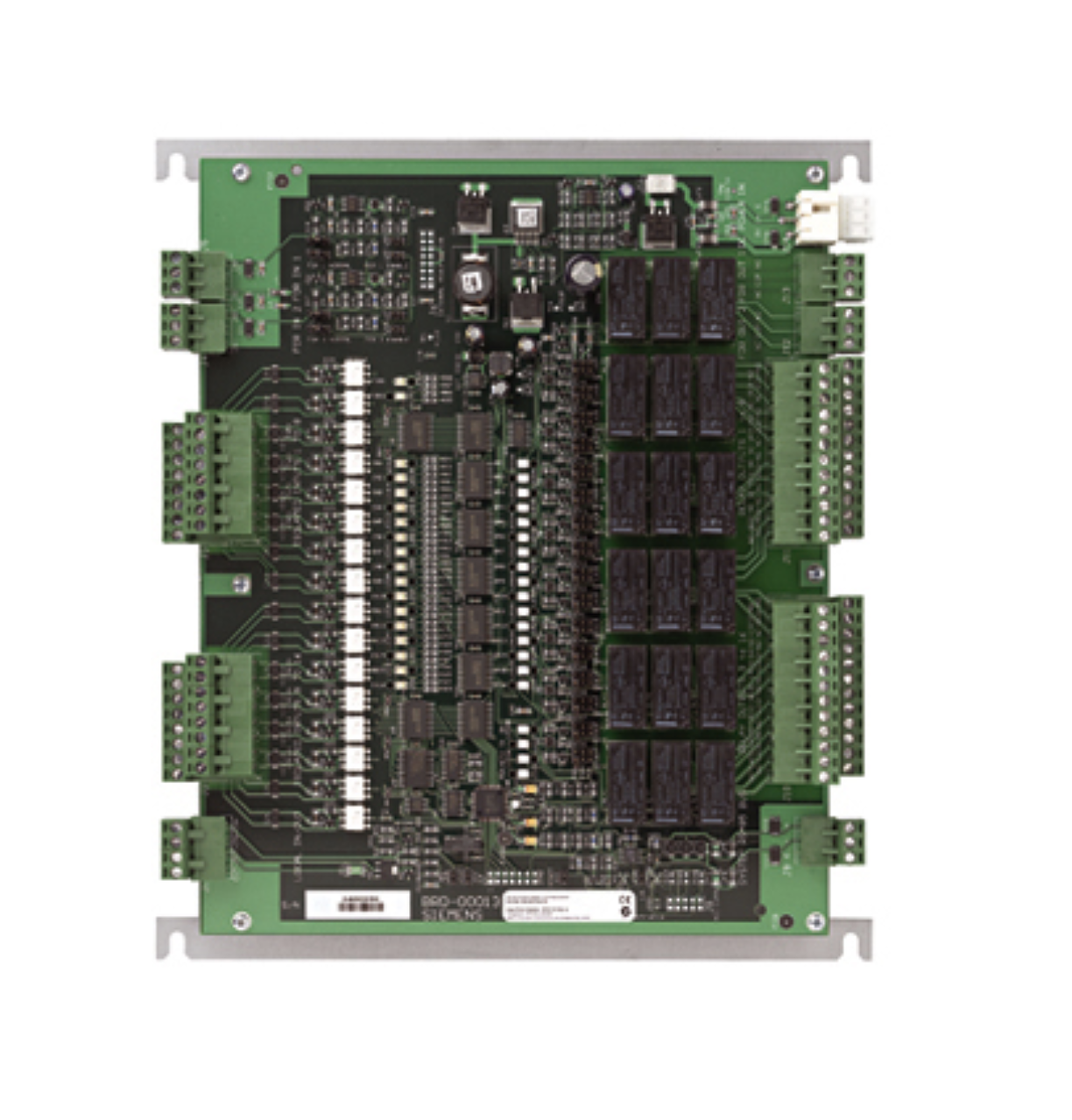

AFO5100 Output Module

AFO5100 Output Module
Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V6FL7820-8CC10
  • EAN/UPC-Code: 4025515475132
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation
Kuvaus
Sulje valikko
Tuotetiedot "AFO5100 Output Module"
The AFO5100 is an advanced‚ multi-purpose module that provides an interface between powered field-level input contact devices (such as elevator buttons) and output devices (such as override mechanisms) to the advanced central controller (AC5100‚ AC5102 or AC5200). It is designed for use in elevators that are integrated within an access control environment. A single AFO5100 can provide access control for up to 16 floors and multiple AFO5100 modules can be combined in an elevator system to provide access control for all floors. The fire override mechanism allows floors to be made automatically accessible during an emergency situation‚ a critical feature for sites where legislation requires strict emergency responses.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 1.47
Osta yksikkö PCE
EAN/UPC-Code: 4025515475132
Mindestabnahme 1
Country of origin HU
Material code V6FL7820-8CC10
Net weight 1.392
Statistical code 84733020
ECCN EAR99
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Dimensions (W x H x D): 216 x 267 x 30 mm
Weight: 1.3 kg
Outputs: 16 x Relays (30 VDC‚ 2 A) 1 x Tamper (open-collector 12 VDC‚ 100 mA) 2 x Fire override relays (30 VDC‚ 2 A)
Inputs: 16 x Isolated (unsupervised external voltage required) 1 x Tamper (internally supplied) 2 x Fire override (potential-free or internally supplied)
Indicators: Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
Power consumption: 50 W
Operating voltage: 12 VDC ±10% or 24 VDC ±10%
Interface: To controller: RS485
Interfaces: Al controllore: RS485
Operating temperature: 0 to +50 °C
Approval: CE‚ UL294‚ C-Tick
Firmware: Flash upgradeable
