SPCP333.300 Smart PSU (17AH) w. I/O-Exp

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54545-C101-A100
  • 4025515471011
Tuotetiedot "SPCP333.300 Smart PSU (17AH) w. I/O-Exp"

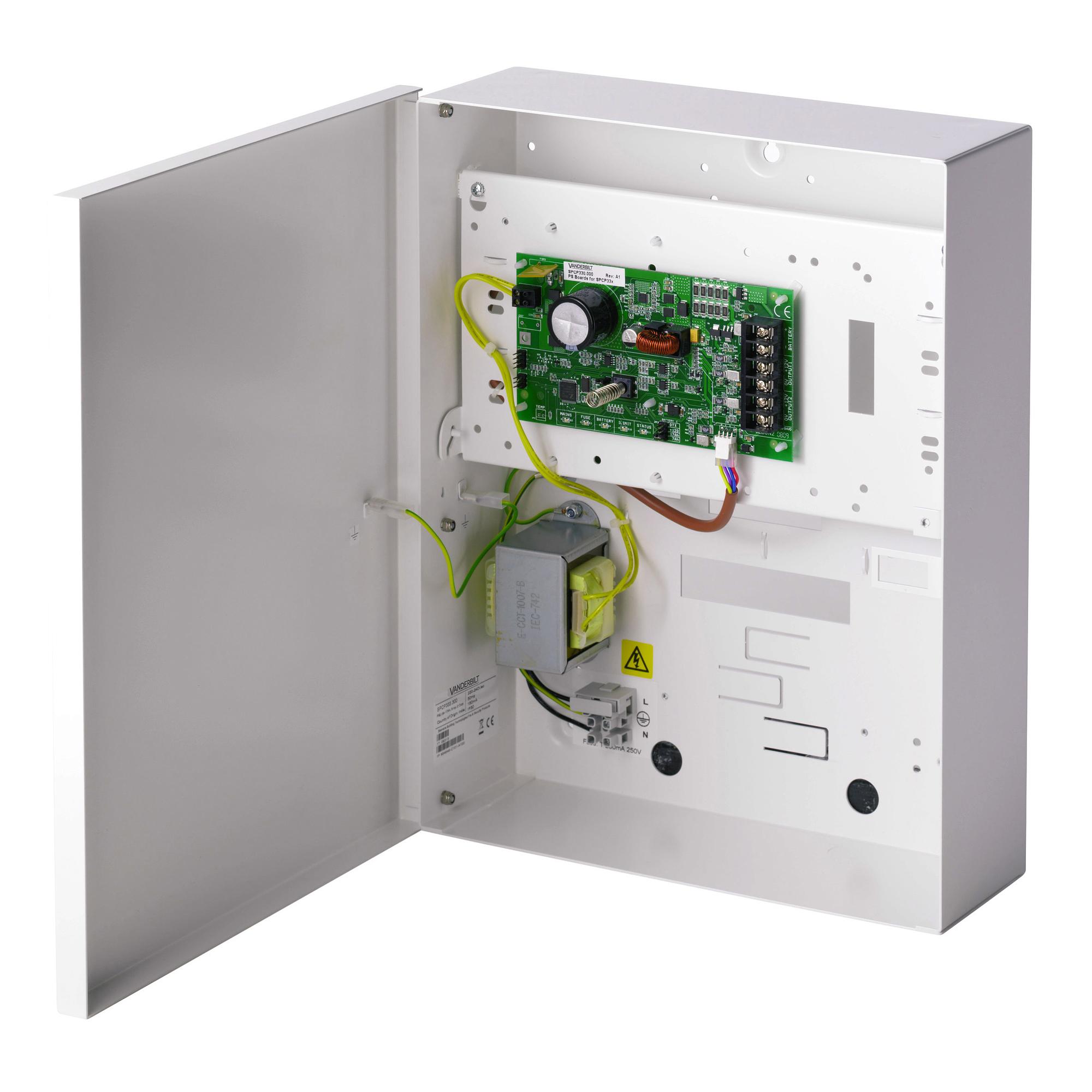

The SPCP333.300 smart power supply expander (PSU) extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected hinged metal housing with space for an optional 17 Ah battery and 3 expanders.
Gross weight (KG) 7.34
Osta yksikkö PCE
EAN/UPC-Code: 4025515471011
Mindestabnahme 1
ECCN N
Statistical code 85389099
Country of origin PH
Material code V54545-C101-A100
Net weight 6.973
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Weight: 6.3 kg
Dimensions (W x H x D): 326 x 415 x 114 mm
Output voltage: 11-14 VDC in normal conditions (mains powered and fully charged battery)
Quiescent current: Max. 77 mA at 12 VDC
Operating current: Max. 117 mA at 12 VDC (all relays activated)
Tamper contact: Front spring tamper, back tamper
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Interfaces: X-BUS (in, out, branch)
Power output: Max. 1500 mA bei 12 VDC (750 mA pro Ausgang)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Housing: Hinged metal housing (1.2 mm mild steel)
Number of on-board zones: 8
Colour: RAL 9003 (signal white)
Operating temperature: 0°C ~ +40 °C
