SPCW130.100 SiWay RF-Expander

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54554-F101-B100
  • 4025515471196
Tuotetiedot "SPCW130.100 SiWay RF-Expander"

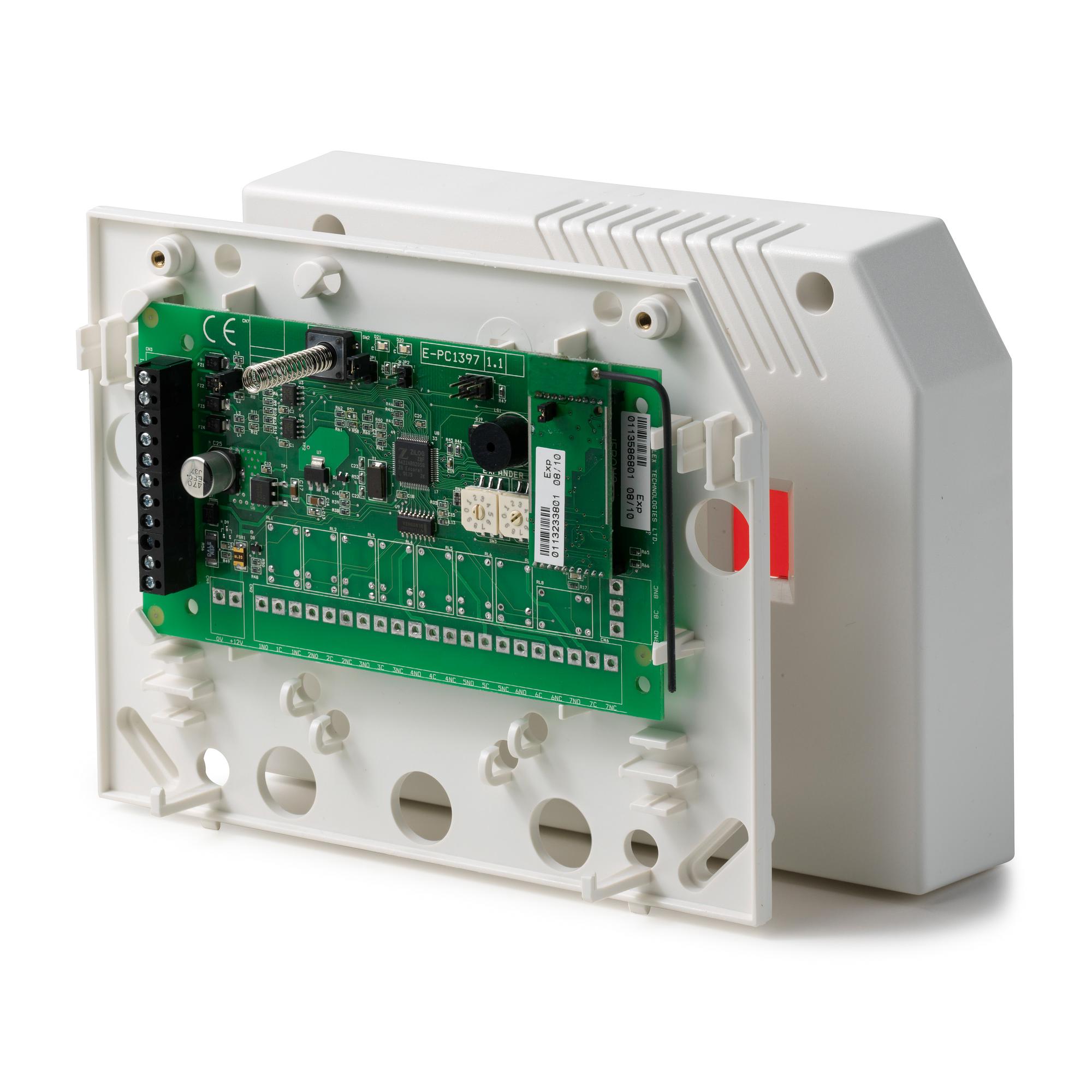

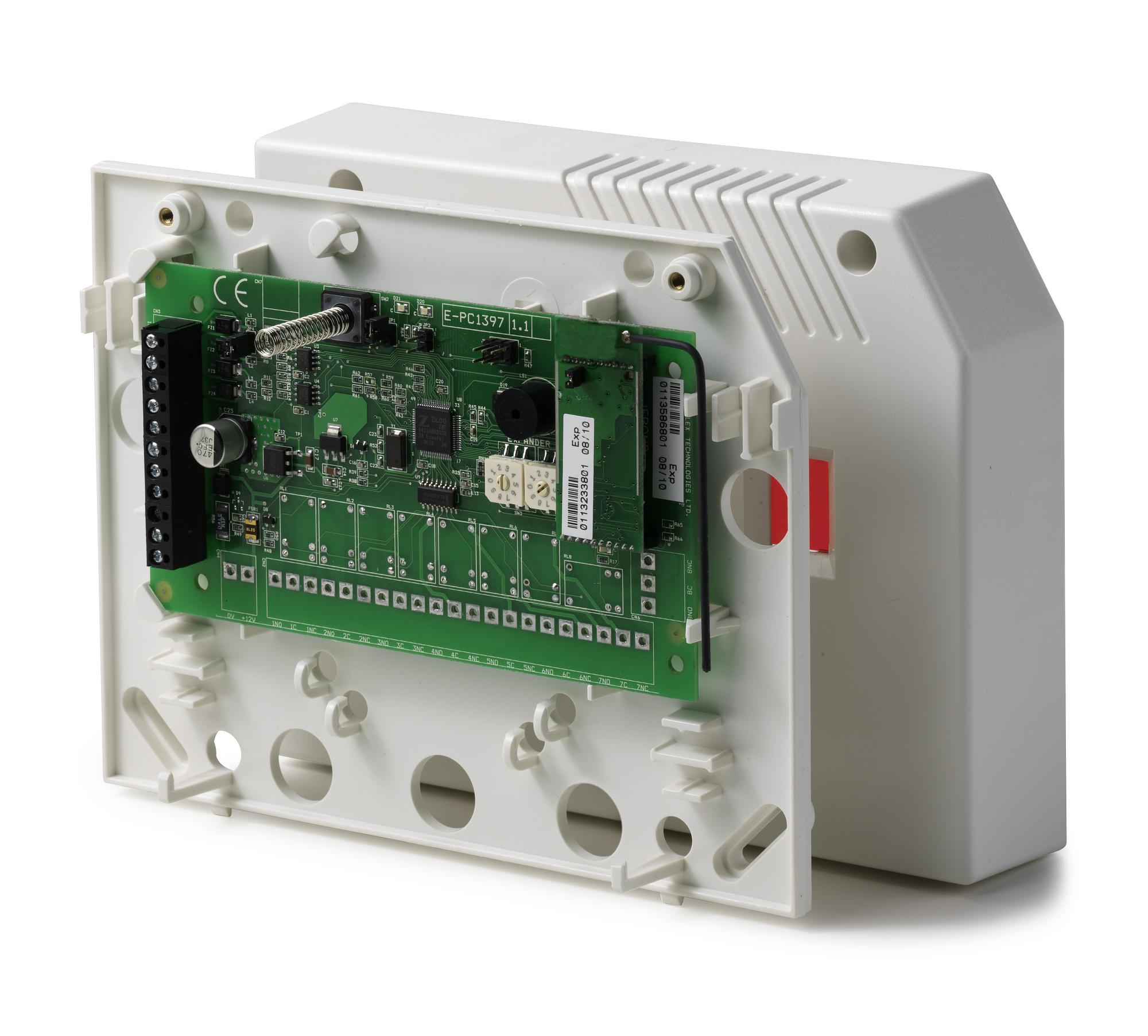

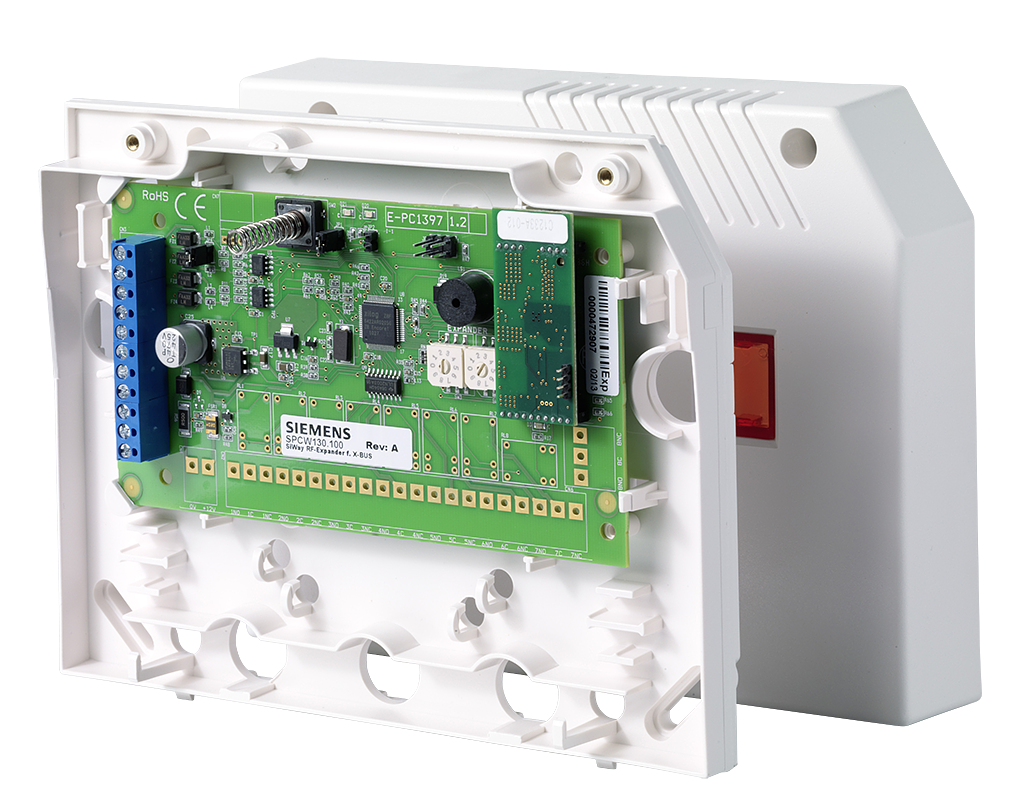

The SPCW130.100 SiWay RF-expander is connected to the X-BUS and provides a wireless access point for the Intrunet wireless detectors and remote controls linked to the system.The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Gross weight (KG) 0.4
Osta yksikkö PCE
EAN/UPC-Code: 4025515471196
Mindestabnahme 1
ECCN N
Material code V54554-F101-B100
Statistical code 85311030
Net weight 0.380
Country of origin PH
Quiescent current: Max. 60 mA at 12 VDC
Operating current: Max. 60 mA at 12 VDC
Weight: 0.340 kg
Interfaces: X-BUS (in, out, branch)
Tamper contact: Front spring tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Tamper switch: Ja
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 (mm) (housing),150 x 82 x 20 mm (PCB)
