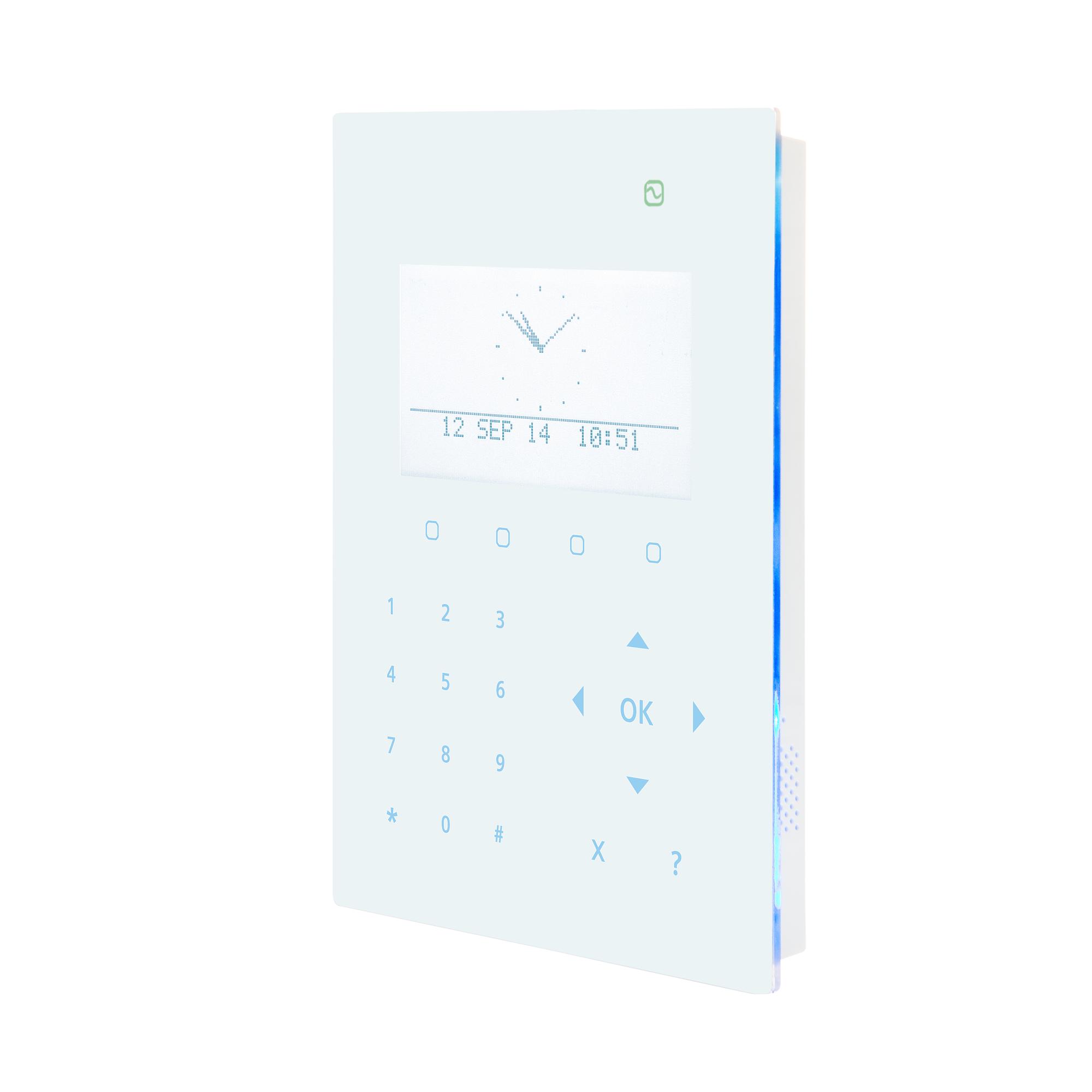

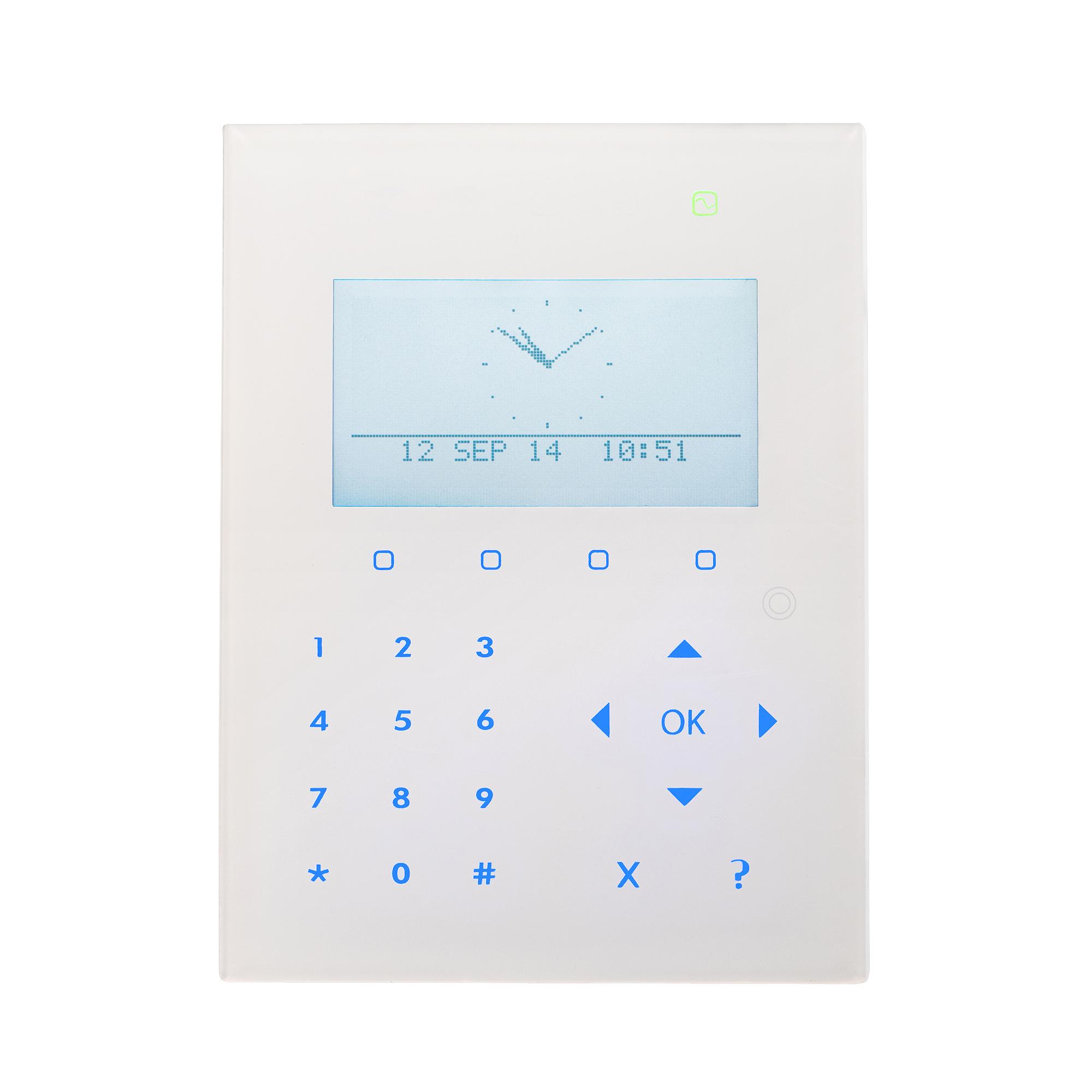

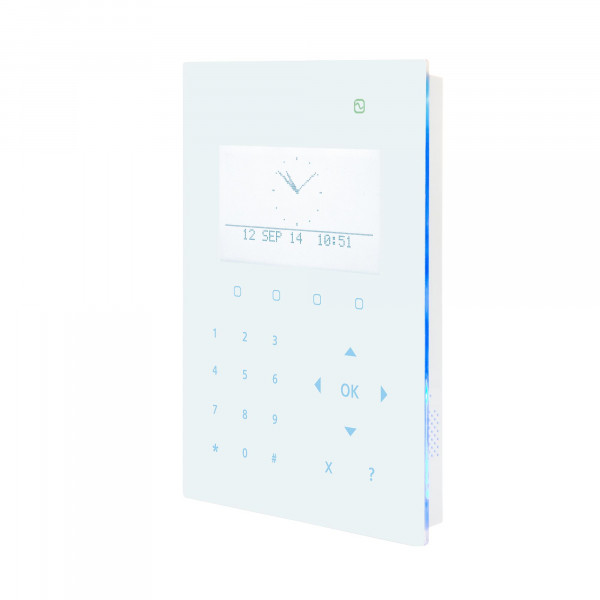

SPCK521.100-N Compact Keypad w. CR Neu.

Esikatselu: SPCK521.100-N Compact Keypad w. CR Neu. Esikatselu: SPCK521.100-N Compact Keypad w. CR Neu.
SPCK521.100-N Compact Keypad w. CR Neu.
SPCK521.100-N Compact Keypad w. CR Neu.

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54543-F116-A100
  • EAN/UPC-Code: 4025515470991
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Software
Kuvaus
Sulje valikko
Tuotetiedot "SPCK521.100-N Compact Keypad w. CR Neu."
The SPCK521.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Support for EM and Mifare card technologies are provided by integrated readers allowing for quick user authentication. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 0.325
Osta yksikkö PCE
EAN/UPC-Code: 4025515470991
Mindestabnahme 1
ECCN N
Material code V54543-F116-A100
Statistical code 85311030
Net weight 0.309
Country of origin PH
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Interfaces: X-BUS (in, out)
Card technology: EM 4102 (125kHz) and Mifare (13.56 MHz) supported
Quiescent current: Max. 95 mA at 12V DC
Operating current: Max. 210 mA at 12V DC (backlight, LEDs, audio, reader operated)
Housing: Plastic housing (PMMA, PC ABS, ABS)
Weight: 0.250 kg
Mounting: Flat surface, wall-mounted or flush mounted using SPCY520 / SPCY521
Audio: Supported via integrated speaker
Keypad: Touch key technology
Operating temperature: 5 ~ +40 °C
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 110 x 150 x 17.5 (mm)
