ECO560 Outdoor sounder/beacon

ECO560 Outdoor sounder/beacon
Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: N54539-Z134-A100
  • EAN/UPC-Code: 7330082000203
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation
Kuvaus
Sulje valikko
Tuotetiedot "ECO560 Outdoor sounder/beacon"

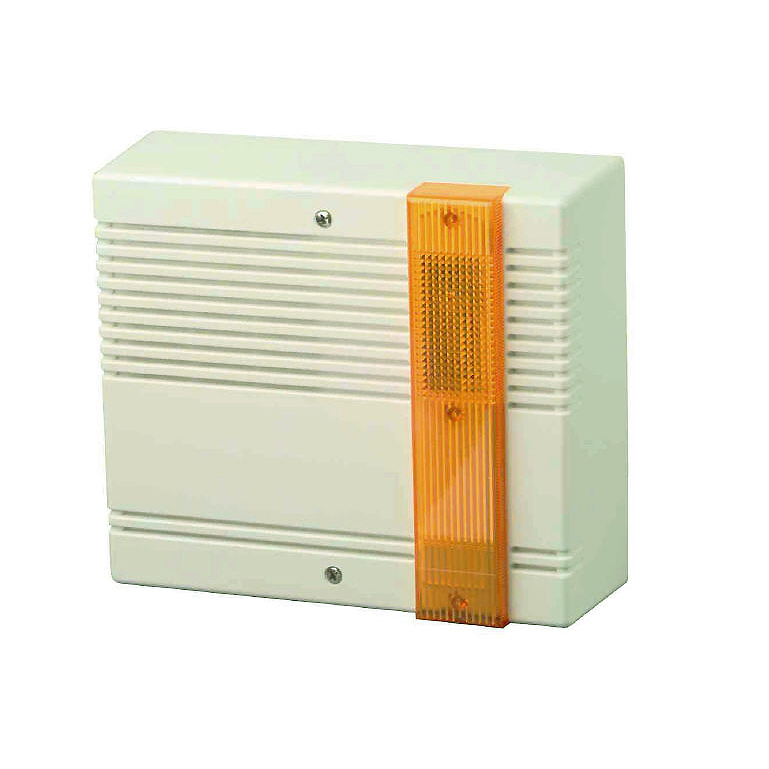

An outdoor acoustic alarm device with a beacon, which is protected against reverse polarity for the internal battery. The device is activated & monitored by the main control panel. Can operate with or without an internal battery.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 2.29
Osta yksikkö PCE
EAN/UPC-Code: 7330082000203
Mindestabnahme 1
ECCN N
Country of origin IT
Material code N54539-Z134-A100
Net weight 2.176
Statistical code 85311095
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Operating voltage: 9 ~ 13.8 VDC
Dimensions (L x W x H): 197 x 226 x 83 (mm)
Sound level: 106 dB at 1m
Quiescent current: 15mA Alarm siren & recharge 500mA +/-100mA Alarm - Siren from battery 1.3A +100/-300mA Alarm strobe - 90mA +/-10mA
Operating current: Siren - 500mA +/- 100mA from control panel
Housing: Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Housing material: Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Protection rating: IP44
Tamper protection: Front cover and removal
Weight: 2,500 kg
Approval: VSÖ: W 170227/04 E, Klasse WS
Battery: 12 V / 2 Ah
Frequency: 1474 Hz
Operation temperature: -25 ~ +55°C
