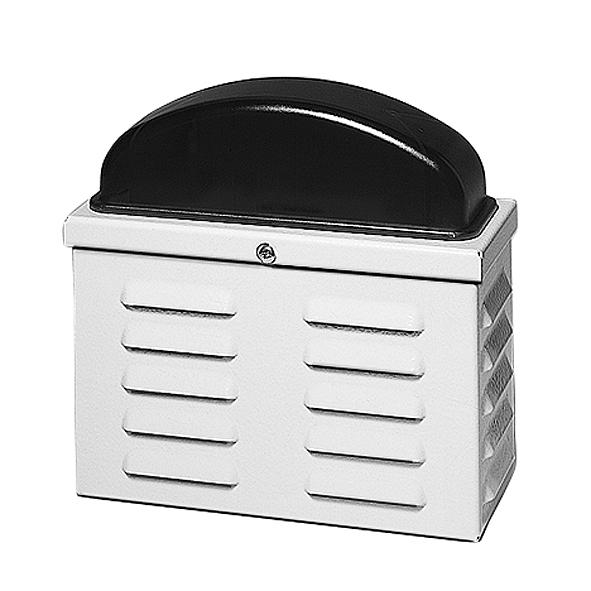

SG3200AK/OP Compact alerting

SG3200AK/OP Compact alerting
Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: NDE6:9908440013
  • EAN/UPC-Code: 4025515476597
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation
Kuvaus
Sulje valikko
Tuotetiedot "SG3200AK/OP Compact alerting"
The protective housing is made of powder-coated aluminum (1.5 mm) with corrosion-resistant protective coating, an interior sheet as extra protection against sabotage and a cover contact. The siren is equipped with a range of tones for burglary and fire. Fully assembled and ready to connect to all Sintony and ACP panels.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 1.31
Osta yksikkö PCE
EAN/UPC-Code: 4025515476597
Mindestabnahme 1
ECCN N
Net weight 1.245
Material code NDE6:9908440013
Country of origin DE
Statistical code 85311095
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Weight: 1,600 kg
Sound level: 100 dB(A)
Power supply: 12 VDC
Housing material: Aluminium
Frequency: 1,2 Hz
Current consumption: Sirene ca. 350 mA Blitzleuchte ca. 200 mA
Colour: grauweiss (RAL 9002)
Approval: VdS Klasse C; G 199005
Environmental class: IV
Dimensions (L x W x H): 193 x 205 x 88 (mm)
