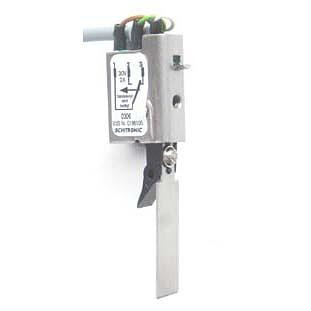

TKU16-4M Bolt switch contact. 4m

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • NDE6:9901650013
  • 4025515476337
Tuotetiedot "TKU16-4M Bolt switch contact. 4m"
Electromechanical contact with dust and waterproof microswitch for monitoring closing of doors and windows with 4 meter (4M) connection cable. It is installed in the door frame and actuated by the lock bolt when the door shuts. The contact can be adapted to different bolt shapes by deforming the control lever.
Gross weight (KG) 0.08
Osta yksikkö PCE
EAN/UPC-Code: 4025515476337
Mindestabnahme 1
ECCN N
Net weight 0.076
Material code NDE6:9901650013
Country of origin DE
Statistical code 85311095
Operating temperature: -40 ~ +65 °C
Housing protection: Stainless steel, PA 6.6, PE soft
Housing material: IP50 (IP67 switch cover)
Current: 1 mA ~ 2 A
Approval: VdS geprüft, Klasse C, Nr.: G 186105 VSÖ geprüft, Klasse WS, Nr.: W 021014/15
Voltage: max. 30 VDC
