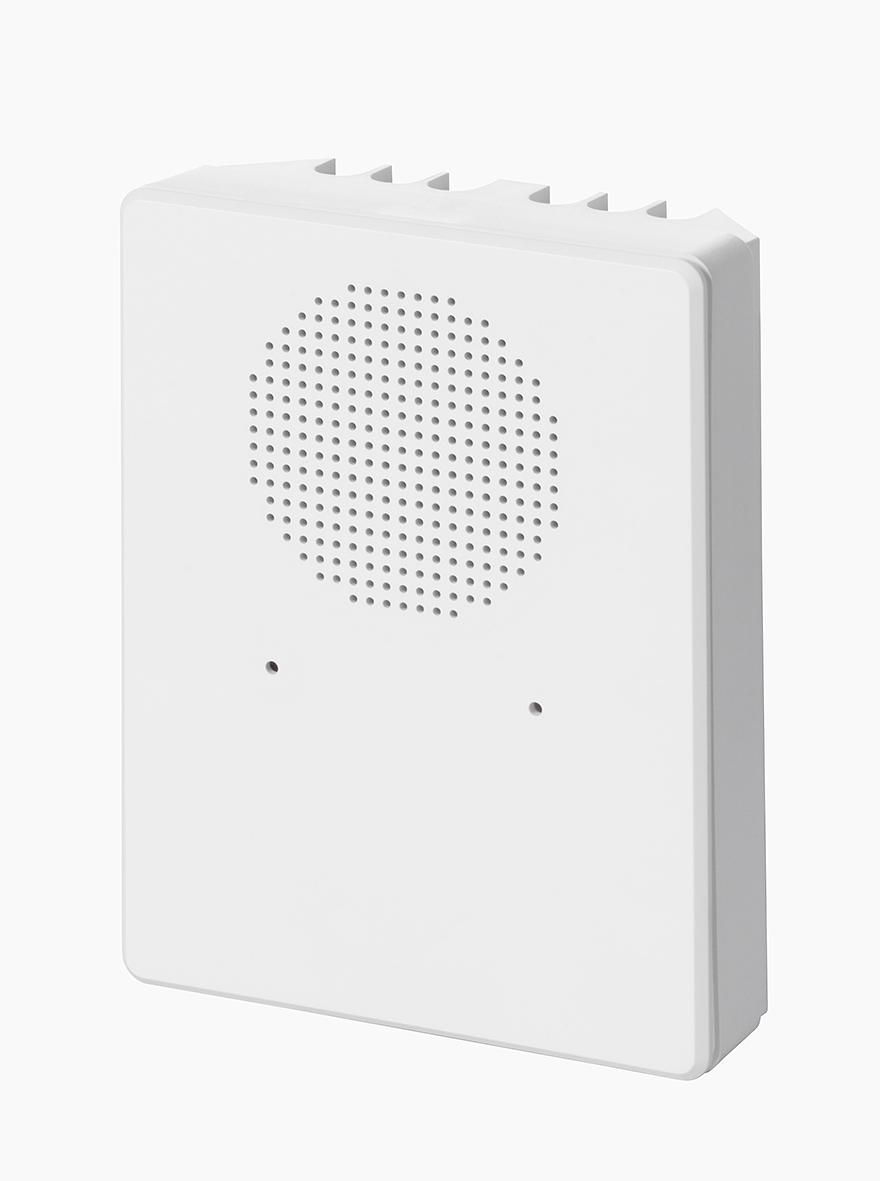

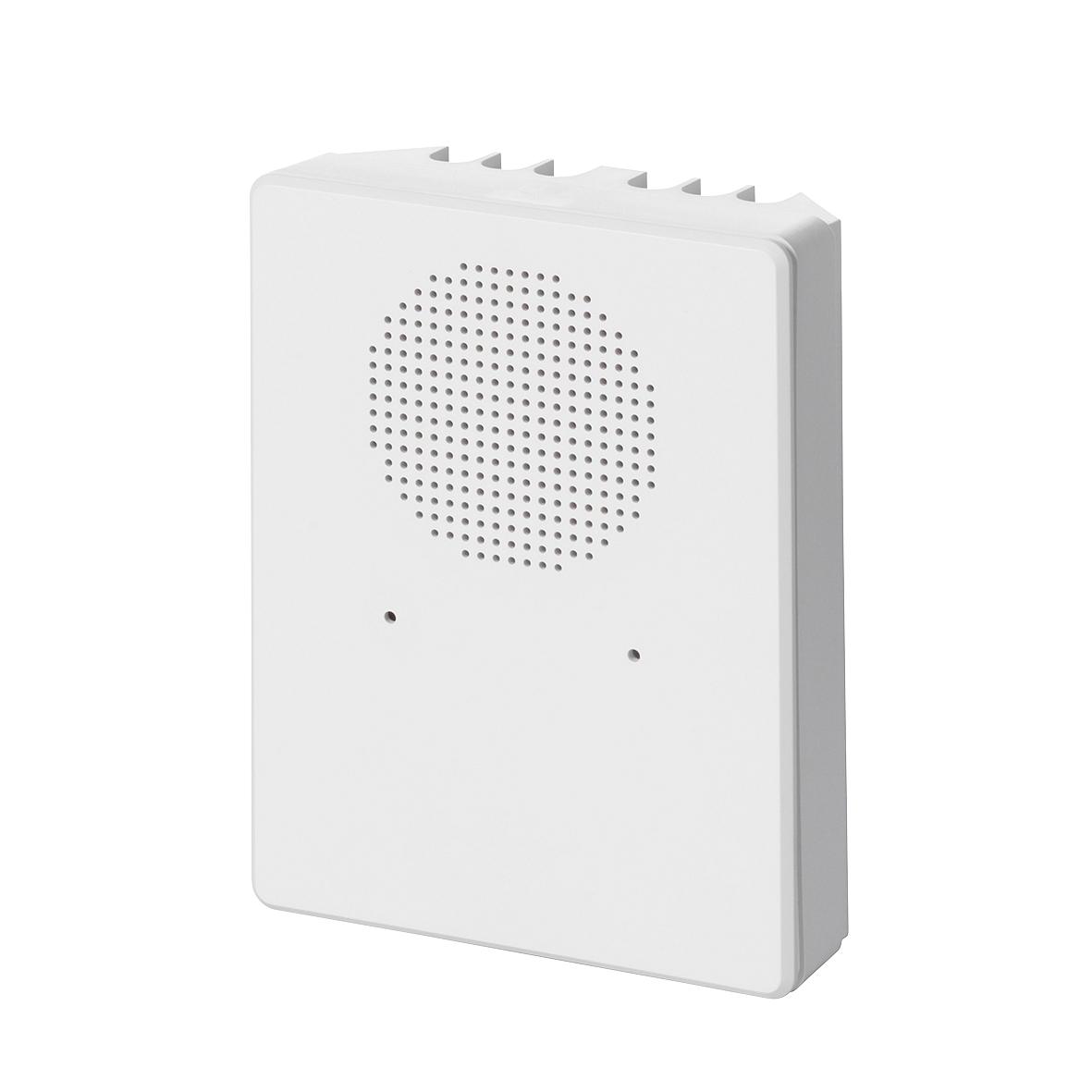

SPCV341.000 Audio Exp. 4 In/1 LineOut

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54542-F109-B100
  • 4025515470892
Tuotetiedot "SPCV341.000 Audio Exp. 4 In/1 LineOut"
The SPCV341.000 Audio Expander extends the SPC system via X-BUS with an audio verification zone, 4 wired zones and 1 line output to drive an external audio pre-amplifier. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the SPC system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.
Gross weight (KG) 0.425
Osta yksikkö PCE
EAN/UPC-Code: 4025515470892
Mindestabnahme 1
Statistical code 85311030
ECCN 3A991
Material code V54542-F109-B100
Net weight 0.404
Country of origin RO
Operating voltage: 9.5 ~ 14 VDC
Audio outputs: 1 line output (100 Ω / 0.775V RMS, suitable for connection to audio pre-amplifier).
Weight: 0.420 kg
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Quiescent current: Max. 60 mA at 12 VDC (without satellites)
Operating current: Max. 75 mA at 12 VDC (without satellites)
Tamper contact: Front / back tamper switch
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Number of on-board zones: 4
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 106 × 141 × 42 (mm)
