SPCE651.100 Expander,8 In/2 Out, Analy.

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54542-F102-A100
  • 4025515470823
Tuotetiedot "SPCE651.100 Expander,8 In/2 Out, Analy."

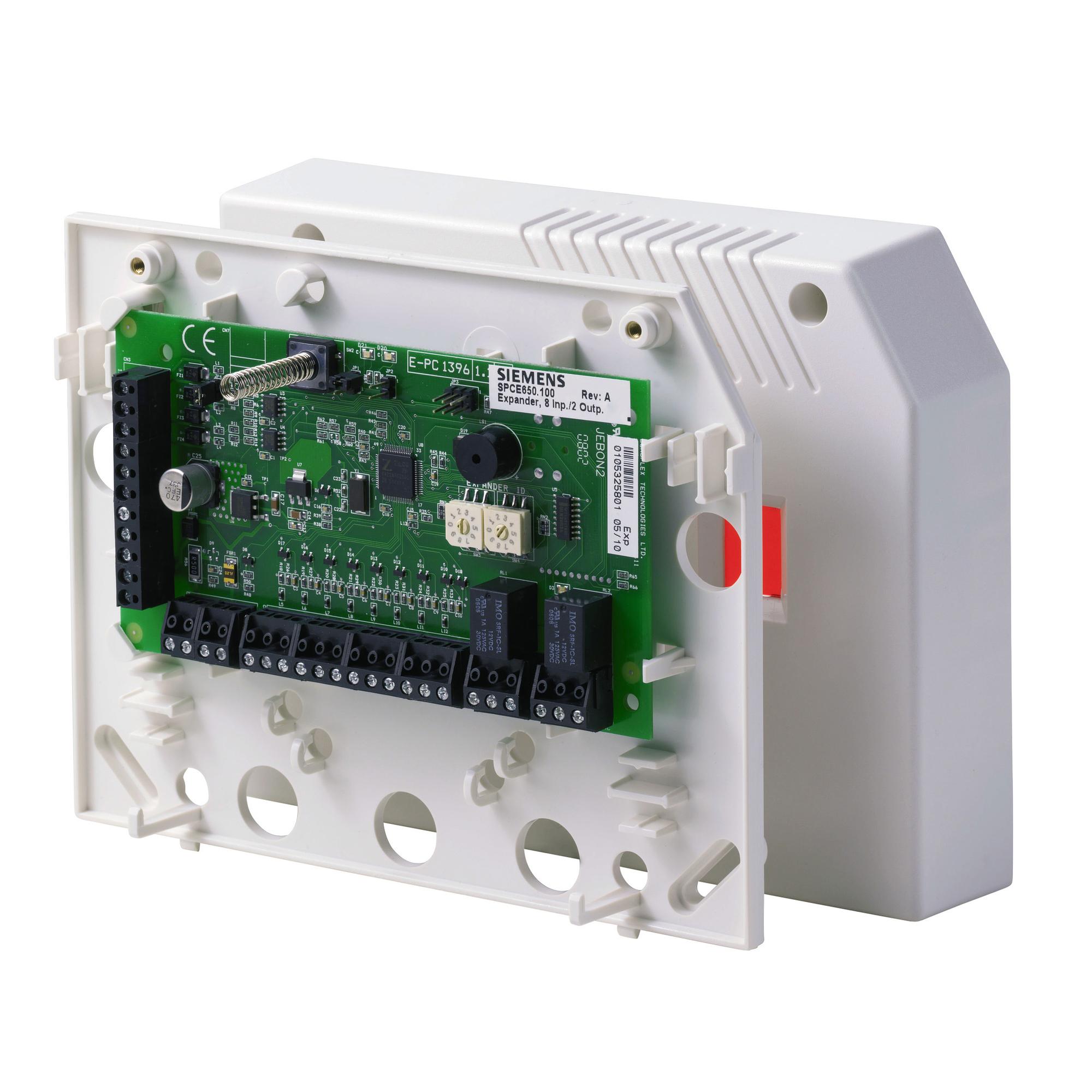

The SPCE651.100 expander extends the acre Intrusion system via X-BUS with 8 analysed zones and 2 fully programmable relay outputs. Analysed zones allow to connect inertia sensors. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Gross weight (KG) 0.48
Osta yksikkö PCE
EAN/UPC-Code: 4025515470823
Mindestabnahme 1
ECCN N
Material code V54542-F102-A100
Statistical code 85311030
Net weight 0.456
Country of origin PH
Operating temperature: -10 ~ +50 °C
Approval:
Weight: 0.350 kg
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Number of on-board zones: 8 (analysed)
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
Tamper contact: Front spring tamper
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 200 x 153 x 47 (mm) (housing),150 x 82 x 20 (mm) (PCB)
