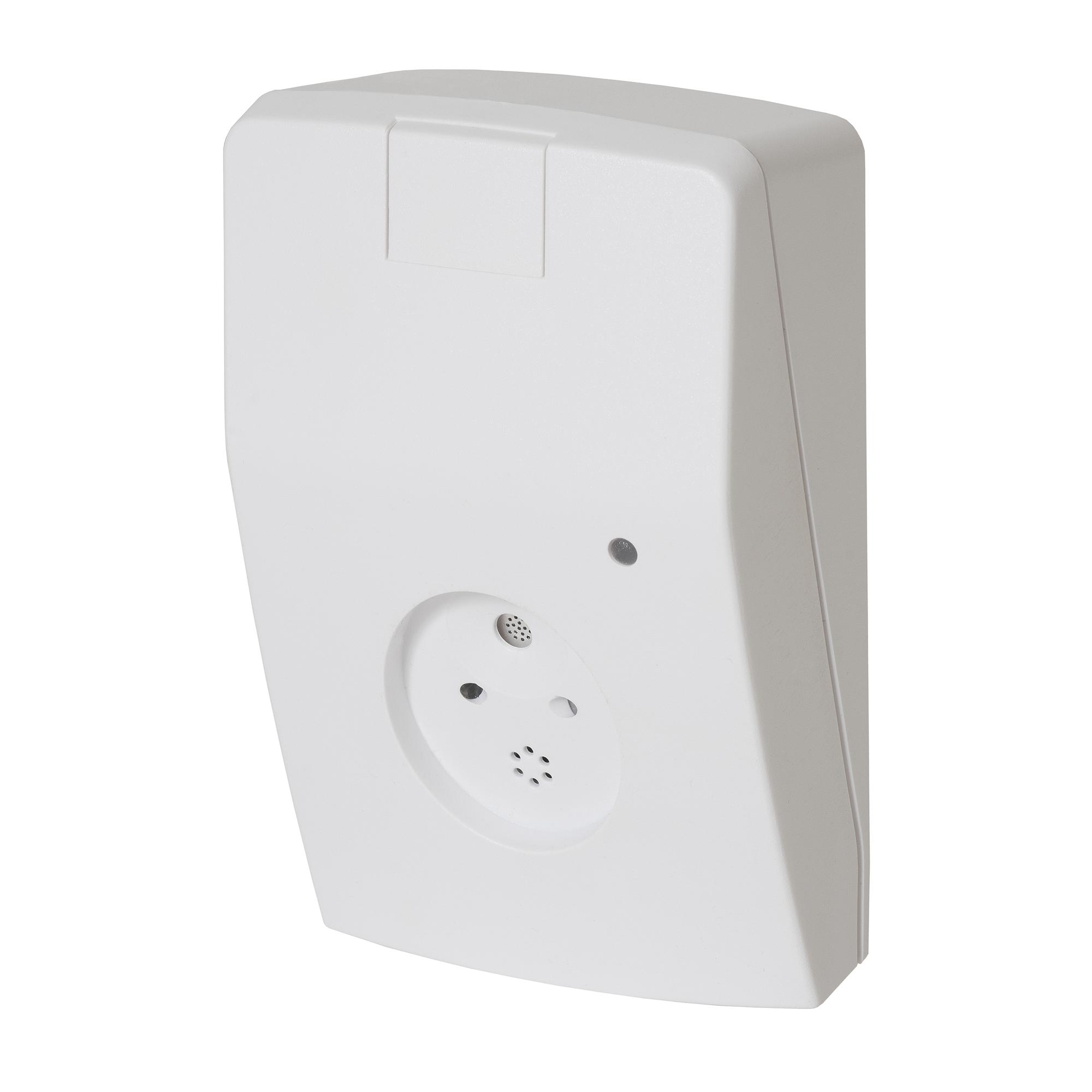

AGB800-AM Acoustic Glass Break G3

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54535-Z129-A100
  • 7330082004027
Tuotetiedot "AGB800-AM Acoustic Glass Break G3"
The AGB800-AM is a modern acoustic glass break detector, complete with anti-mask detection giving an alarm when glass is broken due to attempted intrusion through doors, windows and glazed walls. The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room Compensation feature enables the detector to distinguish between glass breaking and general background noise.
Gross weight (KG) 0.124
Osta yksikkö PCE
EAN/UPC-Code: 7330082004027
Mindestabnahme 1
Statistical code 85311030
Material code V54535-Z129-A100
Net weight 0.105
Country of origin PL
ECCN EAR99
Tamper contact: 50mA @ 50VDC
Dimensions (W x H x D): 69 x 110 x 39mm
Quiescent current: 12mA @ 12VDC 8mA @ 24VDC
Current consumption, quiescent: 12mA @ 12VDC 8mA @ 24VDC
Alarm outputs: 50mA @ 50VDC
Operating temperature: -25....+40ºC
Approval: EN50131-2-7-1 Grade 3 VdS Class B G117506
Current consumption: Alarm - 12mA @ 12VDC Alarm - 8mA @ 24VDC
Supply voltage: 7....30VDC
Tamper switch: 50mA @ 50VDC
Housing material: ABS plastic, white
Environmental class: Class 1
Weight: 0.126Kg
