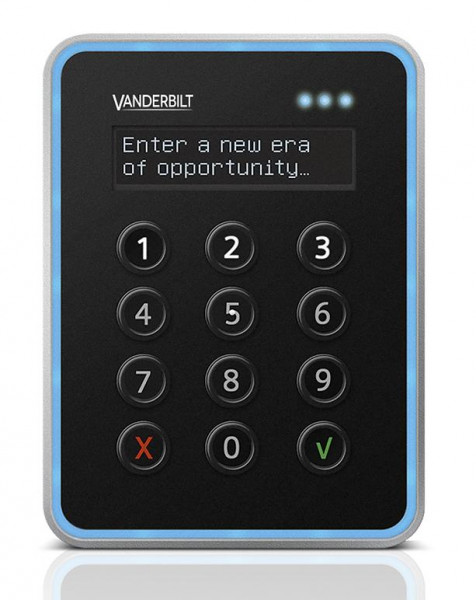

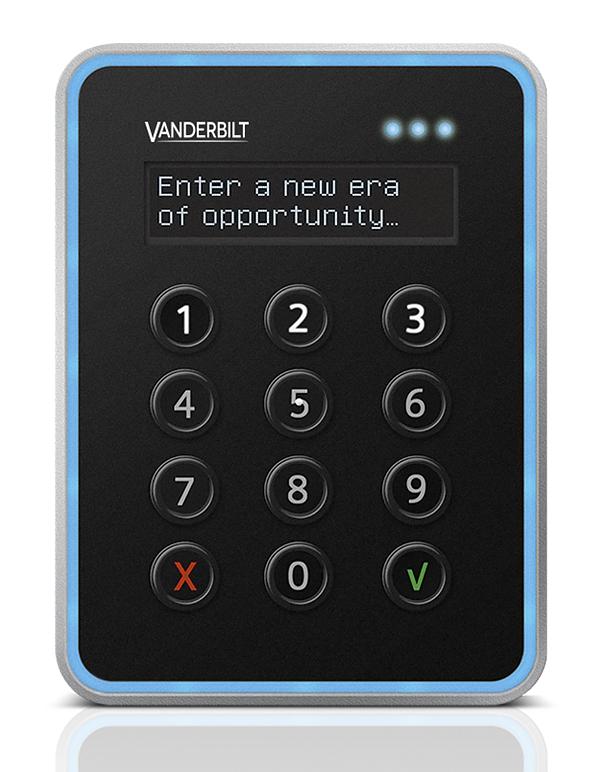

VR40S-MF NGCR MIFARE EV1 Reader +keypad

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54504-F102-A100
  • 4025515469841
Tuotetiedot "VR40S-MF NGCR MIFARE EV1 Reader +keypad"

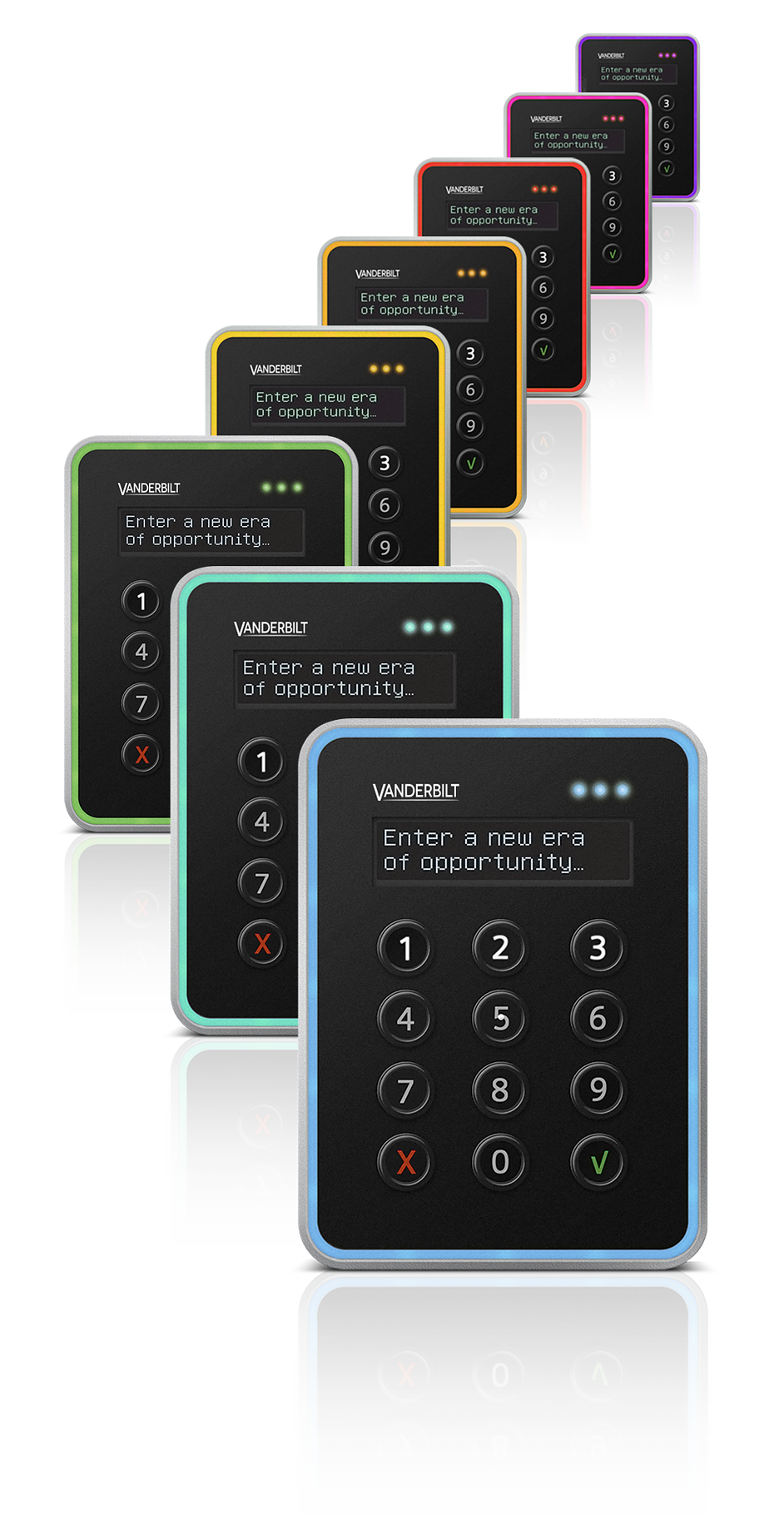

Designed for today’s bright, clean interiors, yet robust in service, the VR40S-MF is easy to install, use and maintain. The VR40S-MF has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options. It has a high quality backlight keypad with tactile feedback as well as a graphical OLED display to maximise user interaction with arming, access and recognition messaging etc., resulting in improved and enhanced user interaction “at the door”. Display brilliance is set automatically by an inbuilt light sensor.
Gross weight (KG) 0.65
Osta yksikkö PCE
EAN/UPC-Code: 4025515469841
Mindestabnahme 1
Statistical code 84719000
ECCN EAR99
Country of origin RO
Net weight 0.561
Material code V54504-F102-A100
Weight: 0.628kg
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Operation temperature: -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted)
Keypad: Yes
Display: Yes, graphic monochrome OLED
Current consumption: DC 12V: 60mA (Max: 220mA) DC 24V: 40mA (Max 125mA)
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Air humidity (EN 60721): 5-95% non-condensing
Housing protection: IP55 (surface mounted) IP3X (back box mounted)
Impact rating: IK08
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Power consumption: DC 12V = 60mA (220mA Peak); DC 24V = 40mA (125mA Peak)
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
Dimensions (W x H x D): Surface mounted: 85 x 114 x 22 (mm) ; Back box mounted: 85 x 114 x 14 (mm)
Environment: Indoor/outdoor use
Colour: Black, matt chrome
Card technology: MIFARE
Interface to controller: RS485 OSDP
Card read distance: Up to 6 cm
Tamper protection: Yes
Operating voltage: 8.5 ~ 30.0 VDC
