SPCP432.300 Smart PSU (7AH),2-door Exp.

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54545-C103-A100
  • 4025515471035
Tuotetiedot "SPCP432.300 Smart PSU (7AH),2-door Exp."

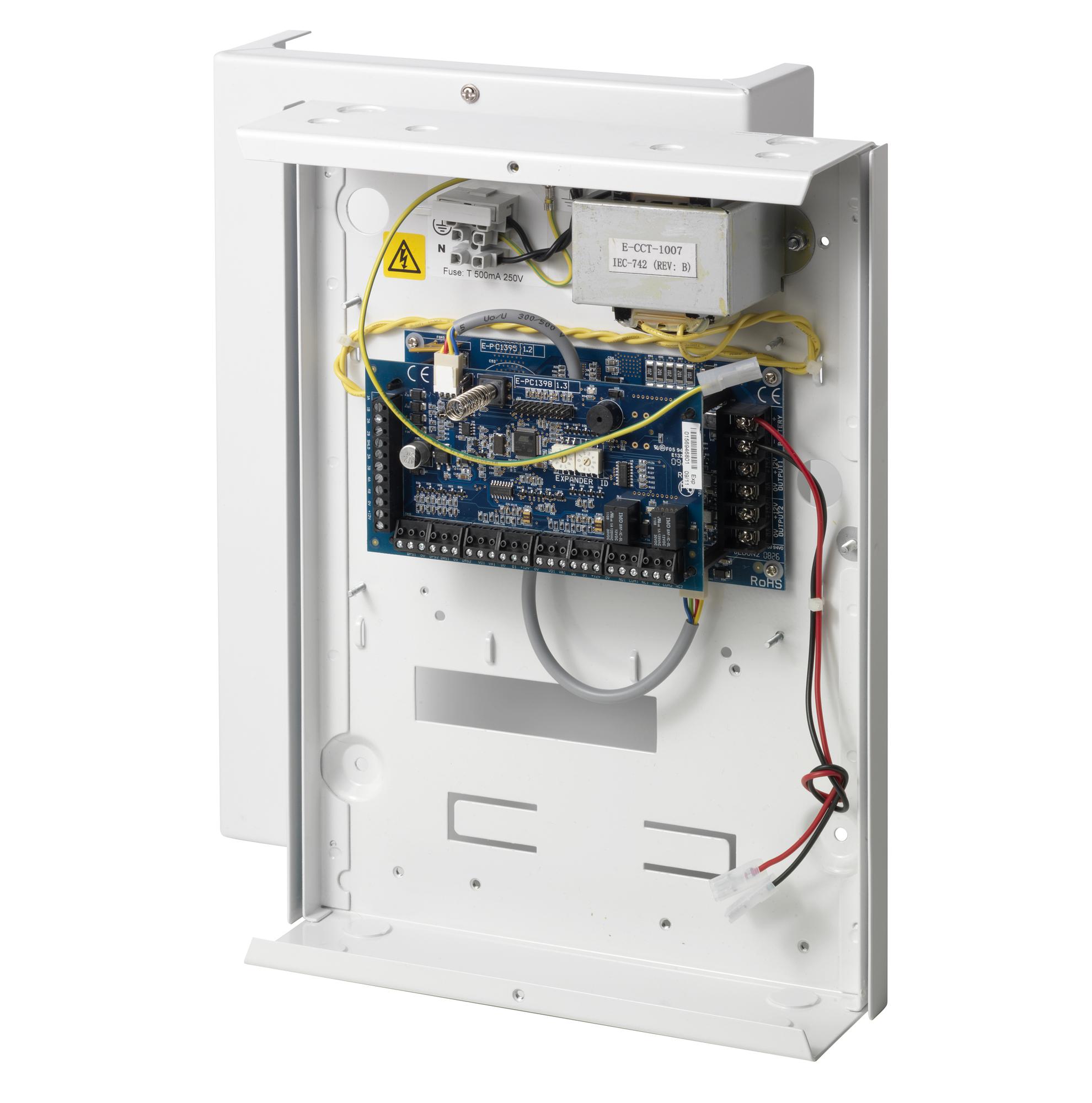

The SPCP432.300 smart power supply expander (PSU) extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders) and advanced door control functionality for 2 entry doors or 1 entry/exit door. The PSU comes in a tamper protected metal housing with space for an optional 7 Ah battery.
Gross weight (KG) 5.8
Osta yksikkö PCE
EAN/UPC-Code: 4025515471035
Mindestabnahme 1
ECCN N
Statistical code 85389099
Country of origin PH
Material code V54545-C103-A100
Net weight 5.510
Operating temperature: 0 ~ +40 °C
Weight: 4.700 kg
Output voltage: 11-14 VDC in normal conditions (mains powered and fully charged battery)
Power output: Max. 1500 mA bei 12 VDC (750 mA pro Ausgang)
Quiescent current: Max. 82 mA at 12 VDC
Operating current: Max. 124 mA at 12 VDC (all relays activated)
Tamper contact: Front spring tamper
Interfaces: X-BUS (in, out, branch), Reader 1, Reader 2
LED Indicators: 4 outputs (1 void and 1 valid per reader)
Number of on-board relays: 2, for door locks or freely programmable (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 4, for door release switch (DRS) and door position switch (DPS), or freely programmable
Housing: Small metal housing (1.2 mm mild steel)
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Colour: RAL 9003 (signal white)
Dimensions (W x H x D): 264 x 357 x 81 (mm)
