PSU120417 12V PSU 4.0A SPACE 17Ah BATS

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54545-Z164-A100
Tuotetiedot "PSU120417 12V PSU 4.0A SPACE 17Ah BATS"

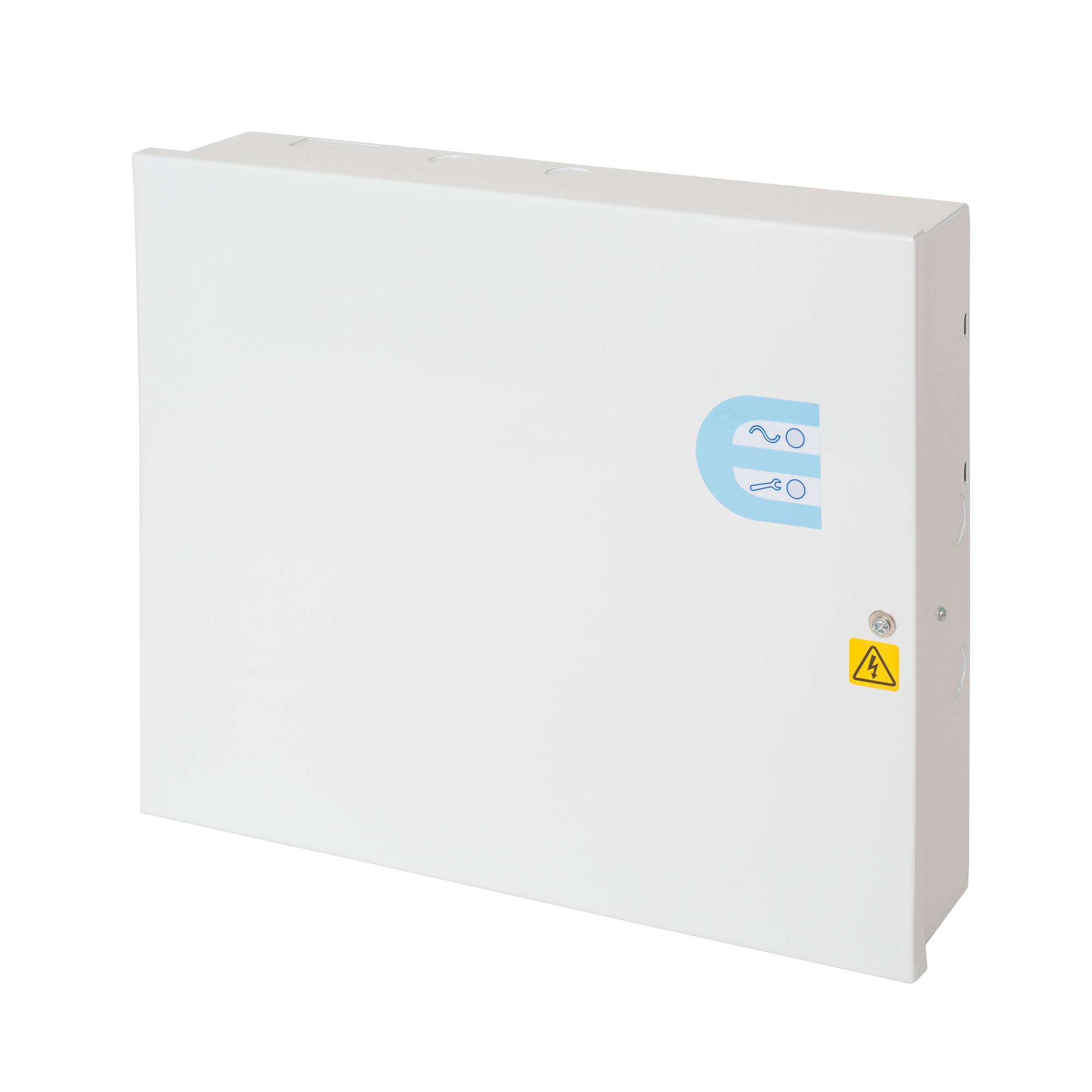

The PSU120417 is a self contained switch mode 12v 4.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection and space for a 17Ah sealed lead acid battery. Housed in a mild steel enclosure with space for various interface cards.
Gross weight (KG) 3.43
Osta yksikkö PCE
Mindestabnahme 1
ECCN N
Material code N54545-Z164-A100
Statistical code 85044060
Country of origin GB
Net weight 3.270
Operating temperature: -10°C ~ +40°C, 95% RH
Dimensions (W x H x D): 180 x 335 x 80 (mm)
Weight (without battery): 3.43Kg (Gross) / 3.27Kg (Nett)
Output voltage: 12v DC

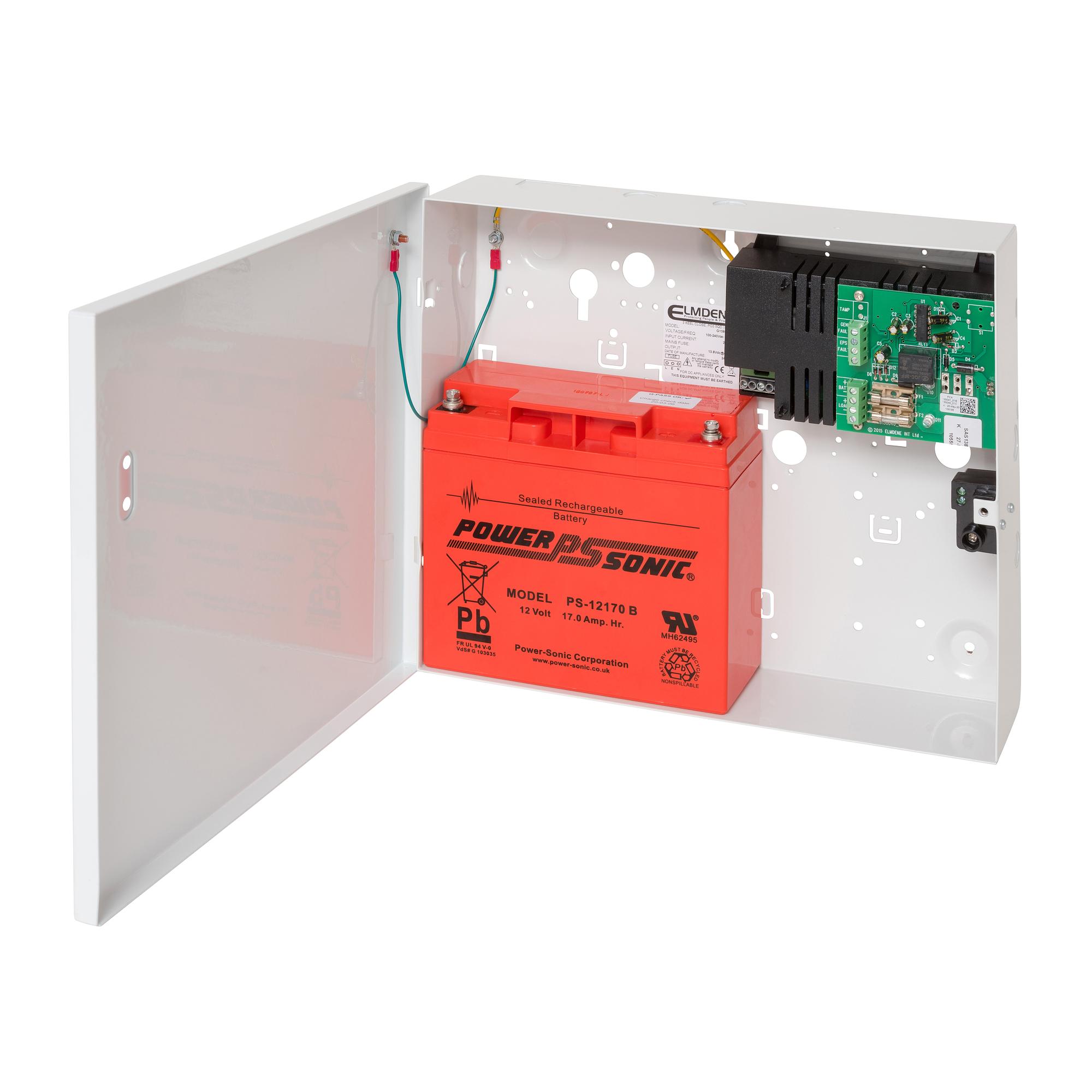

Battery: 1 x 12v 17Ah Max Capacity
Material: 1.2mm mild steel
LED Indicators: External
Installation: Internal
Input voltage: 100-240vAC
Storage temperature: -20°C ~ +80°C
