PSU12121.007 (GEN2-08-C) 12V G2 PSU

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54545-Z163-A100
Tuotetiedot "PSU12121.007 (GEN2-08-C) 12V G2 PSU"

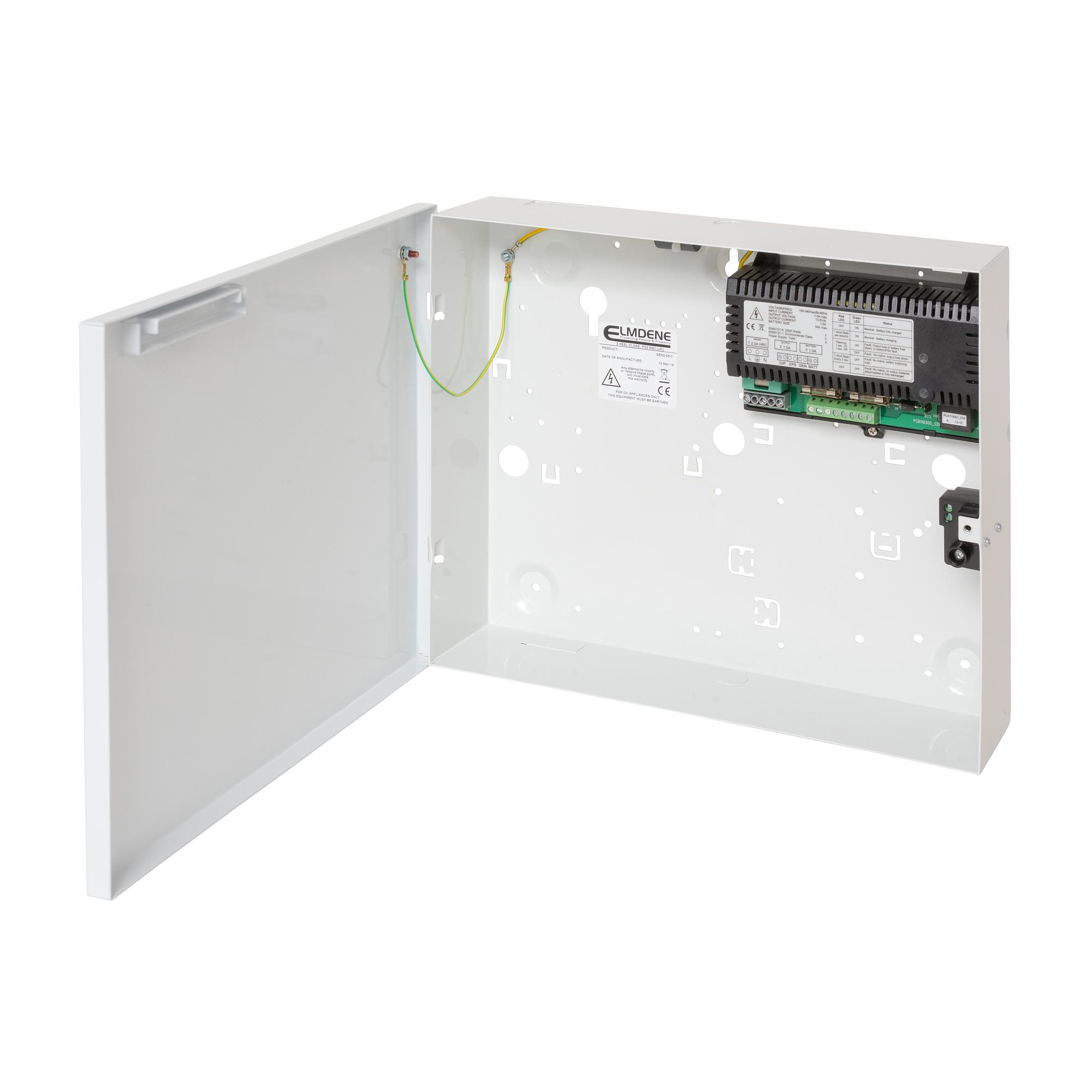

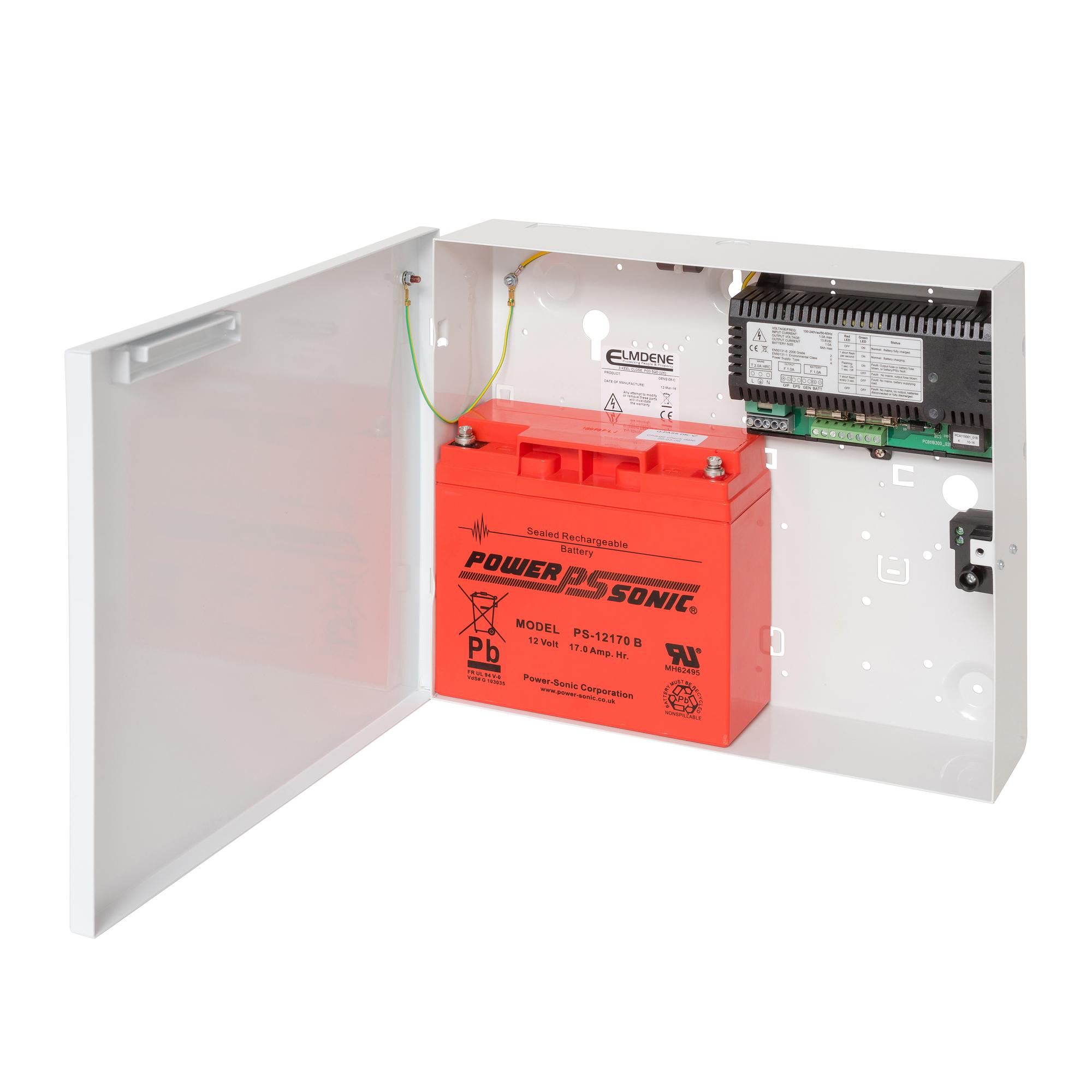

The PSU12121.007 is a self contained switch mode 12v 1.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, internal LED's for fault diagnosis, tamper protection and space for a 17Ah sealed lead acid battery. Note 7.0Ah must be used to maintain the certification. Housed in a mild steel enclosure with space for various interface cards. EN50131-6: 2008 certified.
Gross weight (KG) 3.56
Osta yksikkö PCE
Mindestabnahme 1
ECCN N
Material code N54545-Z163-A100
Statistical code 85044060
Country of origin CN
Net weight 3.060
Storage temperature: -20°C ~ +80°C
Dimensions (W x H x D): 180 x 335 x 80 (mm)
Weight (without battery): 3.56Kg (Gross) / 3.06Kg (Nett)
Output voltage: 12v DC
LED Indicators: Internal
Battery: 1 x 12v 17Ah Max Capacity
Material: 1.2mm mild steel
Installation: Internal
Input voltage: 100-240vAC
Operating temperature: 10°C ~ +40°C, 75% RH
