KPB01 Junction Bridge

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54592-Z150-A100
  • 7330082007530
Tuotetiedot "KPB01 Junction Bridge"

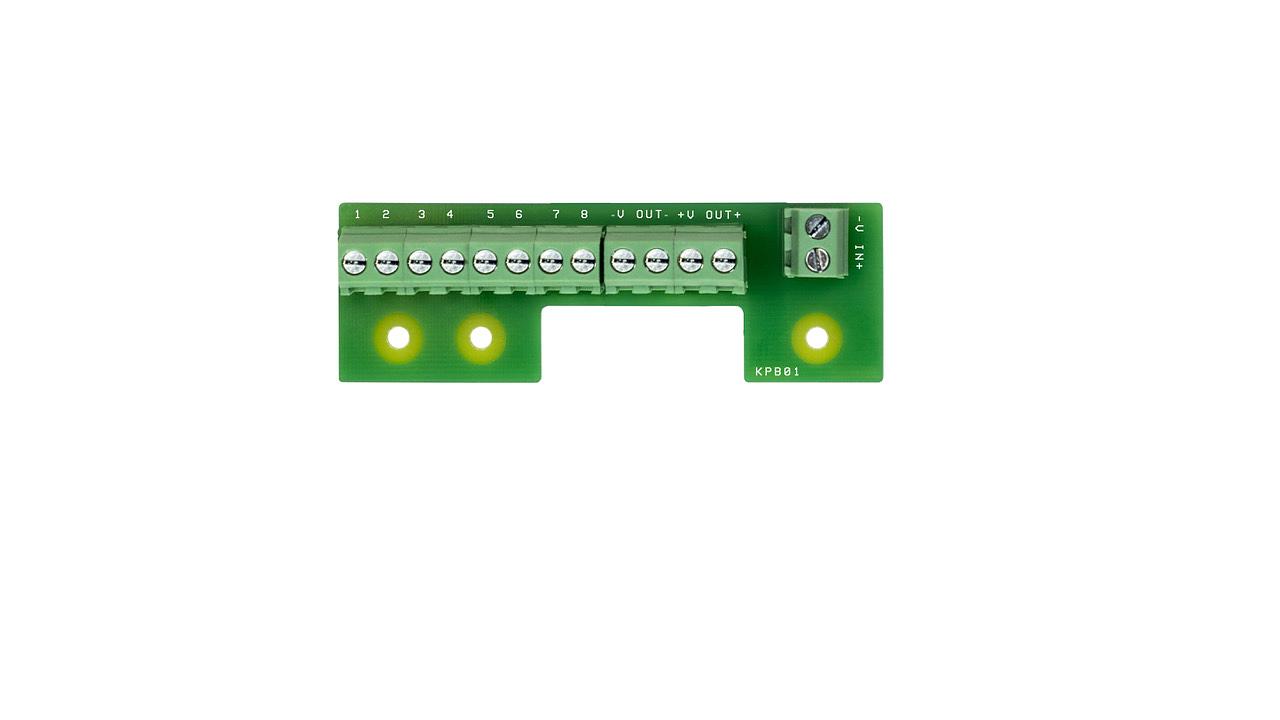

Junction bridge intended for installation inside existing enclosures. Provides a 1:2 branching of voltage supply, and 8 free terminals. Compatible with Omnis and SiPass Integrated.
Gross weight (KG) 0.029
Osta yksikkö PCE
EAN/UPC-Code: 7330082007530
Mindestabnahme 1
ECCN N
Net weight 0.027
Material code N54592-Z150-A100
Statistical code 85319000
Country of origin PL
Power output: Max. 57V
Outputs: 2 Voltage Outputs & one 8-pole terminal block.
Inputs: 1 Voltage Input
Weight: 20 grams

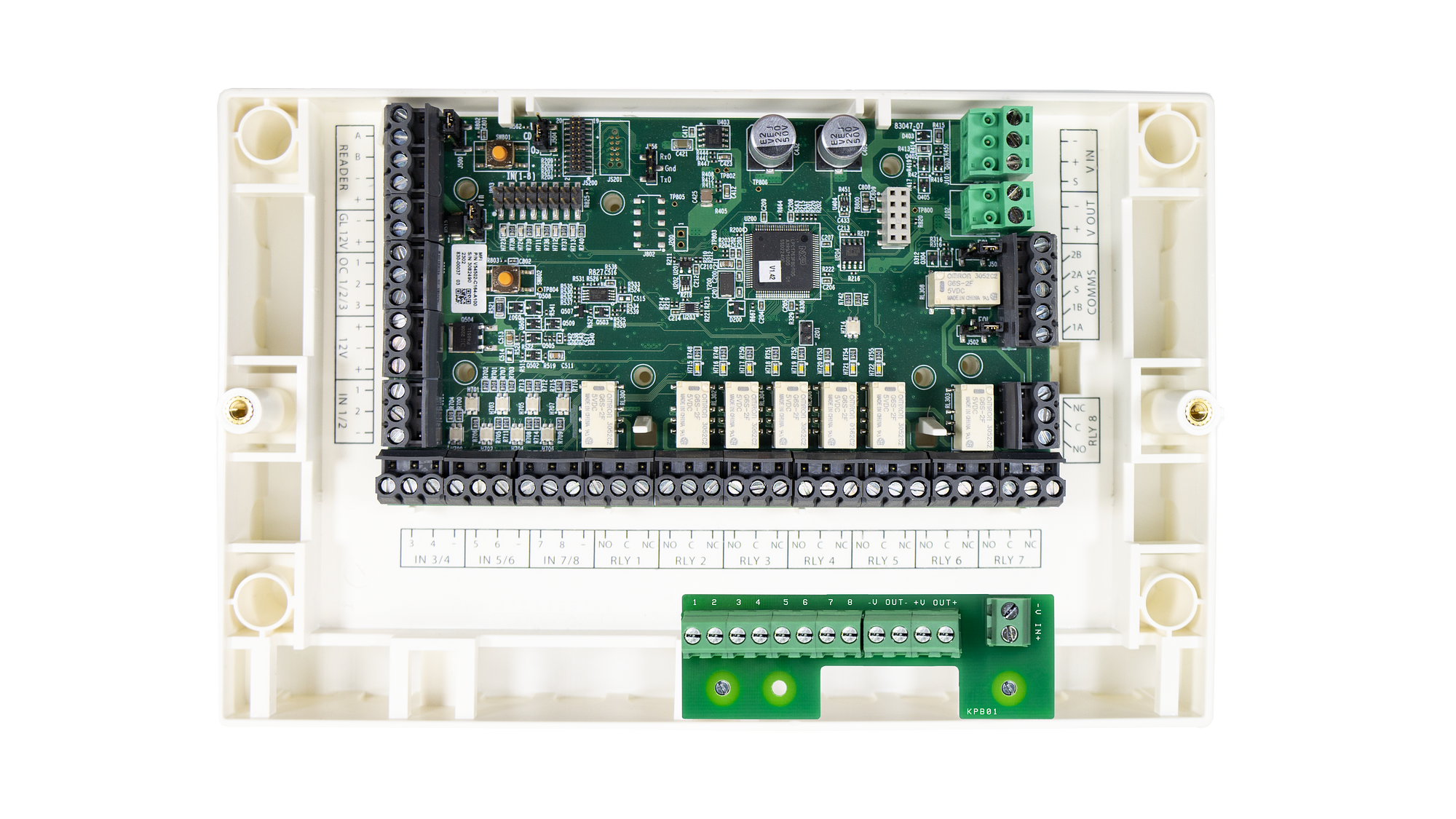

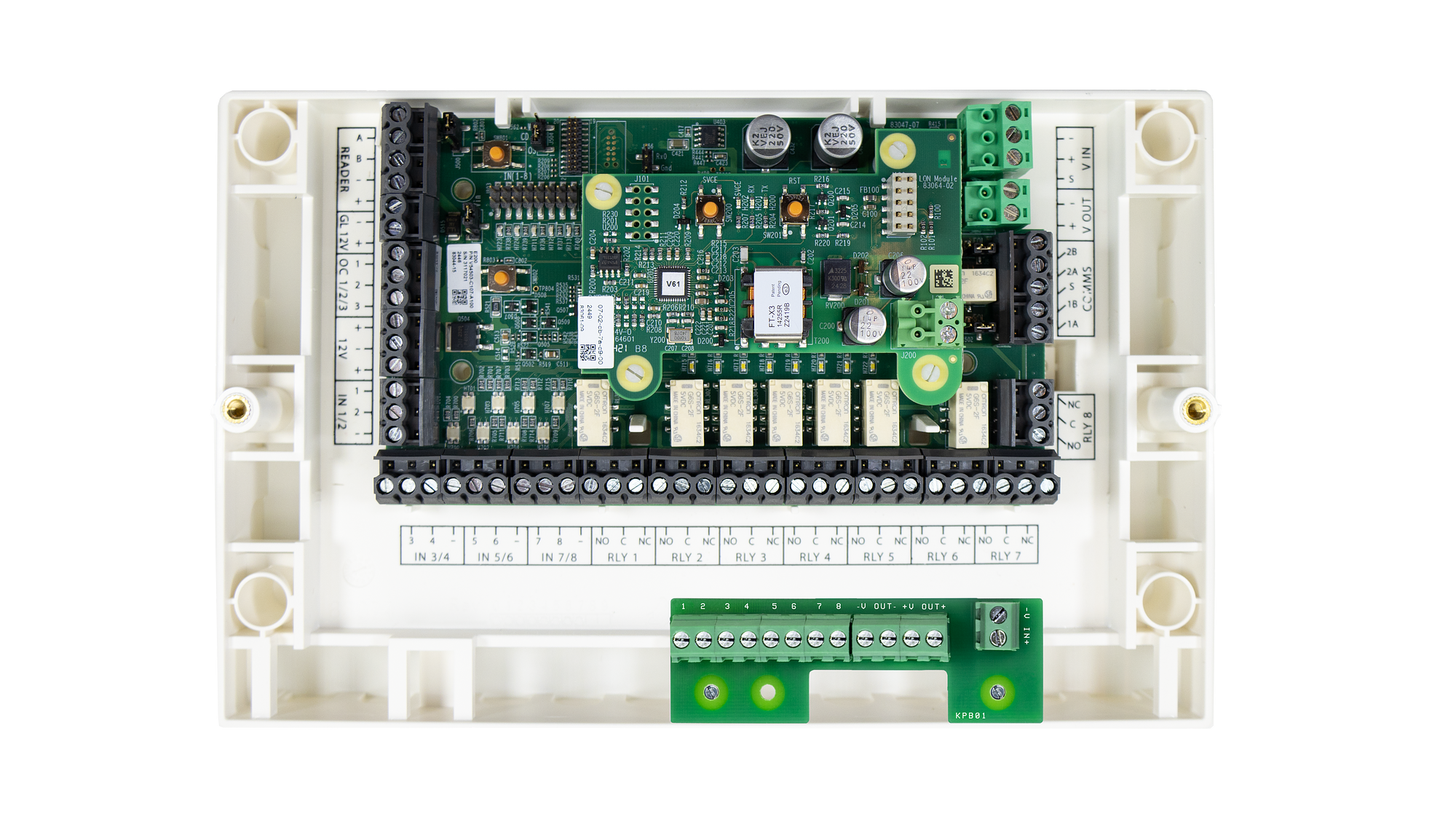

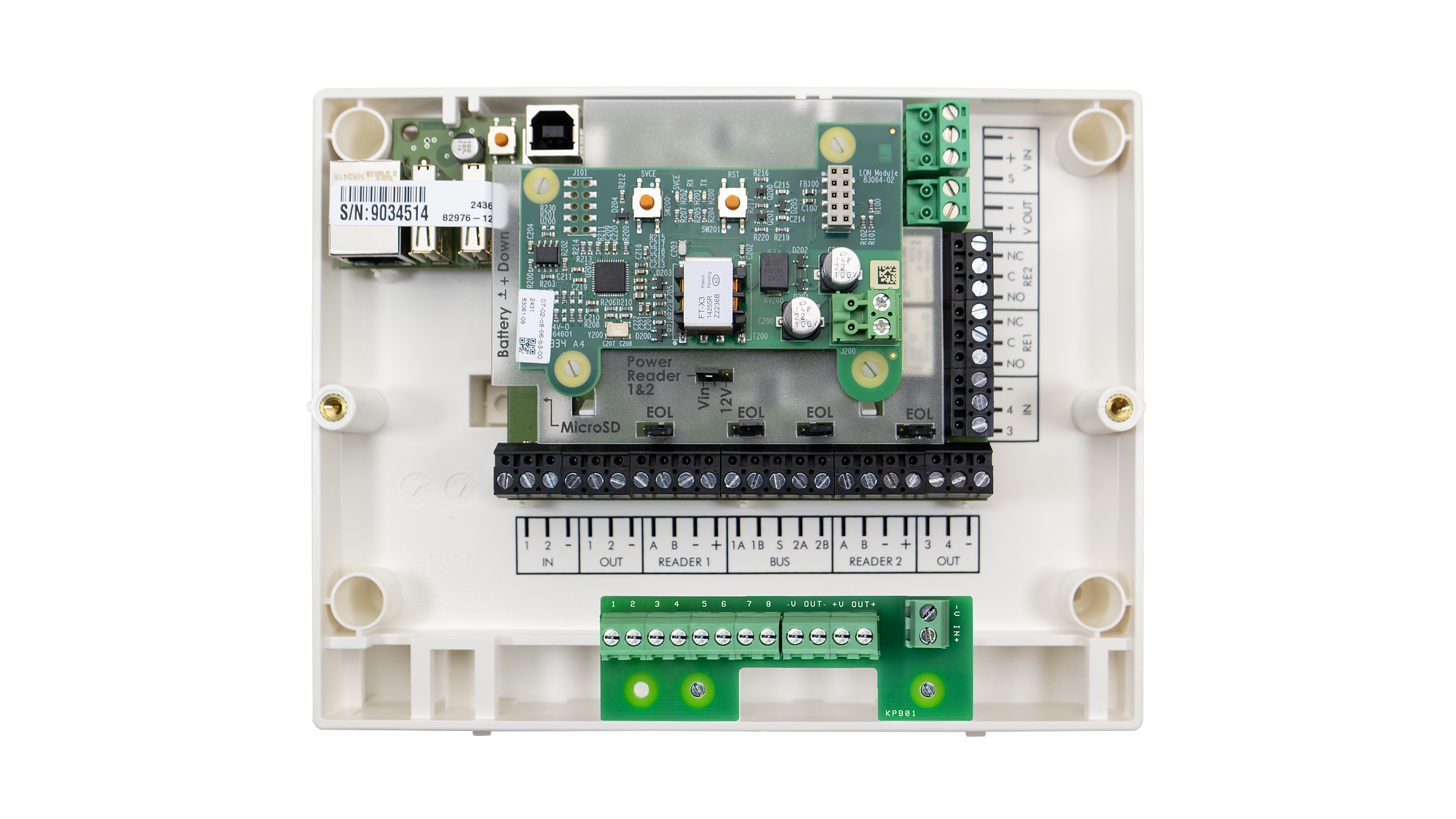

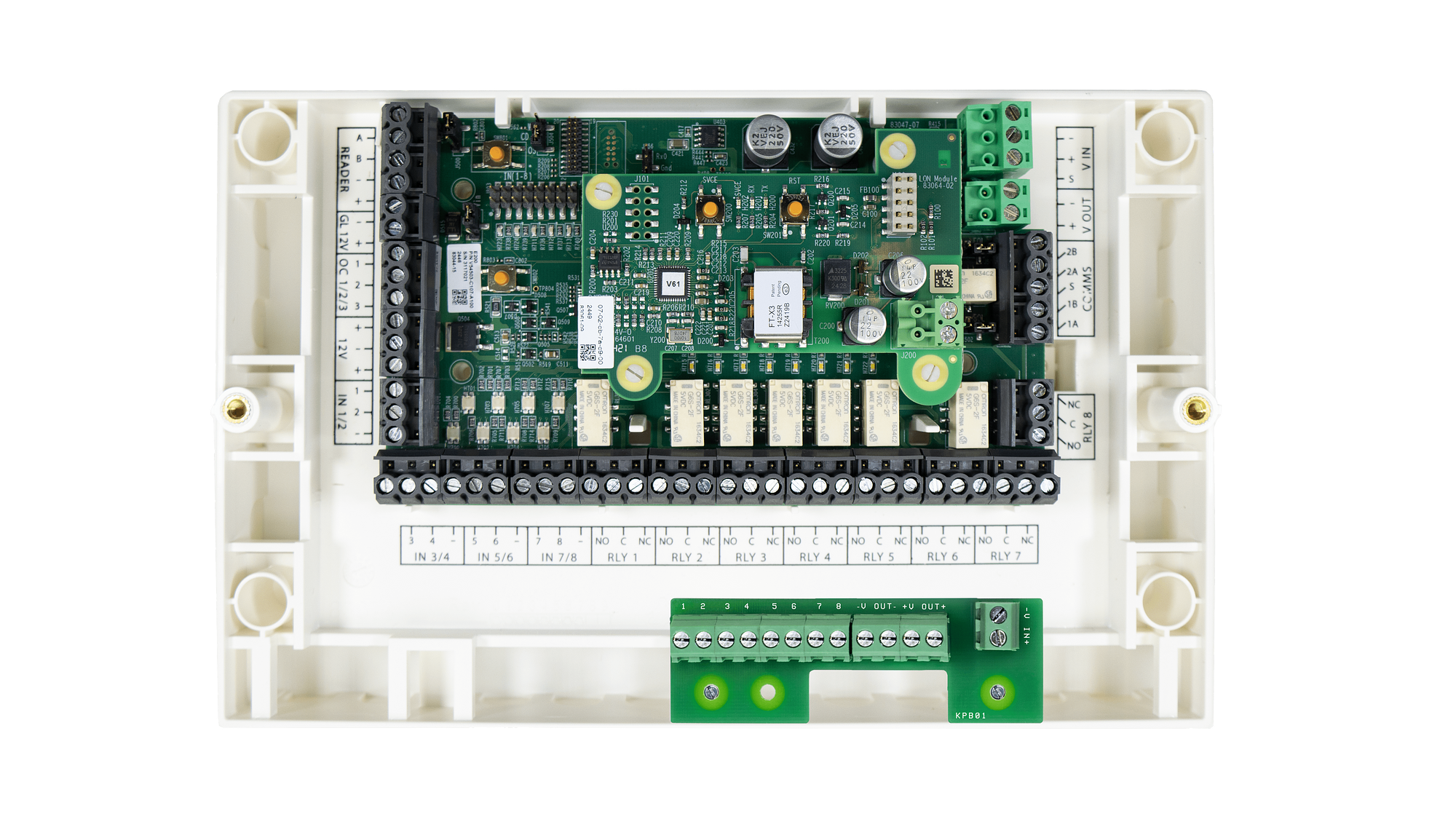

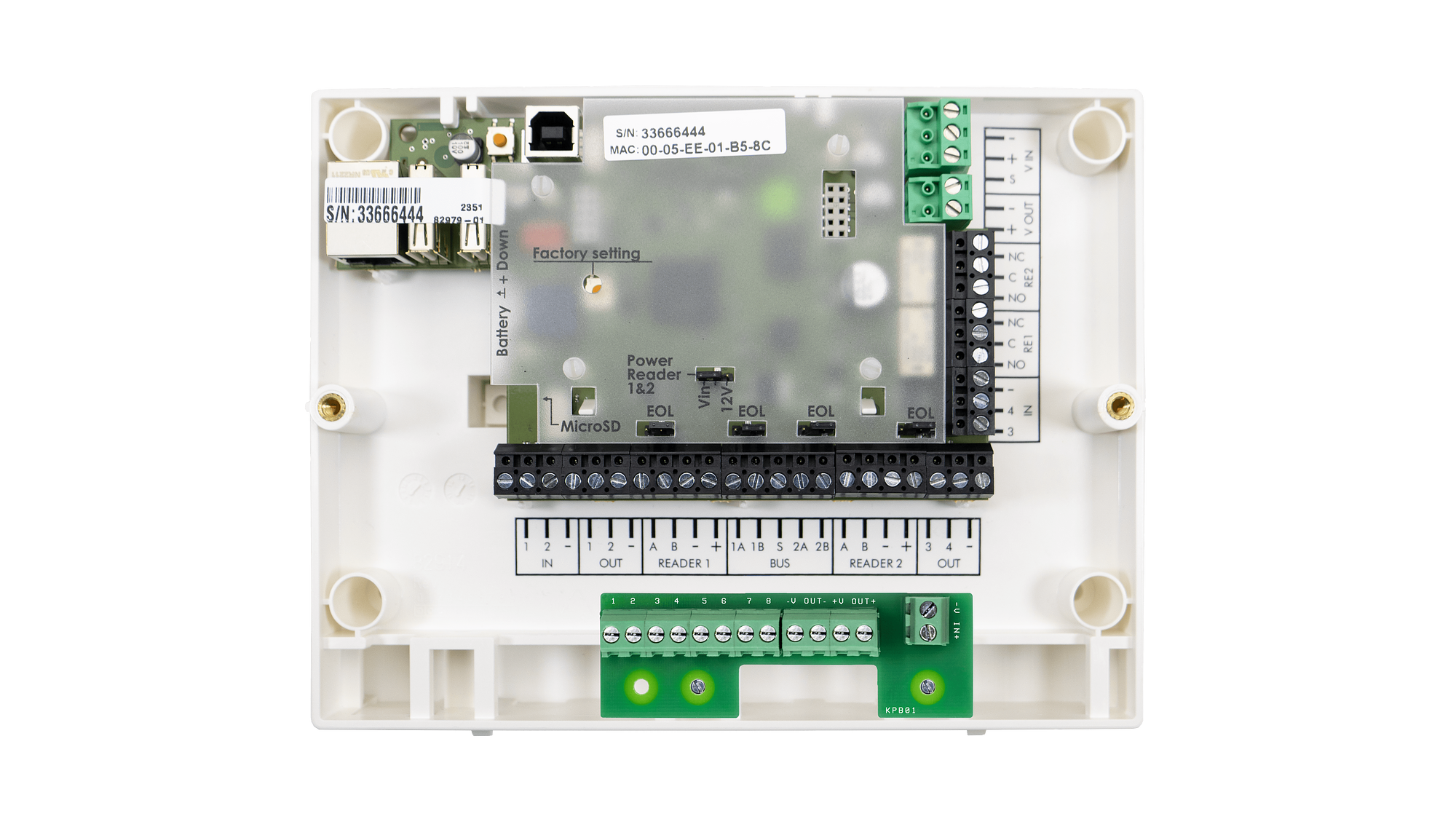

Installation: Inside compatible enclosures. Omnis E100, E200, E500. SiPass Integrated ACC-AP, ACC-APM1220, ACC-APM2420, MFI
Dimensions (W x H x D): 86 x 28 x 23 mm
Current consumption: maximum: 2A @ 24V DC
Colour: Green
Tamper contact: No. Intended for mounting inside tamper-protected enclosures.
