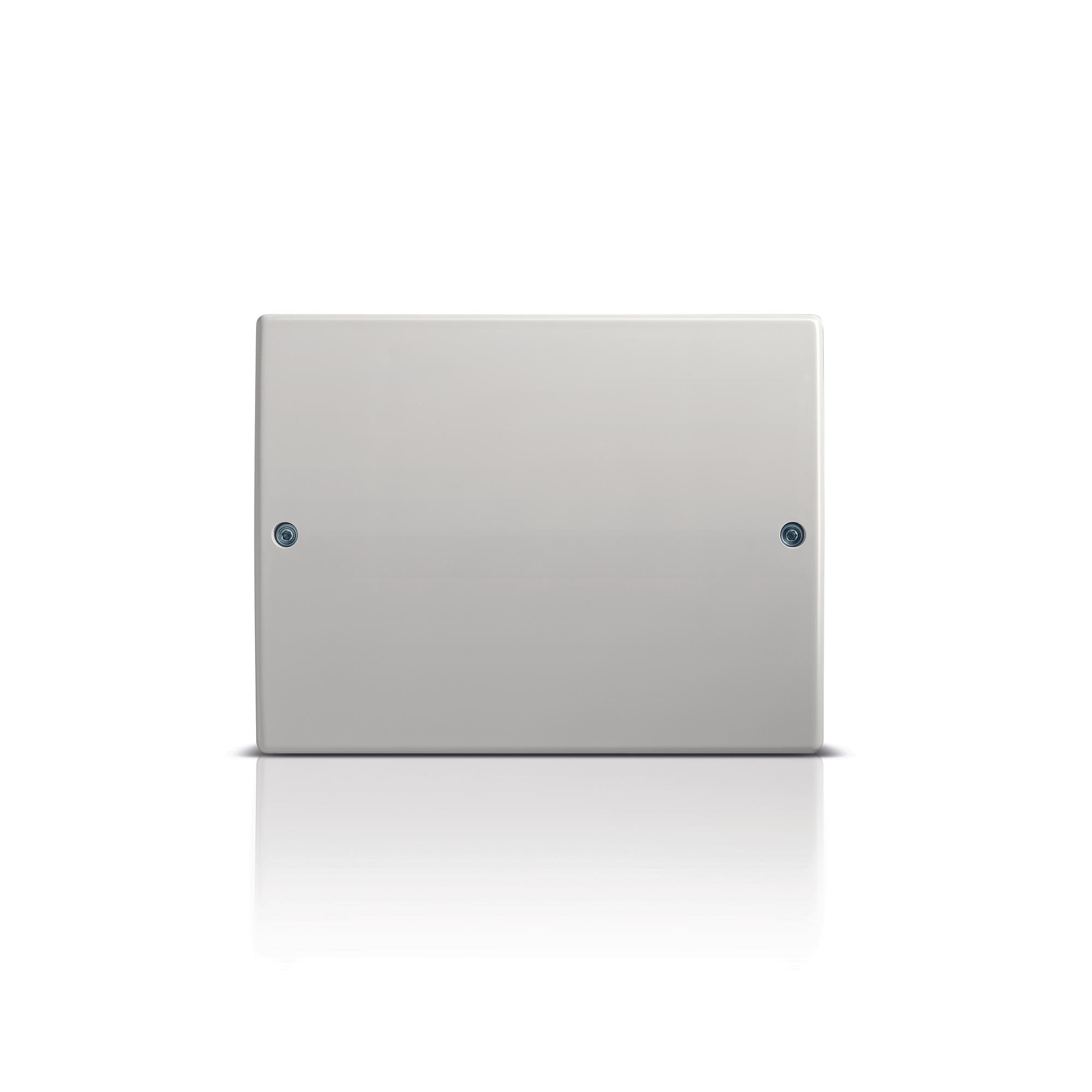

ACC-AP SiPass integrated IP Door Contr.

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54502-C160-A100
  • 7330082004805
Tuotetiedot "ACC-AP SiPass integrated IP Door Contr."
The ACC-AP IP Door Controller is used for controlling up to two doors as part of the SiPass integrated Access Control system. The controller can be configured for 1 or 2 doors and can be programmed with up to 500‚000 cardholders. The ACC-AP offers the ability to connect four OSDP readers to be used for entry or exit and can be placed in different heights to accommodate for instance wheelchairs or garage barriers. The ACC-AP has 4 inputs, 2 relay outputs and 4 open-collector outputs. The inputs and outputs are user configurable to meet a majority of use cases. This controller is also capable of supporting FLN devices and of hosting units such as the 8IO, OPM and IPM.
Gross weight (KG) 0.626
Osta yksikkö PCE
EAN/UPC-Code: 7330082004805
Mindestabnahme 1
Country of origin SE
Material code V54502-C160-A100
Net weight 0.626
Statistical code 84715000
ECCN EAR99
Power consumption: Without reader Idle: 12V DC: 200 mA 24V DC: 125 mA Full on without readers 12V DC: 600mA 24V DC: 400 mA
PSU6 PSU6
MULTI-ACC-UL-PSU6
SiPass SUR SiPass SUR
6FL7820-8AA30-1L
