AFO5200 8-Input/Output Module

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V24246-A2600-A1
  • 4025515475323
Tuotetiedot "AFO5200 8-Input/Output Module"

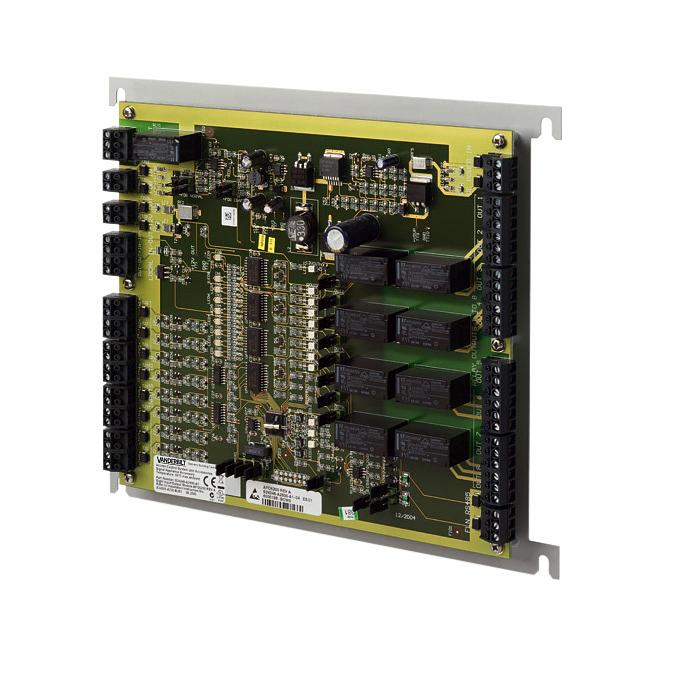

The AFO5200 is an advanced‚ multi-purpose module that provides an interface between field-level input devices (such as passive infrared detectors) and output devices (such as locking devices) to the advanced central controller (AC5100‚ AC5102 or AC5200).
Gross weight (KG) 1.1
Osta yksikkö PCE
EAN/UPC-Code: 4025515475323
Mindestabnahme 1
Country of origin HU
Material code V24246-A2600-A1
Net weight 1.045
Statistical code 84733020
ECCN EAR99
Dimensions (W x H x D): 250 x 210 x 40 mm
Weight: 1 kg
Operating temperature: 0 to +50 °C (32 to 122 °F)
Indicators: Power, Activity, Communication Inputs, Output Peripheral supplies Fire override
Outputs: 8 x Relays (30 VDC, 2 A) 1 x Local output (open-collector 9.7-12 VDC, 100 mA) 1 x Fire override relays (30 VDC, 2 A)
Inputs: 8 x Isolated (internally supplied, unsupervised or supervised) 1 x Local input 1 x Fire override (potential-free or internally supplied)
Approval: CE, UL294, C-Tick
Current consumption: Max. 2 A at 12 V, max. 1.5 A at 24 V
Operating voltage: 12 VDC ±10% or 24 VDC ±10%
Interface: To controller: RS485
Interfaces: Al controllore: RS485
Firmware: Flash upgradeable
