IR261 PIR motion detector

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • VBPZ:5667770001
  • 4025515475668
Tuotetiedot "IR261 PIR motion detector"

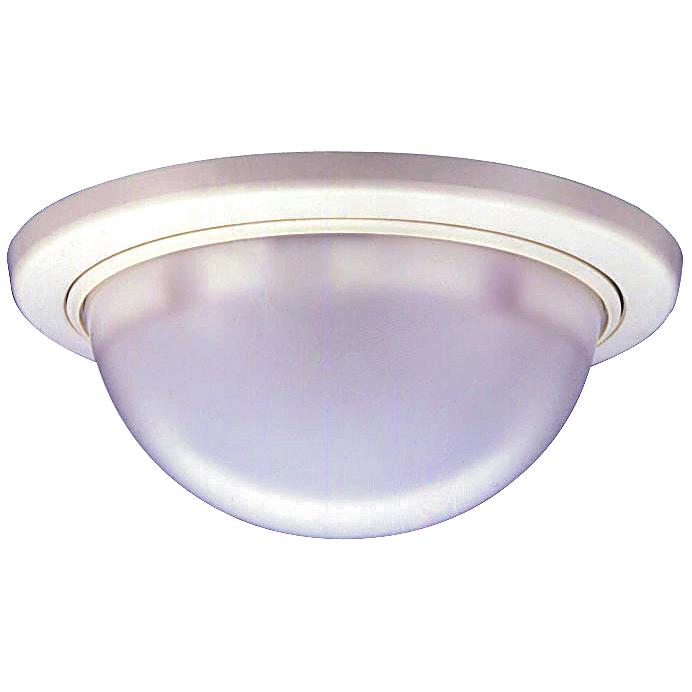

A ceiling-mounted passive infrared detector providing 360 degrees of protection. The compact design; complete with neutral colours provides unobtrusive and flexible detection for most internal applications. Flexible and simple set up options provide increased coverage with reliable detection.
Gross weight (KG) 0.2
Osta yksikkö PCE
EAN/UPC-Code: 4025515475668
Mindestabnahme 1
Statistical code 85318070
Material code VBPZ:5667770001
Net weight 0.190
Country of origin VN
ECCN EAR99
Supply voltage: 10.5 à 18 Vcc
Power requirements: 10 ~ 18 VDC
Weight: 0.130 kg
Operating temperature: 15 … + 55 º C
Housing protection: IP41
Alarm relay output (NO/NC): Link selectable
Sensitivity adjustment: 4 levels (1 - 4 triggers) before alarm Link selectable
Range: 18 m diameter
Current consumption: <25 mA max quiescent <35 mA max alarm LED
