PDM-I12T(50) PIR AM detector (50pcs)

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • L54543-F105-A100
Tuotetiedot "PDM-I12T(50) PIR AM detector (50pcs)"

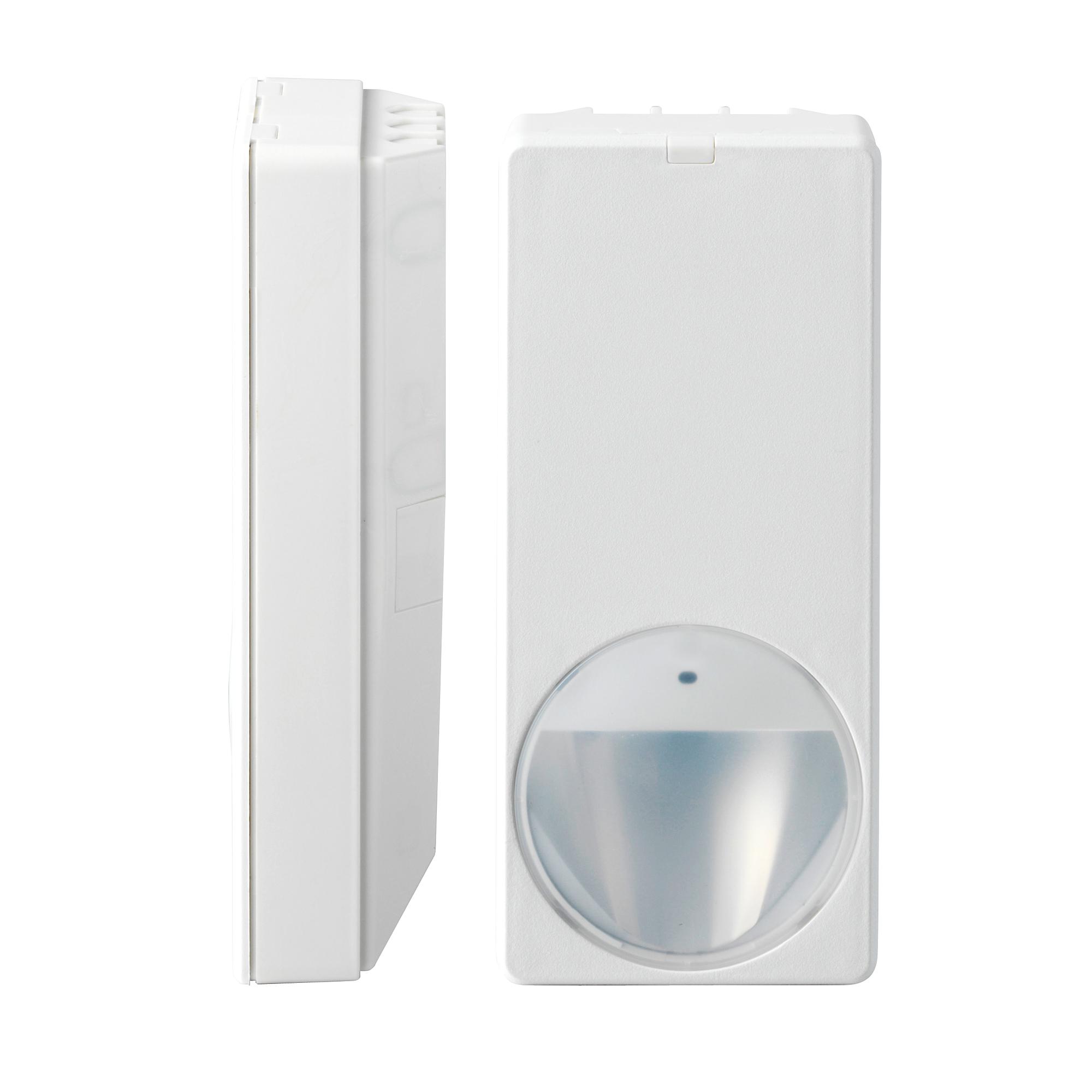

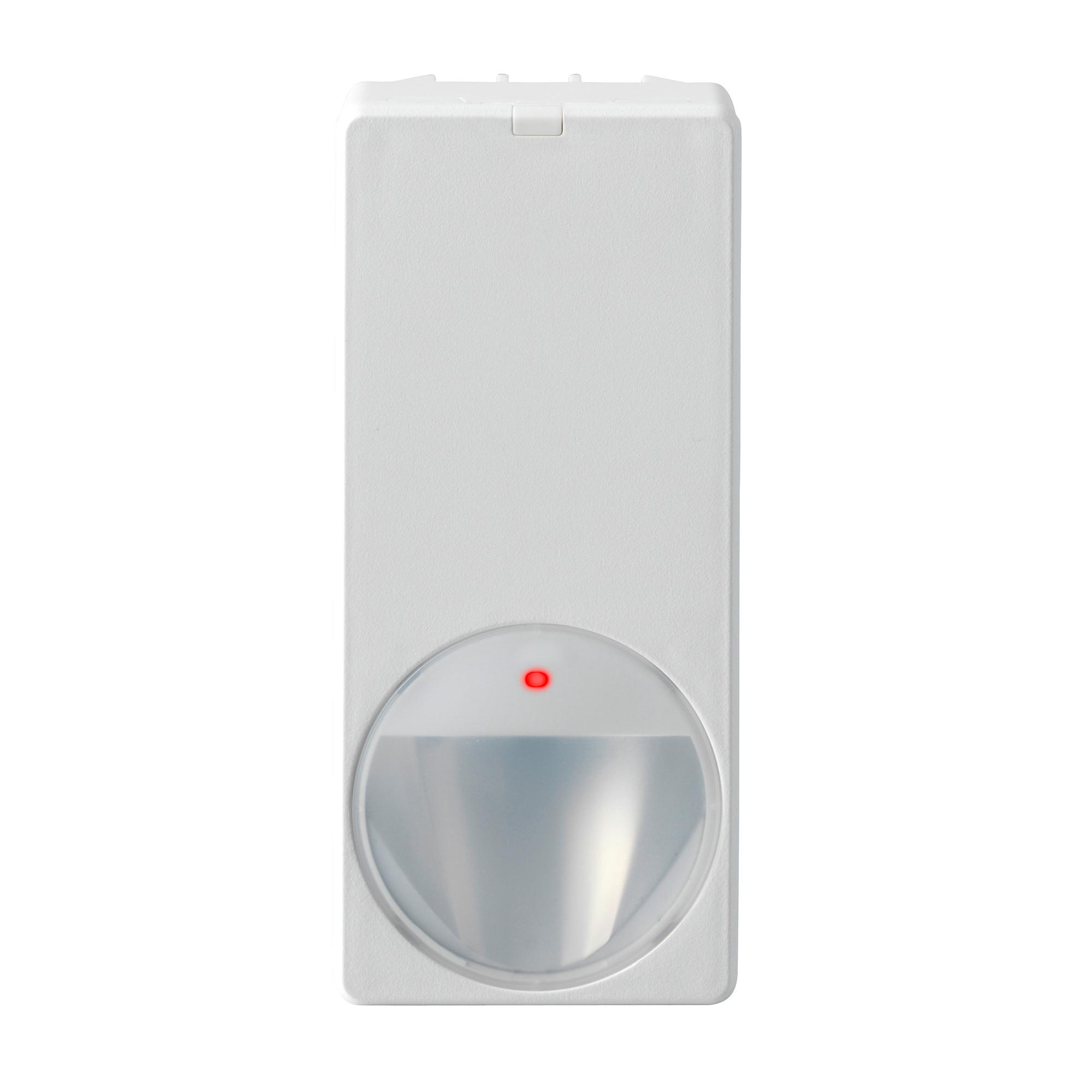

Product information "PDM-I12T PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.1
Osta yksikkö
Mindestabnahme 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.100
Material code L54543-F105-A100
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Colour: RAL9003
Current consumption: 3.9mA (rms) 6.6mA (max peak)
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature: -10° ~ +55°C
Outputs: 30VDC / 100mA, NC
Sensitivity evaluation mode: 4 settings
Storage temperature: -20°C ~ +60°C
Supply voltage: 9 ~ 16VDC (12V nom.)
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Walking speed: 0.1 ~ 4m/s
Weight: 0.095kg
Dimensions (L x W x H): 57 x 128 x 32 (mm)
Housing protection: IP41 / IK02
Approval: EN50131-2-2 Grade 3 VdS Class C
Air humidity (EN 60721): < 85% RH, non-condensing
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Range: Volumetric / 12m
