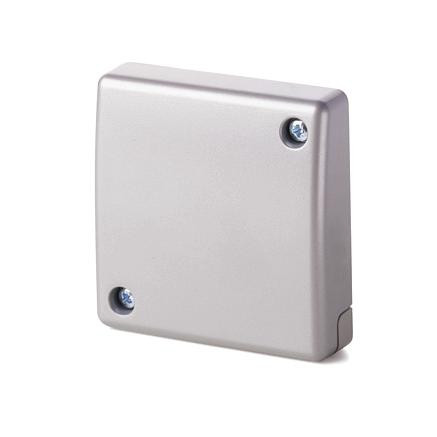

GM730 Seismic detector

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54534-F107-A100
  • 4025515469636
Tuotetiedot "GM730 Seismic detector"
The GM730 seismic detector offers an outstanding price/performance ratio with advanced functionality for the use in safes, ATMs, ticket machines, night deposit boxes, vaults and strongrooms. It is perfectly suited for protecting valuables repositories made of concrete and steel. Intelligent signal processing enables the level of detection sensitivity to be custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector, and the anti-tamper on the back of the detector will detect forcible removal. Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high concentration of valuable assets or dangerous goods. All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that environmental disturbances are ignored, and false alarms eliminated.
Gross weight (KG) 0.26
Osta yksikkö PCE
EAN/UPC-Code: 4025515469636
Mindestabnahme 1
Statistical code 85311030
Material code V54534-F107-A100
ECCN EAR99
Net weight 0.247
Country of origin HU
Operating temperature: -40°C ~ +70°C
Dimensions (W x H x D): 89 x 89 x 22 (mm)
Current consumption: 2.5 mA (rms) 3.5 mA (max. peak)
Weight: 0.285 kg
Approval: VdS, UL, CCC, RCM, CNPP, IMQ, INCERT, REQ, F&P, NBÚ, VSÖ, SBSC, PIE, MABISZ, BSI, PD6662
DIP switch settings: 3 fixed DIP settings
Alarm output relay: Opens on alarm, 30 VDC / 100 mA
Power supply: 8 - 16 VDC (12 V nominal)
Housing protection (EN 60529): IP43
Range: 4 m / 50 m² (Concrete)/ 2 m / 12 m² steel
