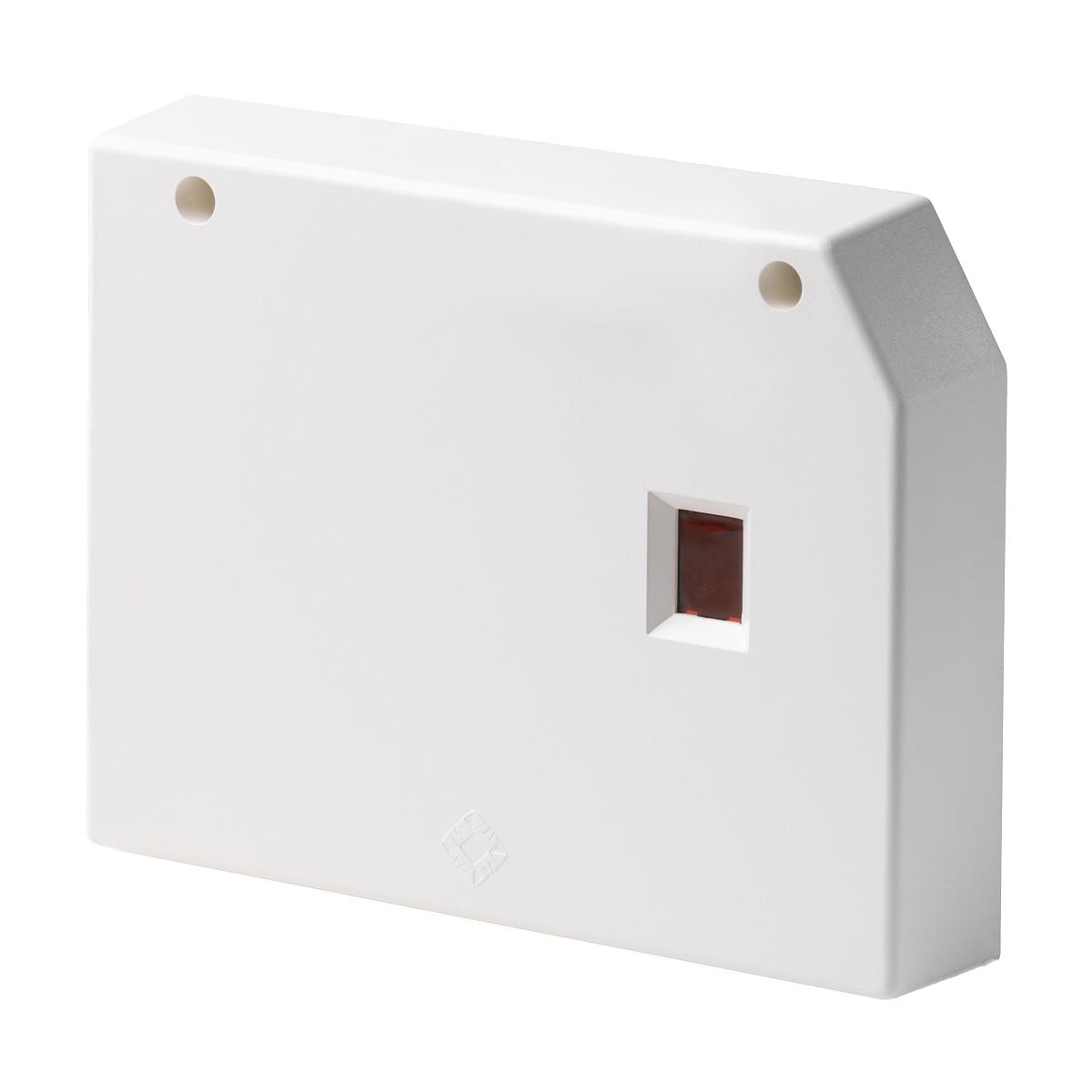

SPCA210.100 2-Door expander

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54547-A101-A100
  • 4025515471189
Tuotetiedot "SPCA210.100 2-Door expander"
The SPCA210.100 2-door expander extends the SPC controller with advanced door control functionality for 2 entry doors or 1 entry/exit door. The device features 2 Wiegand/Clock&Data interfaces, 4 LED control outputs (1 void / valid per reader), 4 zones (1 position- and 1 opening switch per door), 2 relay outputs (1 lock per door) and an on-board buzzer to signal "door open too long" events.To allow greatest flexibility, the zones and outputs are freely programmable for other purposes if not used for door control. Up to 512 priority card holders can be stored on the expander for standalone operation in case of communication loss to the control panel. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Gross weight (KG) 0.54
Osta yksikkö PCE
EAN/UPC-Code: 4025515471189
Mindestabnahme 1
ECCN N
Statistical code 85311030
Country of origin PH
Material code V54547-A101-A100
Net weight 0.513
Tamper switch: Ja
Approval: CH: FFIS bis Kat. 1
Weight: 0.360 kg
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Tamper contact: Front spring tamper
Interfaces: X-BUS (in, out, branch), Reader 1, Reader 2
LED Indicators: 4 outputs (1 void and 1 valid per reader)
Number of on-board relays: 2, for door locks or freely programmable (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 4, for door release switch (DRS) and door position switch (DPS), or freely programmable
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Quiescent current: Max. 45 mA at 12 VDC
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)
