VR50M-MF NGCR MIFARE EV1 Mullion+keypad

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54504-F112-A100
  • 7330082004058
Tuotetiedot "VR50M-MF NGCR MIFARE EV1 Mullion+keypad"

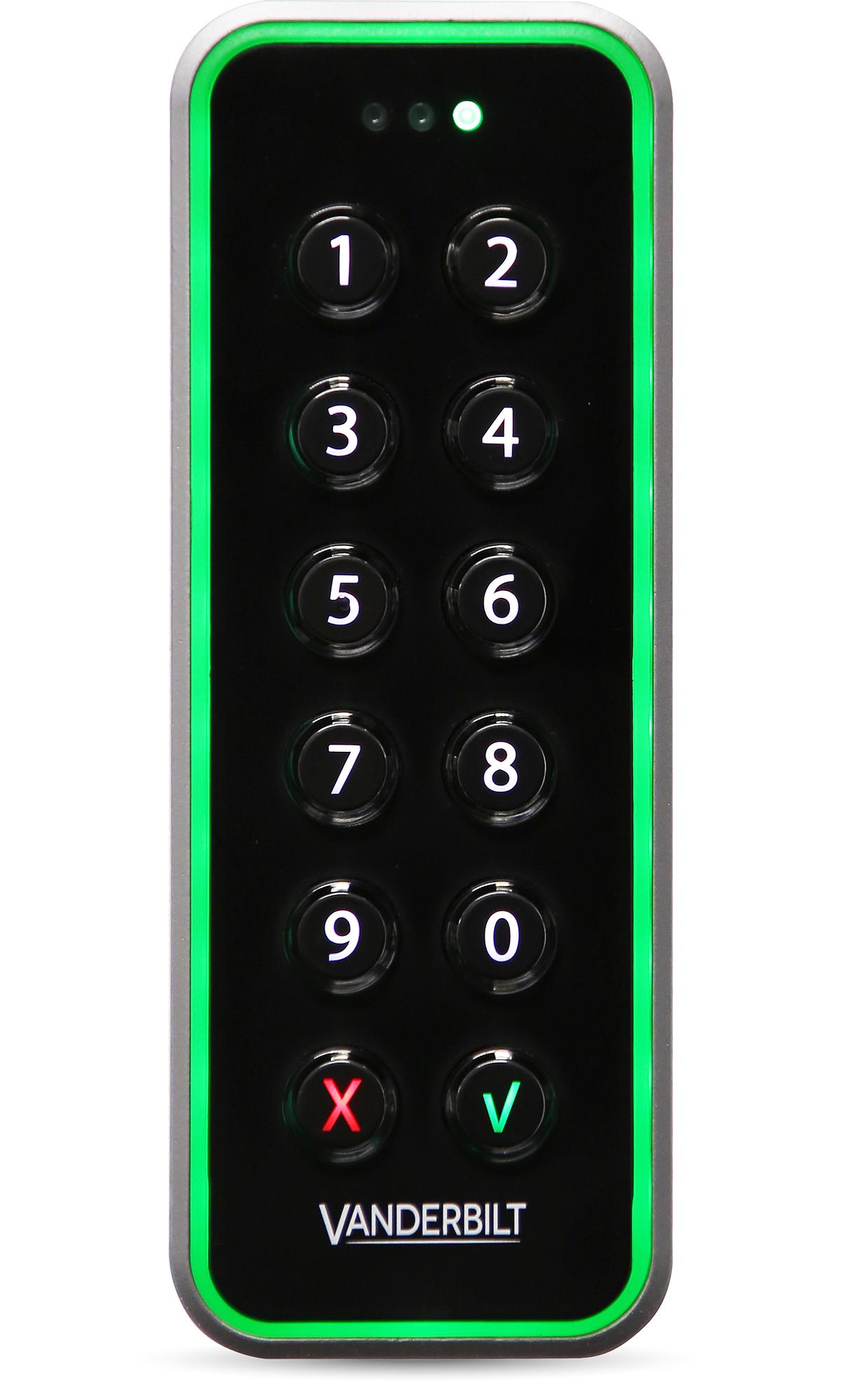

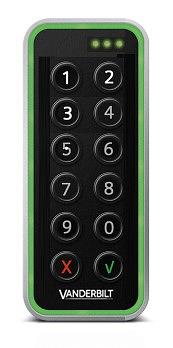

VR Mullion reader - Modern attractive looking reader with hardwearing materials which endure the most challenging weather conditions. Multicolour programmable light frame on all readers which enhance the look and functionality of the reader. The customer can choose colours for each outcome and rest state. OSDP or Wiegand connectivity supporting MIFARE card technology including EV1 and EV2.
Gross weight (KG) 0.296
Osta yksikkö PCE
EAN/UPC-Code: 7330082004058
Mindestabnahme 1
Statistical code 84719000
ECCN EAR99
Country of origin RO
Net weight 0.295
Material code V54504-F112-A100
Impact rating: IK08
Display: No
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Keypad: Yes
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Weight: 0.294kg
Air humidity (EN 60721): 5-95% non-condensing
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Card technology: MIFARE
Interface to controller: RS485 / Wiegand
Power consumption: DC 12V = 50mA (150mA Peak); DC 24V = 30mA (100mA Peak)
Operating temperature: -40°C to +70°C (surface mounted) -10°C to +70°C (back box mounted)
Housing protection: IP66 (surface mounted) IP3X (back box mounted)
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
Colour: Black, (matt chrome finish)
Operating voltage: 8.5 – 30.0 VDC
Tamper protection: Yes
Card read distance: Up to 6 cm
Environment: Indoor or outdoor use
Dimensions (L x W x H): 50 x 130 x 22 (mm)
