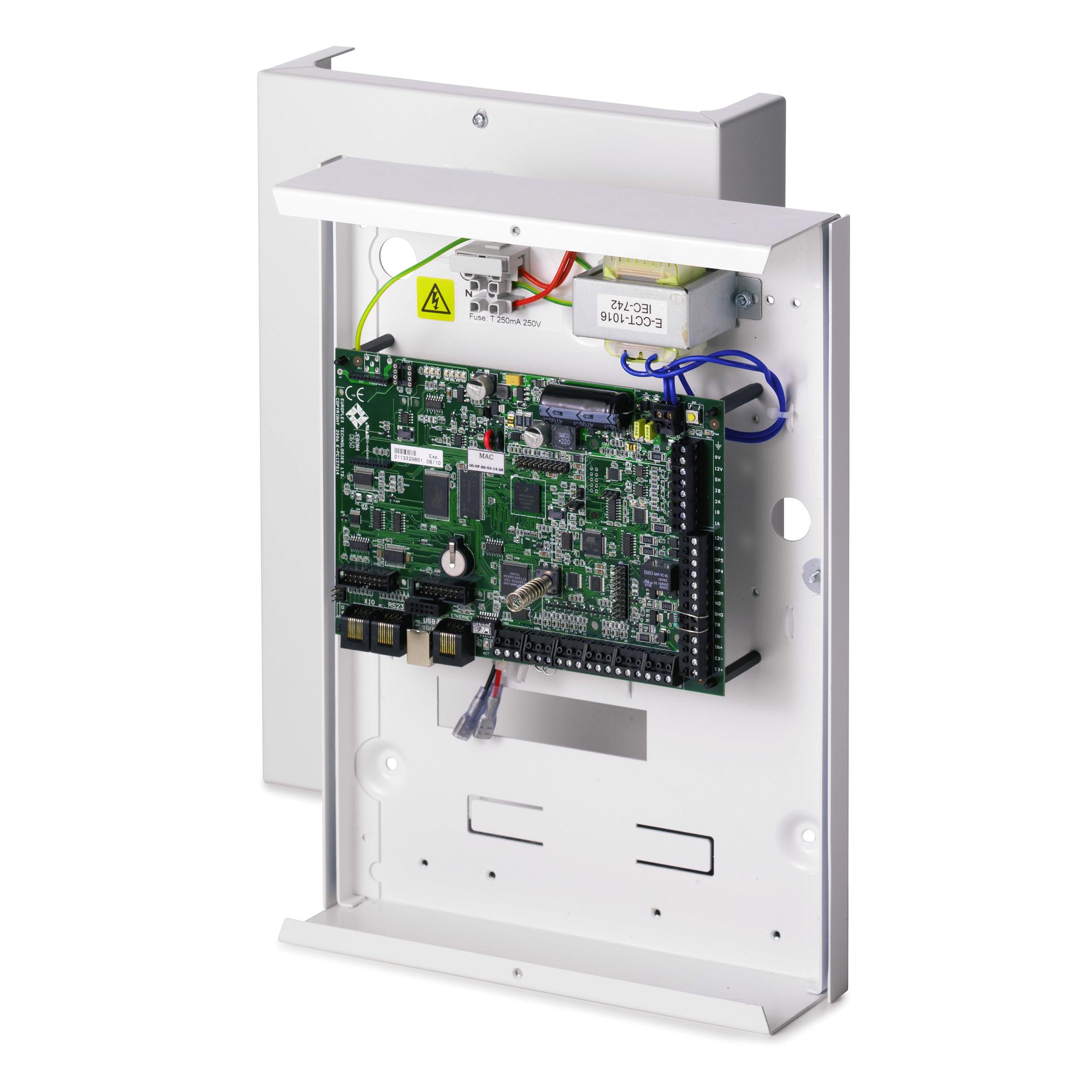

SPC5320.320-L1 Intrusion CP,G2

SPC5320.320-L1 Intrusion CP,G2
Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54541-C106-B100
  • EAN/UPC-Code: 4025515470731
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Software Nützliche Links
Kuvaus
Sulje valikko
Tuotetiedot "SPC5320.320-L1 Intrusion CP,G2"
The SPC5320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (8 on-board), 128 outputs (6 on-board), 16 system keypads, 16 doors, 8 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16 areas, 500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 64 detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 4.7
Osta yksikkö PCE
EAN/UPC-Code: 4025515470731
Mindestabnahme 1
ECCN N
Statistical code 85311030
Country of origin PH
Net weight 4.465
Material code V54541-C106-B100
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Verification: 8 verification zones with max. 4 IP-cameras and 8 audio devices.
Operating current: Max. 190 mA at 12 VDC
Quiescent current: Max. 170 mA at 12 VDC
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Operating temperature: 0 ~ +40 °C
Power output: Max. 750 mA bei 12 VDC
Remote controls: Up to 50
Max. number of hardwired zones: 128
Door capacity: Max. 16 entry doors or 8 entry/exit doors
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Tamper contact: Front spring tamper, 2 auxiliary tamper contact inputs
Weight: 4.500 kg
Housing: Small metal housing (1.2 mm mild steel)
Approval: EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2
IP-Communication: Yes
Language: Multi-language support (en + 4 imported language files).Available language files: de, en, es, fr, it, nl, sv.
Max. number of wireless zones: 64 (take away wired zones)
Firmware: 3.8.5
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Number of on-board relays: 1 strobe (30 VDC / 1 A resistive switching current)
Colour: RAL 9003 (signal white)
Event memory: 10'000 intrusion events, 10'000 access events
Number of on-board zones: 8
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Dimensions (W x H x D): 264 x 357 x 81 (mm)
