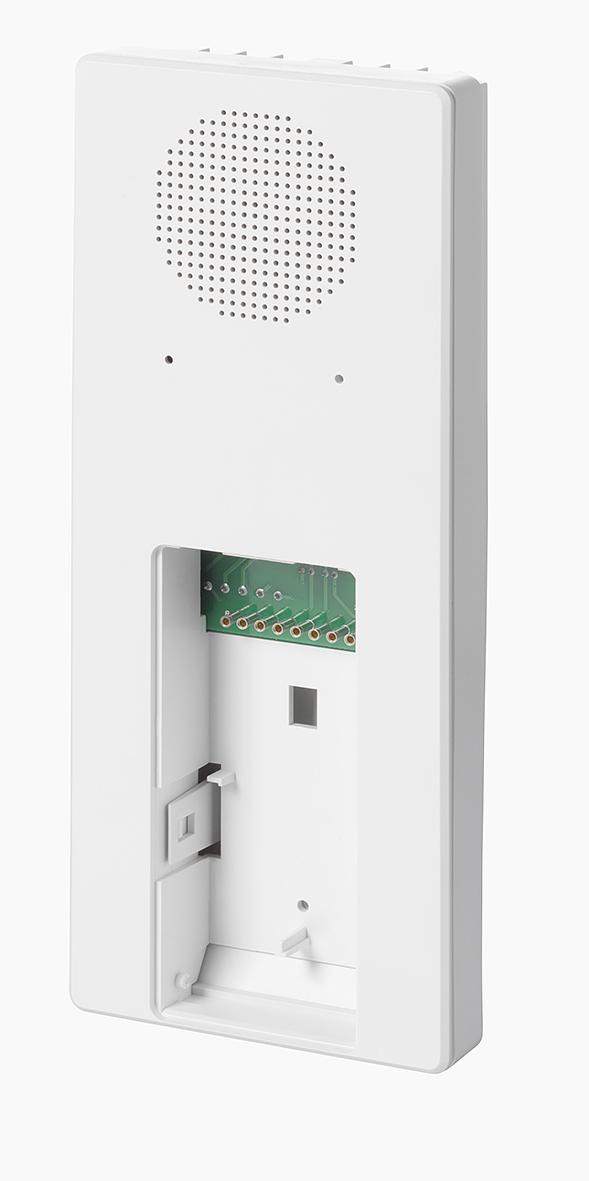

SPCV440.000 Combi Audio Exp. 4 In/1 Out

Esikatselu: SPCV440.000 Combi Audio Exp. 4 In/1 Out Esikatselu: SPCV440.000 Combi Audio Exp. 4 In/1 Out
SPCV440.000 Combi Audio Exp. 4 In/1 Out
SPCV440.000 Combi Audio Exp. 4 In/1 Out

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54542-F118-A100
  • EAN/UPC-Code: 4025515470908
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation
Kuvaus
Sulje valikko
Tuotetiedot "SPCV440.000 Combi Audio Exp. 4 In/1 Out"
The SPCV440.000 Combi Audio Expander extends the acre Intrusion system via X-BUS with an audio verification zone, 4 wired zones and 1 open collector output. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the acre Intrusion system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander. In addition any of the MAGIC motion detectors (12m version) seamlessly fit into the prewired device to allow full use of the superb MAGIC motion detector benefits.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 0.5
Osta yksikkö PCE
EAN/UPC-Code: 4025515470908
Mindestabnahme 1
Statistical code 85311030
ECCN 3A991
Material code V54542-F118-A100
Net weight 0.475
Country of origin RO
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Operating temperature: -10 ~ +50 °C
Tamper switch: Front / back spring tamper
Weight: 0.580 kg
Quiescent current: Max. 60 mA at 12 VDC (without satellites or motion detector)
Operating current: Max. 75 mA at 12 VDC (without satellites or motion detector)
Number of on-board zones: 4 (the MAGIC motion detector takes away 1 zone)
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 106 × 261 × 42 (mm)
Dokumentation
