SPCK421.100 LCD keypad.2x16 Char,CR

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54543-F102-A100
  • 4025515470953
Tuotetiedot "SPCK421.100 LCD keypad.2x16 Char,CR"

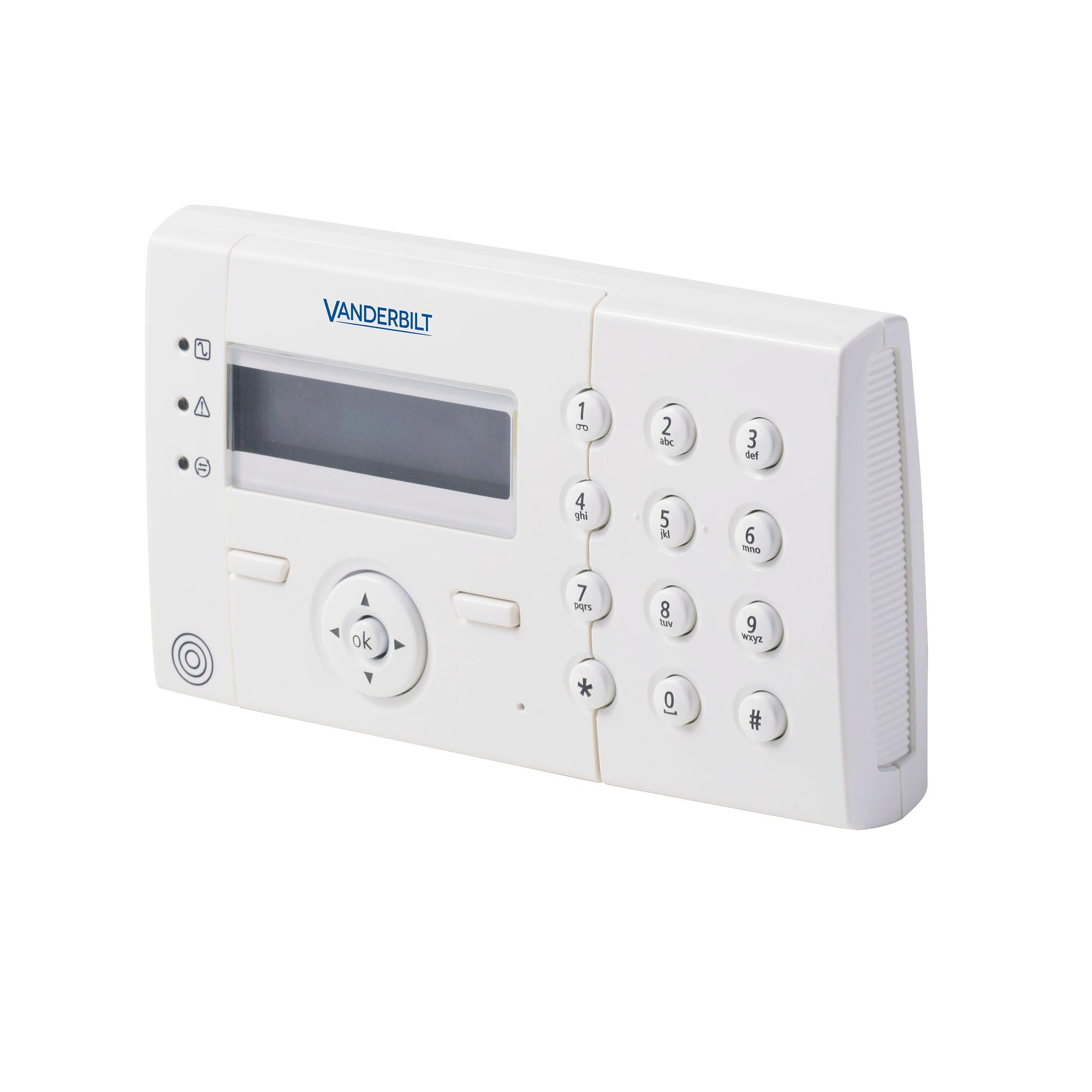

The SPCK421.100 LCD keypad with integrated card reader provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN.
Gross weight (KG) 0.26
Osta yksikkö PCE
EAN/UPC-Code: 4025515470953
Mindestabnahme 1
ECCN N
Material code V54543-F102-A100
Statistical code 85311030
Net weight 0.247
Country of origin PH
Tamper switch: Front / back spring tamper
Operating temperature: -5 ~ +40 °C
Quiescent current: Max. 80 mA at 12 VDC
Operating current: Max. 110 mA at 12 VDC (backlight, LEDs, sounder, reader operated)
Housing: Plastic housing (ABS)
Weight: 0.210 kg
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
LED Indicators: 3 status LEDs
LCD Display: 2 x 16 characters
Dimensions (W x H x D): 148 x 85 x 33 (mm)
