SPCE110.100 Key Switch Expander

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54542-F104-A100
  • 4025515470830
Tuotetiedot "SPCE110.100 Key Switch Expander"

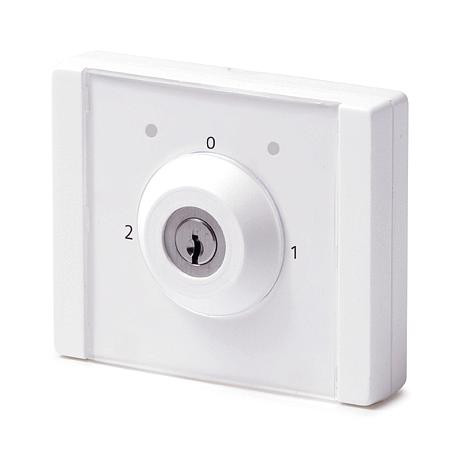

The SPCE110.100 is a universal key switch expander with 2 tri-color LEDs, a 3-position key switch and buzzer. The freely programmable user interface indicates the configured status information with LEDs (e.g. key switch position, area setting states) and enables activation of application specific processes by changing the key switch position (e.g. unlock keypad or indication expander, setting of an area, open or close a gate). The expander also provides one freely programmable volt free relay output with either NO or NC terminal. The key switch is delivered with a standard cylinder and should can be replaced.
Gross weight (KG) 0.52
Osta yksikkö PCE
EAN/UPC-Code: 4025515470830
Mindestabnahme 1
ECCN N
Material code V54542-F104-A100
Statistical code 85311030
Net weight 0.494
Country of origin PH
Weight: 0.270 kg
Quiescent current: Max. 30 mA at 12 VDC
Operating current: Max. 50 mA at 12 VDC (relay and LEDs operated)
LED Indicators: 2 tri-color LEDs
Number of on-board relays: 1 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 112 x 92 x 38 (mm)
