PDM-IXE12(50) Dual det. 10.587GHz 50pcs

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • L54531-S114-A100
Tuotetiedot "PDM-IXE12(50) Dual det. 10.587GHz 50pcs"

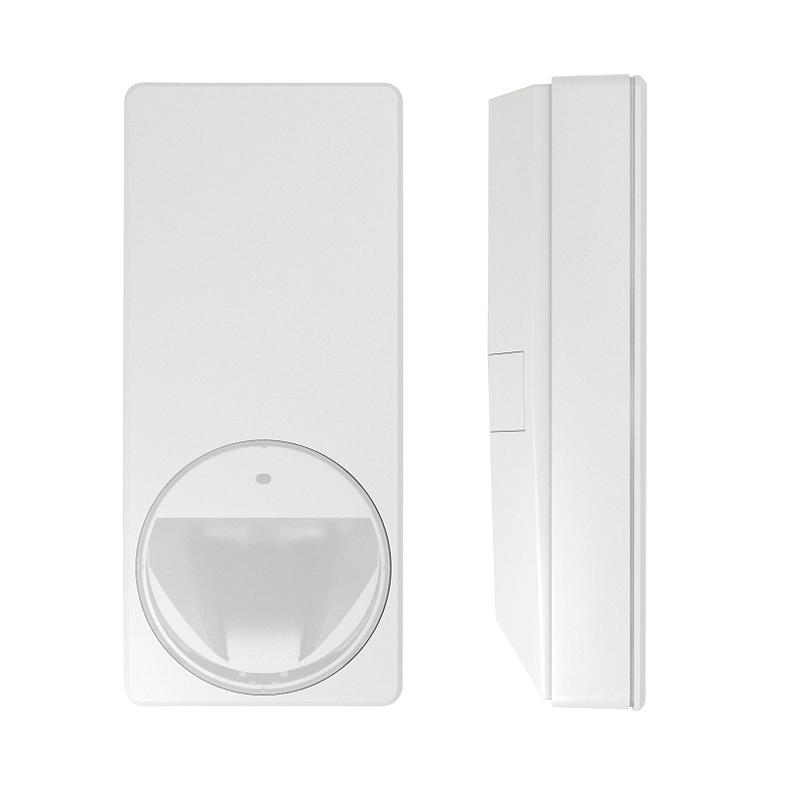

Product information "PDM-IXE12 PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-IXE12 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.1
Osta yksikkö PCE
Mindestabnahme 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.100
Material code L54531-S114-A100
Operating temperature: - 10° ~ + 55°C
Supply voltage: 9 ~ 16 VDC (12 V nom.)
Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Walking speed: 0.2 ~ 3.0 m/s
Colour: RAL9003
Housing protection: IP41 / IK02
EOL resistor: RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Pet immunity: yes (option)
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Optical system: MAGIC mirror
Sensitivity evaluation mode: 6 settings
Detection characteristics / range: Volumetric / 12 m
Storage temperature: - 20° ~ + 60°C
Approval: NF&A2P Grade 2 + RTC (pending) EN50131-2-4 grade 2
Microwave (MW): 10.587 GHz
Weight: 0.1 kg
Air humidity (EN 60721): < 95% RH, non-condensing
Current consumption: 4.8 mA (rms) 9.0 mA (max peak)
