ACT10 Codelock - 2Doors,10Codes,2Groups

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54521-C112-A100
  • 7330082004423
Tuotetiedot "ACT10 Codelock - 2Doors,10Codes,2Groups"

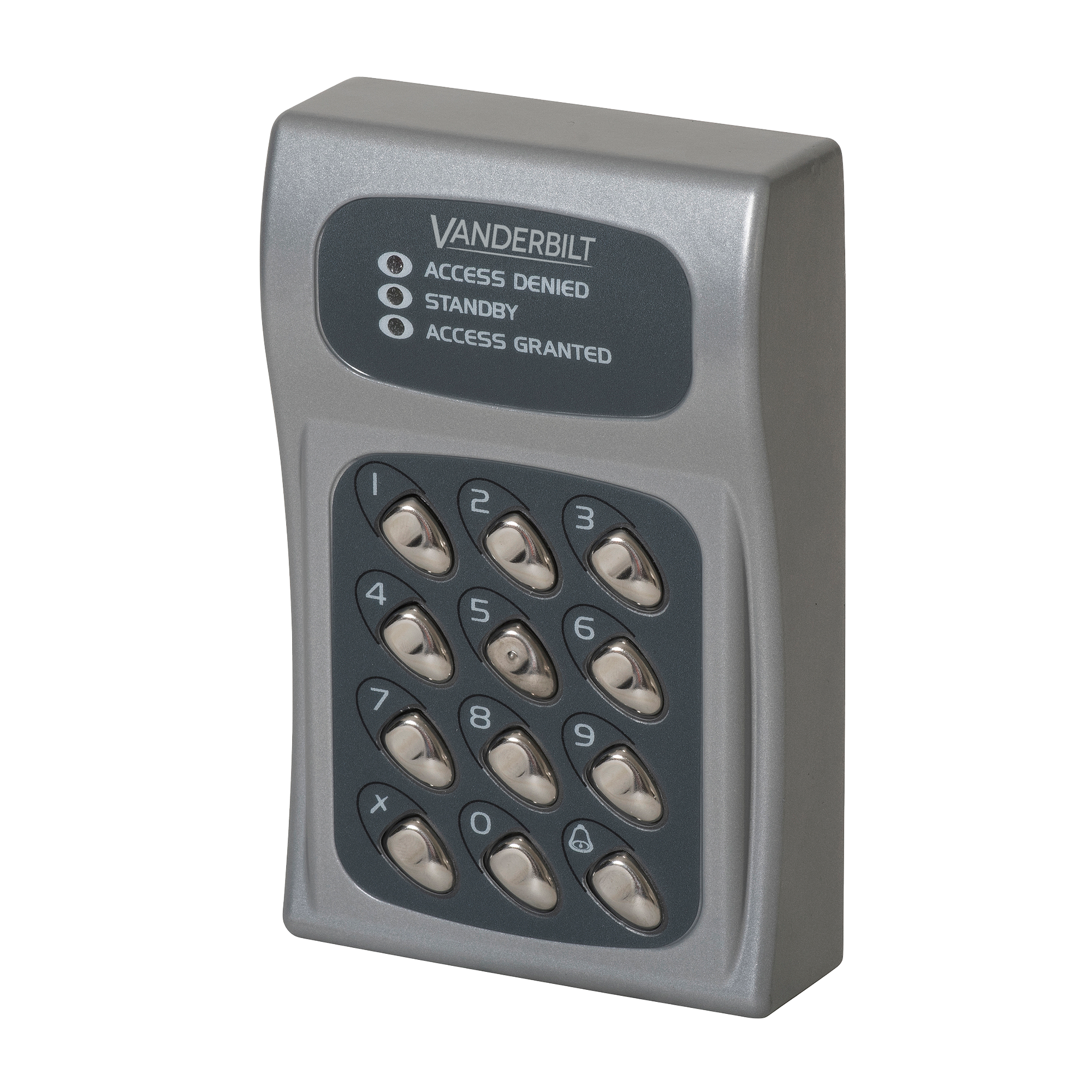

The ACT 10 digital keypad supports 10 user PIN codes with 2 output relays. It is a durable unit made from vandal resistant die cast zinc with backlit stainless steel keys. This multi-purpose keypad caters for Interlock, fire alarm input, door monitoring.
Gross weight (KG) 0.727
Osta yksikkö PCE
EAN/UPC-Code: 7330082004423
Mindestabnahme 1
Statistical code 84719000
Material code V54521-C112-A100
ECCN EAR99
Net weight 0.690
Country of origin CN
Impact rating: IK10
Operating temperature: -40 to +70°C
Weight: 0.7kg
Users: 10
Door capacity: 2
Current consumption: 40mA (nominal), 120mA (max)
Operating voltage: 12 - 24 Volts AC/DC
Mounting: Surface / flush
Installation: Indoor / outdoor
Tamper protection: Yes
Housing protection: IP55
Dimensions (L x W x H): 138 x 87 x 37 (mm)
