V42 Codelock with 2 codes

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V24246-C3552-A1
  • 4025515469018
Tuotetiedot "V42 Codelock with 2 codes"

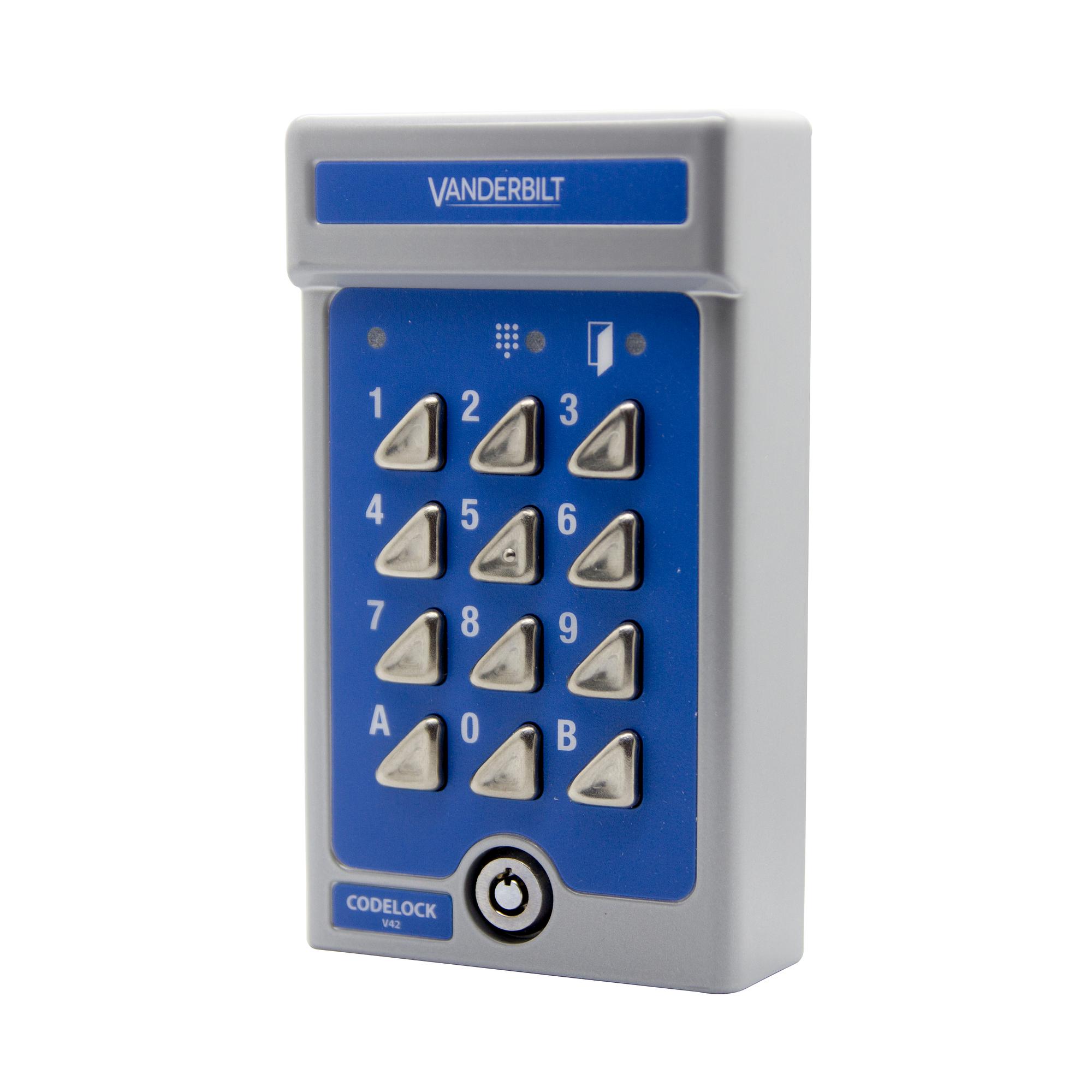

The V42 is the best-selling codelock in the world. It is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. The V42 has a capacity of two four-digit codes. One can be used by residents while the other is used by the property caretaker, for example. All settings are made directly in the unit.
Gross weight (KG) 0.76
Osta yksikkö PCE
EAN/UPC-Code: 4025515469018
Mindestabnahme 1
Statistical code 84719000
Material code V24246-C3552-A1
Net weight 0.703
Country of origin PH
ECCN EAR99
Operating voltage: 12 to 24 VAC/DC
Dimensions (W x H x D): 80 x 140 x 40 mm
Operation temperature: -35 to +55 °C
Weight: 0.72 kg
Colour: Blue
Housing: Cast metal with stainless steel buttons and security lock.
Housing protection: IP54 design
Environment: Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
Code capacity: Two four-digit codes
Opening time: 1–30 sec.
Outputs: Voltage-free relay contact, max. 1 A, 28 VDC.
Inputs: Exit button requests with delay. Two separate for code disable.
Current consumption: 8 mA in standby
