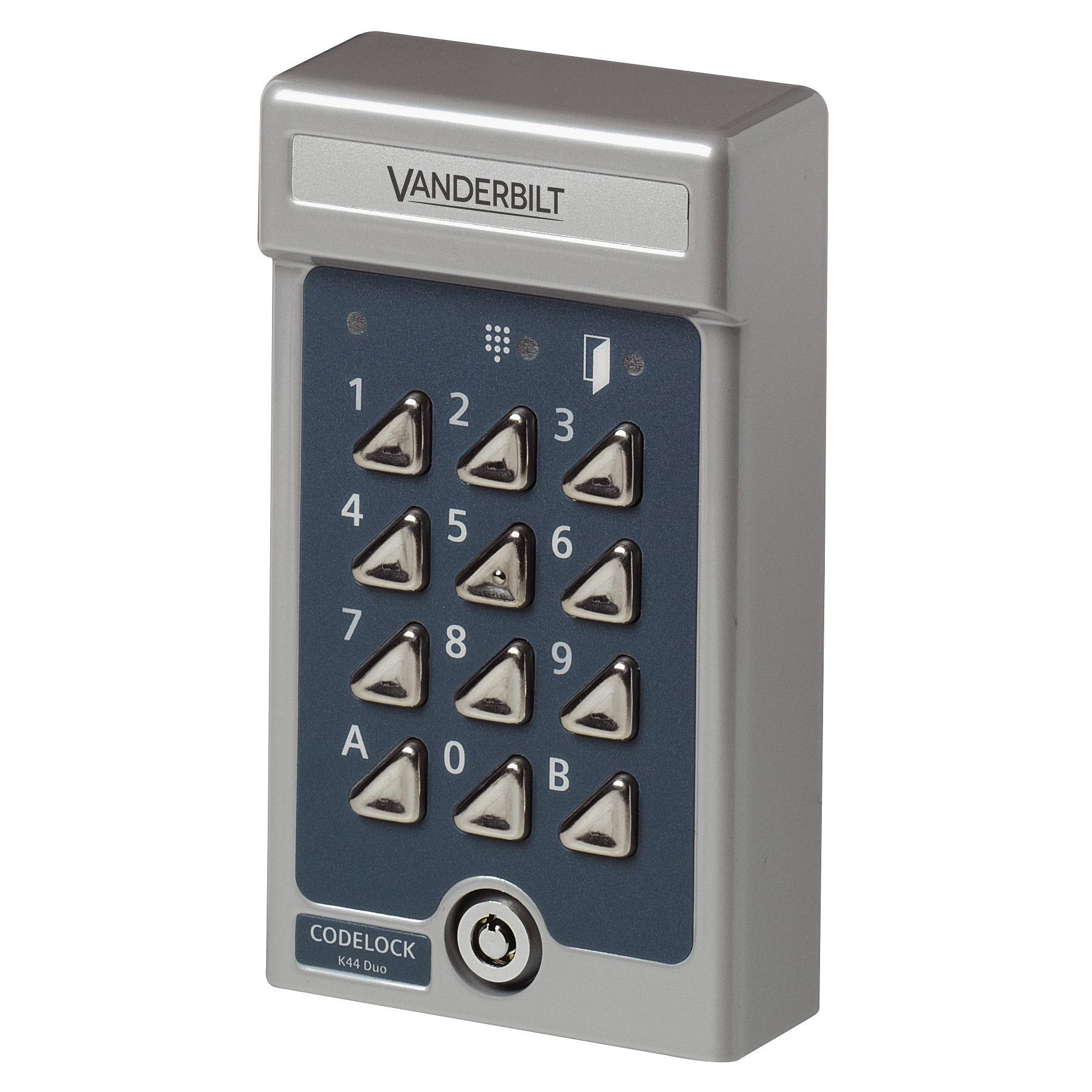

V44Duo Codelock with 30 codes

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V24246-C3553-A1
  • 4025515473442
Tuotetiedot "V44Duo Codelock with 30 codes"
Gross weight (KG) 0.75
Osta yksikkö PCE
EAN/UPC-Code: 4025515473442
Mindestabnahme 1
Country of origin
ECCN EAR99
Material code V24246-C3553-A1
Net weight 0.713
Statistical code
Operating voltage: 10 to 35 VDC 8 to 24 VAC
Dimensions (W x H x D): 80 x 140 x 40 (mm)
Housing: Grau, gegossenes Metall mit Tasten aus rostfreiem Edelstahl und Sicherheitsschloss
Housing protection: IP54
Housing material: Cast metal with stainless steel buttons and security lock
Housing protection (EN 60529): IP54 design
Weight: 0.75kg
Environment: Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
Code capacity: 20 four-digit codes and 10 six-digit codes
Door capacity: Two
Opening time: 1-99 seconds programmable from keypad
Outputs: Two voltage-free relay contacts, max. 2 A, 28 VDC. Open collector for duress/alert. Open collector for door bell. Tamper switch for alarm connection (normally closed).
Inputs: Two exit button requests with delay. Two separate for codes disable. Two for door contacts. External control of zero opening.
Current consumption: 75mA in standby
Colour: Blue
Operating temperature: -35 ~ +55 °C
