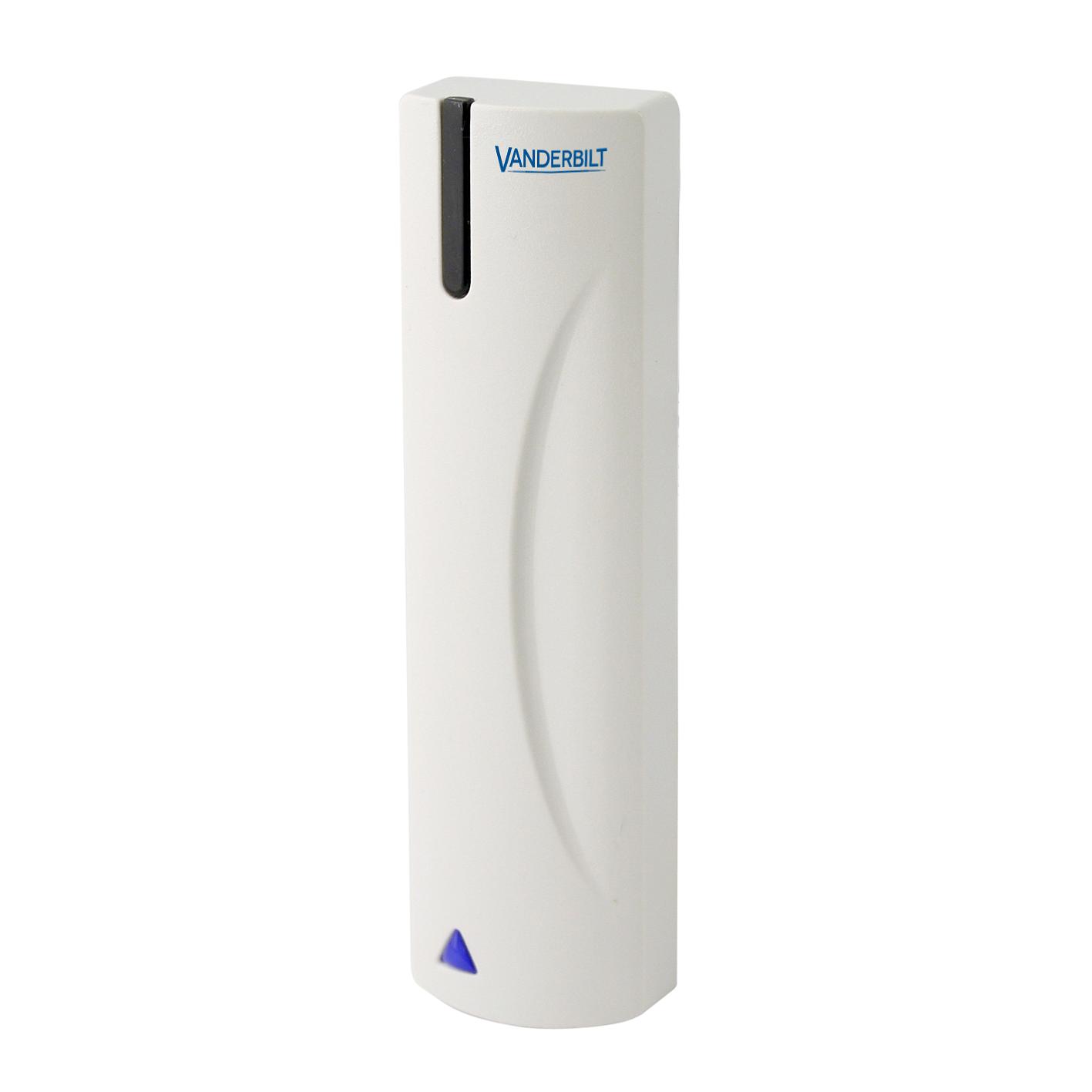

PR500-EM Prox 125kHz Mullion Reader

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V24246-F3913-A1
  • 4025515473527
Tuotetiedot "PR500-EM Prox 125kHz Mullion Reader"
The PR500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Gross weight (KG) 0.11
Osta yksikkö PCE
EAN/UPC-Code: 4025515473527
Mindestabnahme 1
Statistical code 84719000
ECCN EAR99
Country of origin PH
Net weight 0.110
Material code V24246-F3913-A1
Housing protection (EN 60529): IP55
Environment: Indoor or outdoor use
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection: No
Card read distance: Up to 10 cm
Current consumption: 22 mA @ 12V DC 25 mA @ 24V DC
Keypad: No
Weight: 0.11 kg
Housing material: ABS base with clip on ABS front cover
Housing: ABS base with clip on ABS front cover
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Dimensions (W x H x D): 40 x 140 x 18.5 (mm)
Tamper switch: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing protection: IP55
Colour: White
Operating voltage: 10.6 ~ 32 VDC
