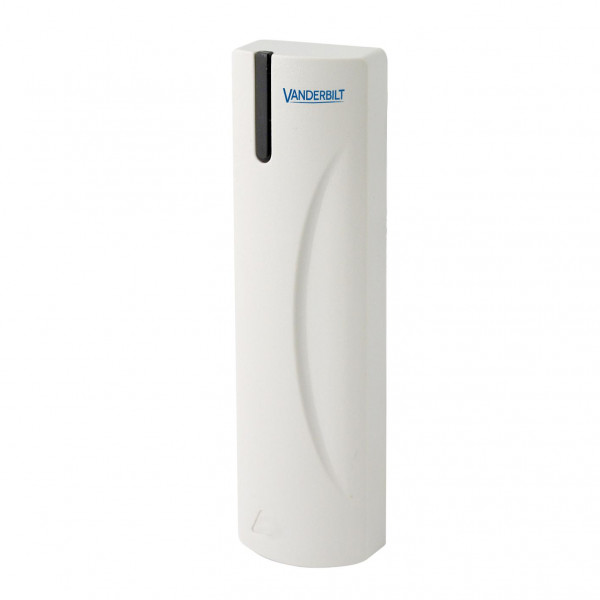

PR500-Cotag COTAG Mullion Reader

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V24246-F4706-A1
  • 4025515473602
Tuotetiedot "PR500-Cotag COTAG Mullion Reader"
The PR500-Cotag reads Vanderbilt unique Cotag cards and tags (both active and passive) which offer ultimate convenience and cost-efficiency. It has a reading range of up to 32 cm with an active card and 11 cm with a passive card. The PR500-Cotag has a slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Gross weight (KG) 0.13
Osta yksikkö PCE
EAN/UPC-Code: 4025515473602
Mindestabnahme 1
Country of origin PH
Statistical code 84716070
Net weight 0.190
Material code V24246-F4706-A1
ECCN EAR99
Tamper protection: No
Keypad: No
Tamper switch: No
Operating voltage: 10.6 to 32 VDC
Operating temperature: -30 to +50 °C
Environment: Indoor or outdoor use
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Operation temperature: -30°C to +50°C
Card compatibility: IB911‚ IB928‚ IB958‚ IB958M‚ IB981 & IB968
Housing protection (EN 60529): IP55
Weight: 0.11 kg
Housing material: ABS base with clip on ABS front cover
Housing: ABS base with clip on ABS front cover
Card read distance: Up to 32 cm with active card. Up to 10 cm with passive card.
Current consumption: 36 mA @ 12 VDC 36 mA @ 24 VDC
Dimensions (W x H x D): 40 x 140 x 18.5 mm
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Card technology: Cotag
Housing protection: IP55
Colour: White
