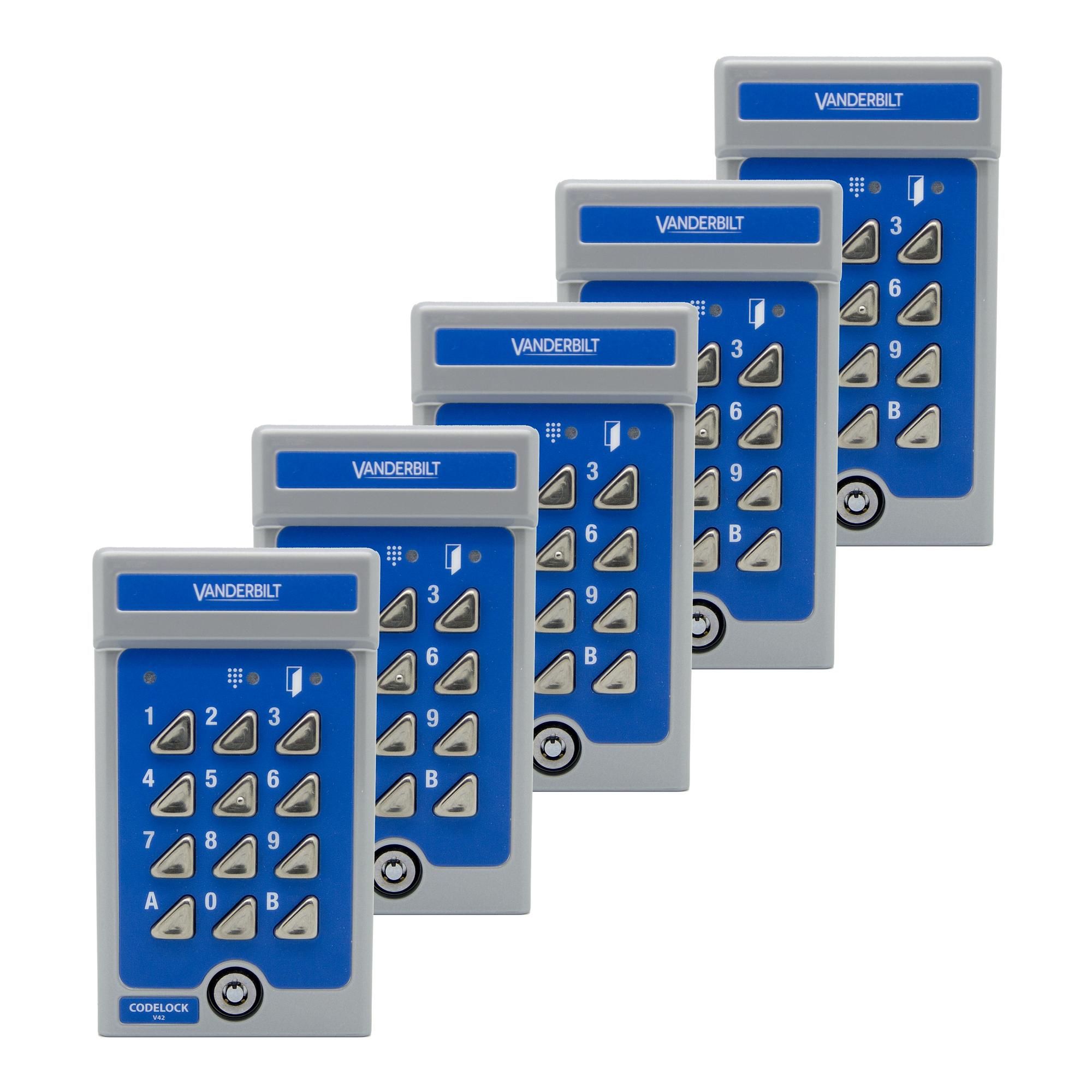

V42-5p V42 Codelock with 2 codes (5pcs)

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54521-S101-A100
Tuotetiedot "V42-5p V42 Codelock with 2 codes (5pcs)"
Gross weight (KG) 0.1
Osta yksikkö PCE
Mindestabnahme 1
Country of origin
ECCN EAR99
Material code V54521-S101-A100
Net weight 0.100
Statistical code
Current consumption: 8 mA in standby
Dimensions (W x H x D): 80 x 140 x 40 (mm)
Weight: 0.72kg (per unit)
Housing: Gegossenes Metall mit Tasten aus rostfreiem Edelstahl und Sicherheitsschloss
Housing protection: IP54
Housing material: Cast metal with stainless steel buttons and security lock
Housing protection (EN 60529): IP54 design
Operating temperature: -35 bis +55 °C
Colour: Blue
Environment: Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
Code capacity: Two four-digit codes
Opening time: 1–30 sec.
Outputs: Voltage-free relay contact, max. 1 A, 28 VDC.
Inputs: Exit button requests with delay. Two separate for code disable.
Operating voltage: 12 to 24 VAC/DC
Operation temperature: -35°C ~ +55°C
