ER10-X USB Enrolment reader, EM/M

ER10-X USB Enrolment reader, EM/M
Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54504-F103-A200
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Software
Kuvaus
Sulje valikko

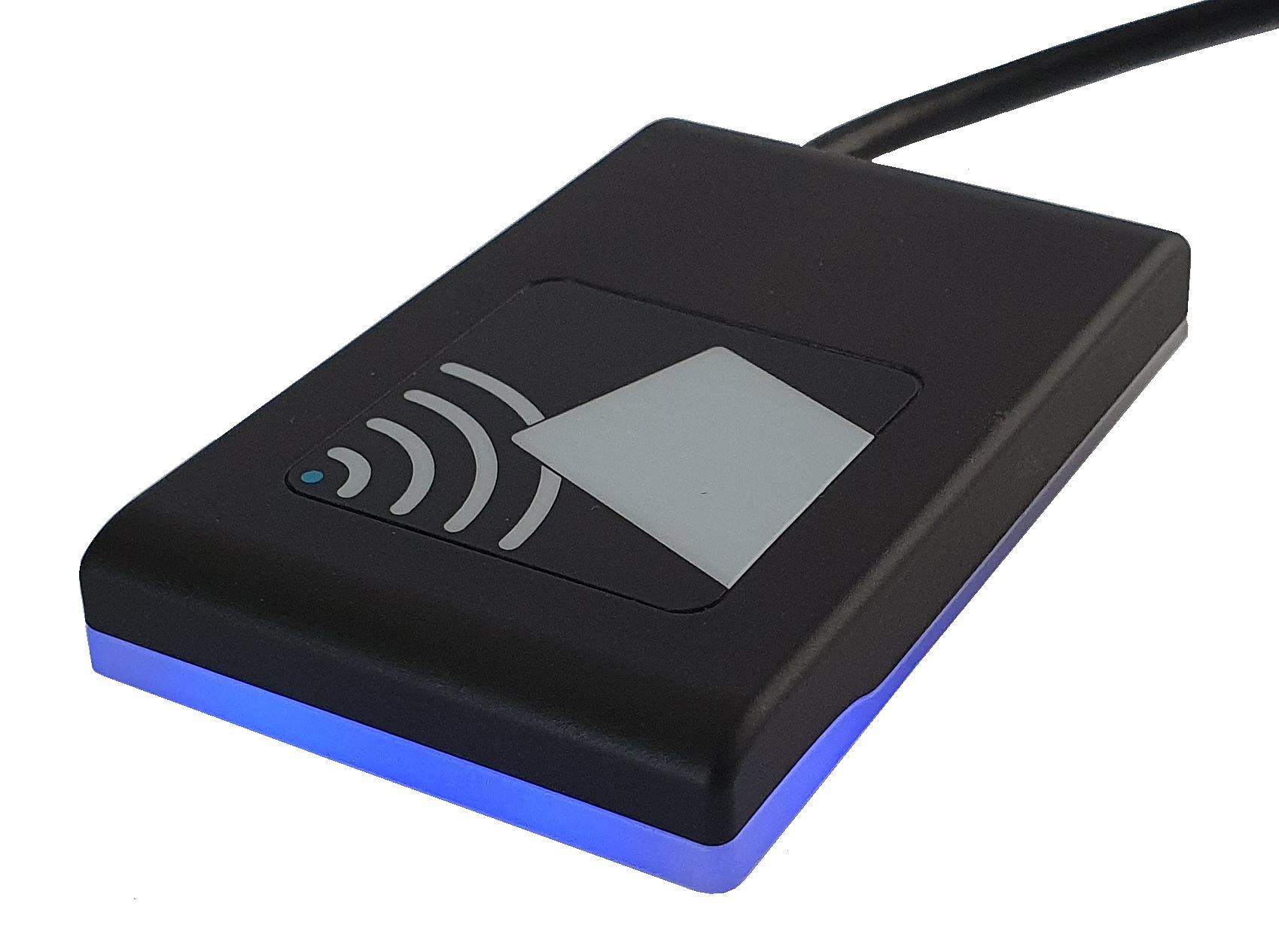

Tuotetiedot "ER10-X USB Enrolment reader, EM/M"
Vanderbilt’s ER10-X USB Reader is a USB enrolment reader used to read card numbers into various Vanderbilt systems such as ACT Enterprise, ACT365, OMNIS and SPC. The reader software can be configured to present the numbers in the correct format for each system. The ER10-X enrolment reader connects to a PC via USB 2.0 and automatically loads the required driver for either Windows, MAC OS X or Linux. When presenting a 125kHz / MIFARE Classic / MIFARE DESFire card or tag to the ER10-X, the card data is transferred to the PC in the form of keyboard data. This allows for easy integration with existing software where card data is usually manually entered into the system. The ER10-X enrolment reader is equipped with a buzzer for acoustic indication and a multicolour LED for visual indication.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 0.19
Osta yksikkö PCE
Mindestabnahme 1
Statistical code 84719000
Material code V54504-F103-A200
Net weight 0.145
Country of origin DK
ECCN EAR99
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Colour: Black
Weight: 0.145kg
LED Indicators: 1 x multicolour LED (red/yellow/green)
Frequency: 125kHz, 13.56MHz
Dimensions (W x H x D): 89mm x 57mm x 12mm
Connectors: USB A Connector on fixed cable USB 2.0 interface
Card technology: EM / 125kHz, MIFARE® Classic CSN/Sector, MIFARE Ultralight CSN, MIFARE DESFire® CSN
Card compatibility: EM / 125kHz • SPC PACE, SPC WIEGAND, SPC AR618X • MIFARE serial, reverse serial, sector • OMNIS
Cable length: Fixed mount / 1.8 m / Black
Audio: Internal buzzer
