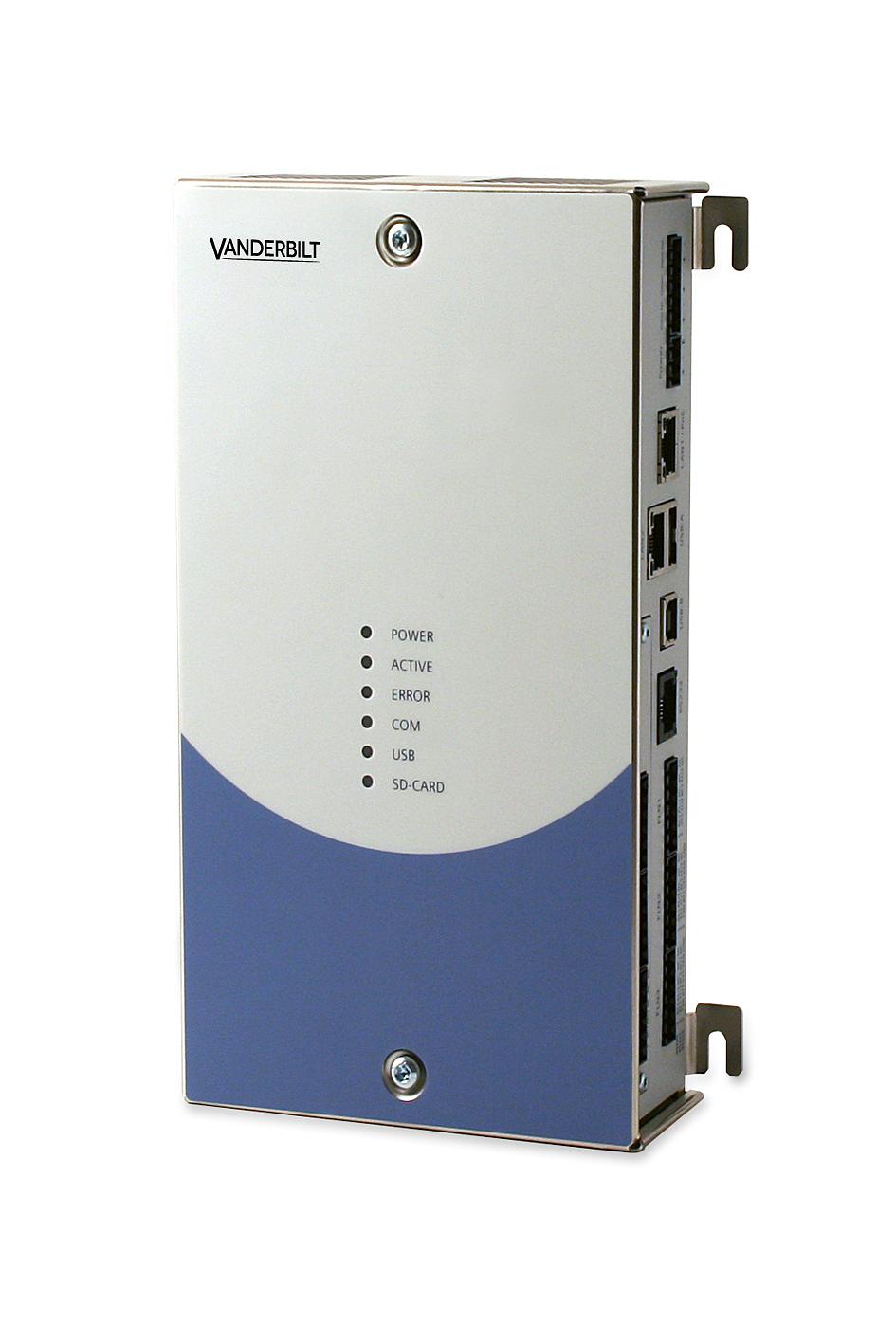

AC5102 Advanced central controller

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier

Tuotenro: V54507-C22-A1
EAN/UPC-Code: 4025515474012

Sulje valikko

Tuotetiedot "AC5102 Advanced central controller"

The AC5102 advanced central controller can be programmed with up to 500‚000 cardholders and up to 96 doors. It has been specially designed for maximum flexibility‚ and provides six separate field level network (FLN) channels. Each FLN is capable of hosting up to 16 local devices for access control‚ monitoring input devices or controlling output devices. The AC5102 also has a diagnostic port that provides a direct connection to its micro-processor to facilitate the download of operating instructions (firmware). Firmware updates can be made without having to visit the controller cabinets. Communication to the host system occurs via a 10/100Mb Ethernet connection. This allows communications over any WAN or LAN where devices on the network can be assigned a unique IP address. This type of communication ensures the fastest possible transaction times between the host system and AC5102 field panels. The AC5102 hosts a tamper input that can be used to detect if the cabinet in which it has been mounted has been opened. It also provides an alarm output that can operate a visual or audio alarm when security has been breached.

Sulje valikko

Gross weight (KG)	1.22
Osta yksikkö	PCE
EAN/UPC-Code:	4025515474012
Mindestabnahme	1
Country of origin	PH
ECCN	EAR99
Statistical code	84715000
Net weight	1.140
Material code	V54507-C22-A1

Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.

Sulje valikko

Environment:	Indoor use only
Door capacity:	96
Card capacity:	500‚000
Indicators:	Power‚ Active‚ Error‚ COM‚ USB‚ SDCard‚ 4 x Ethernet
LCD Display:	None
Keypad:	None
Tamper switch:	Optional
Housing:	Steel
Alarm input:	1 x Tamper input‚ 1 x Power fail input
Colour:	Grey and blue
Approval:	CE‚ UL294‚ C-Tick‚ FCC
Interfaces:	6x interfacce di campo (FLN, Field level network): - FLN 1: RS232 (porta modem) o RS422 / RS485 - FLN 2,3: RS232 / RS422 / RS485 - FLN 4‚5‚6: solo RS485 1x RS232 (RxD/TxD/GND, RJ12) 2x LAN: 10/100 MB Ethernet (RJ45) 1x USB 1x USB-PC
Housing material:	Acciaio
Operating temperature:	0 ~ +50 °C
Dimensions (W x H x D):	124 x 220 x 54 (mm)
Alarm output:	1 x Alarm output (optical relay‚ max. 12 V‚ 100 mA)
Power consumption:	Max. 10 W (fully loaded)
Operating voltage:	12/24 VDC (-10 / +15%)
Additional components:	ACK5110 cable for modem connection
Interface:	6 x Field level network (FLN): - FLN 1: RS232 (modem port) or RS422 / RS485 - FLN 2 & 3: RS232 / RS422 / RS485 - FLN 4‚5‚6: RS485 only 1 x RS232 (RxD‚ TxD‚ GND‚ RJ12) 2 x LAN: RJ45 (10/100 MB Ethernet) 1 x USB 1 x USB-PC
Weight:	0.990 kg
