P25L - Omnis PSU 25A Large

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54506-Z114-A300
Tuotetiedot "P25L - Omnis PSU 25A Large"

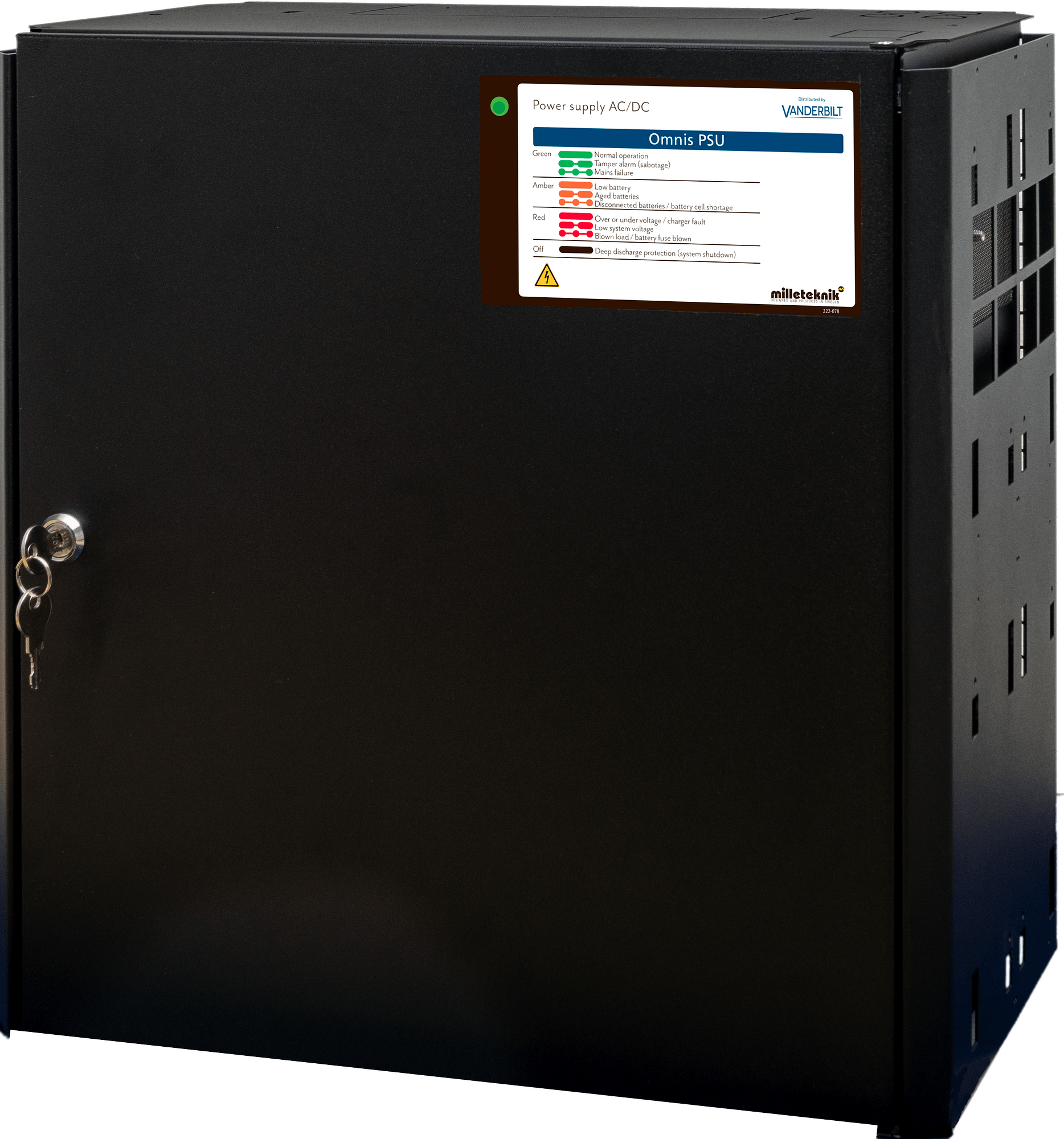

The P25L Omnis PSU is an SSF1014 approved 24V/5A PSU that is monitored in the Omnis system via a RS485 interface. The cabinet can house 2x14Ah batteries. Additional batteries can be added with the FLX Battery Box.
Gross weight (KG) 8
Osta yksikkö PCE
Mindestabnahme 1
ECCN N
Material code N54506-Z114-A300
Statistical code 85044060
Country of origin SE
Net weight 7.000
Power supply: 25A @ 27,3V DC
Weight (without battery): 16 kg
Power output: Including Additional Components: 2 + 14 Prioritized Outputs + 6 Selectable Prioritized/Unprioritized Outputs
Additional components: 2 x 7 Prioritized Load Outputs and 3 Selectable Unpriorizied/Prioritized Load Outputs
Mounting: Wall-mount or Rack-mount (10U)
Dimensions (W x H x D): 437 x 444 x 212 mm
Battery: 2 x 45Ah (not included)
Interface: OSDP over RS485
Number of on-board relays: 0
Protection rating: IP32
Mains voltage: 230V AC
Operating temperature: +5 to +40 ºC
