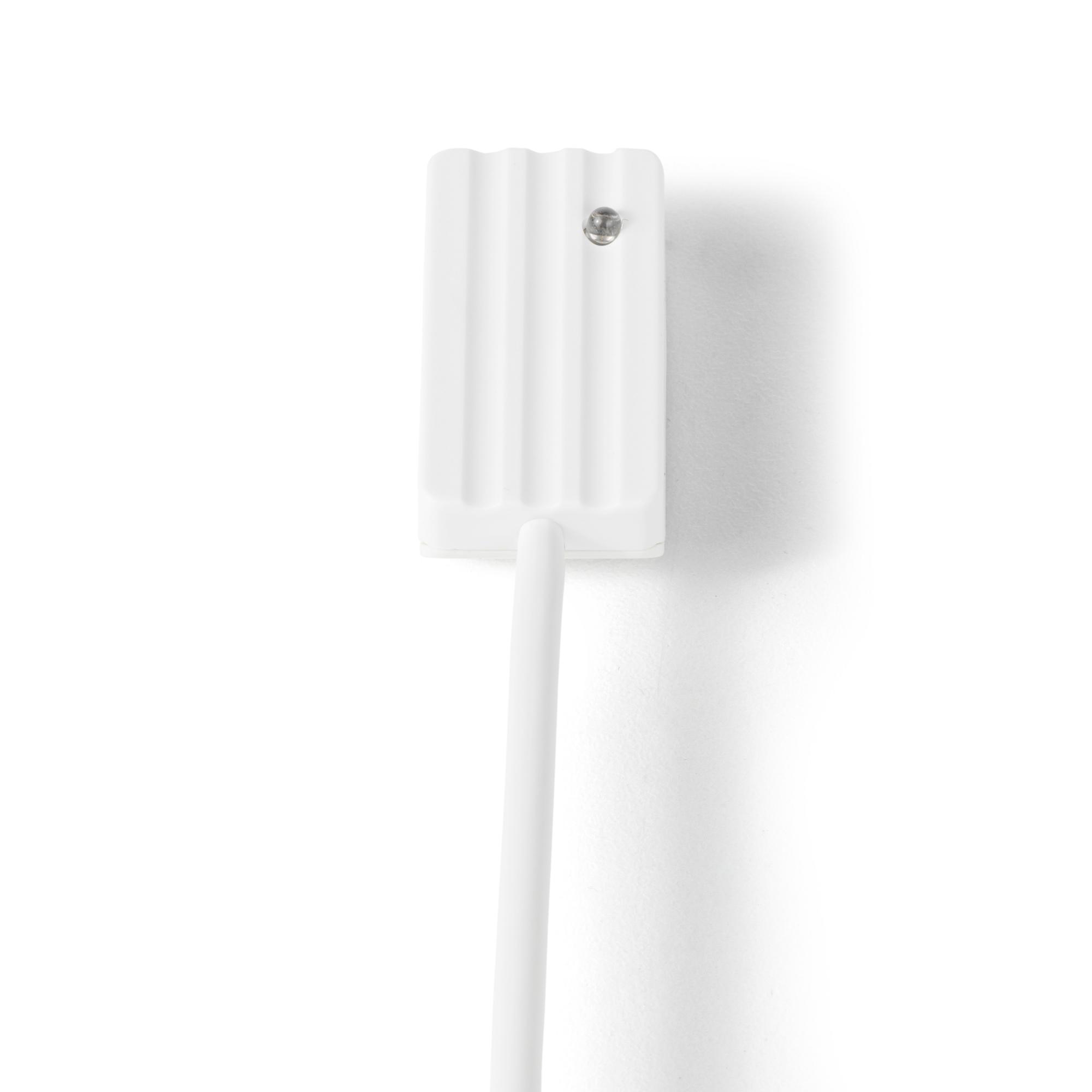

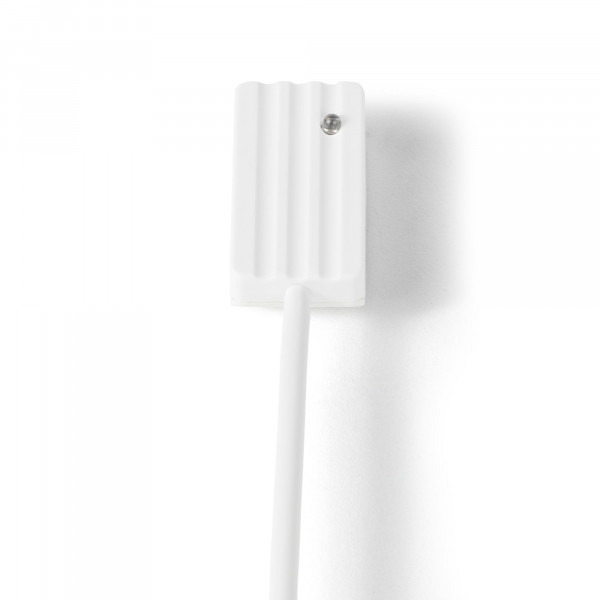

GB-5100-6 Glassbreak detector,6m,relay

Esikatselu: GB-5100-6 Glassbreak detector,6m,relay Esikatselu: GB-5100-6 Glassbreak detector,6m,relay
GB-5100-6 Glassbreak detector,6m,relay
GB-5100-6 Glassbreak detector,6m,relay

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54535-F101-A200
  • EAN/UPC-Code: 4025515478447
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation
Kuvaus
Sulje valikko
Tuotetiedot "GB-5100-6 Glassbreak detector,6m,relay"
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The GB-5100 detectors with relay output and LED indication can be used in smaller installations (1-5 pcs). Secondary Packaging: 25 Units
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 0.145
Osta yksikkö PCE
EAN/UPC-Code: 4025515478447
Mindestabnahme 1
ECCN N
Material code V54535-F101-A200
Net weight 0.138
Statistical code 85311030
Country of origin DE
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Environmental class: III
Housing protection: IP67
Housing material: S-B
Contact resistance: 5 Ω
Reset voltage: Max. 2 V
Operating temperature: -25 ~ 70 °C
Cable length: 6 m
Range: Radius: 2 m
Switching current: Max. 200 mA
Switching voltage: Max. 24 V DC
Supply voltage: 8 - 18 VDC
Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
Dokumentation
Sulje valikko
