MAGS-S Glas break det. set.active,white

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • VDE6:9912400013
  • 4025515476801
Tuotetiedot "MAGS-S Glas break det. set.active,white"

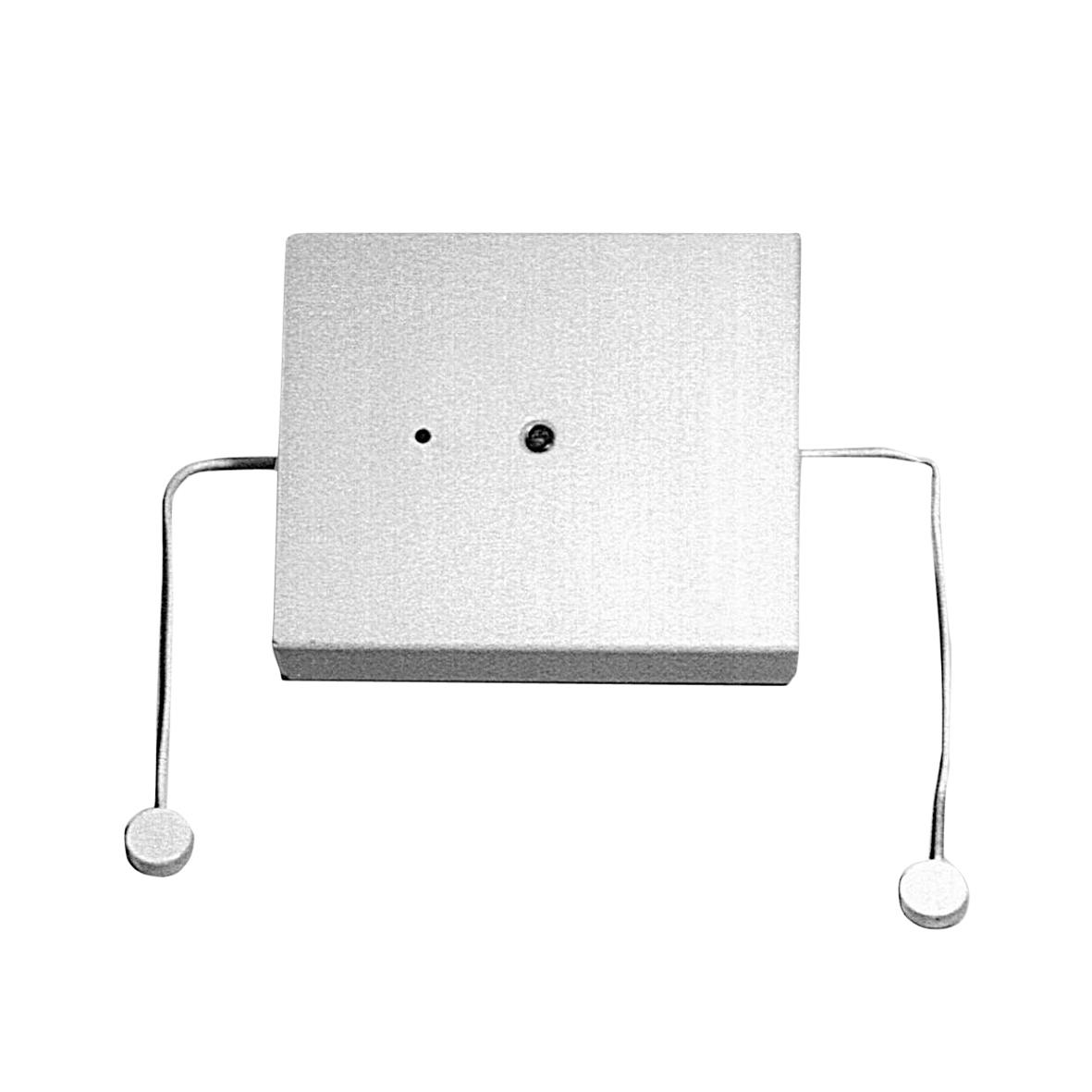

The Active glass break detector MAGS-S consists of the evaluation unit and 2 equal sensors (transmitter and receiver) glued on the pane of glass. No adjustment works are necessary after the assembly. No false alarm is to be expected even at big alterations of the glass-, frame-construction caused by environmental influences like heat, cold and aging because of the automatic adjustment of the sensors to the pane of glass. The Active glass break detector MAGS-S is available for almost all types of glass within a frame construction with undamaged panes.
Gross weight (KG) 0.47
Osta yksikkö PCE
EAN/UPC-Code: 4025515476801
Mindestabnahme 1
ECCN N
Material code VDE6:9912400013
Statistical code 85311030
Net weight 0.456
Country of origin DE
Dimensions (L x W x H): 25 x 110 x 90 (mm)
Weight: 0.450 kg
Colour: RAL 9010 (white)
Operating temperature: -10 ~ +75 °C
Housing protection: IP31
Tamper contact: max. 25 VDC / 30 mA
Range: 25 m²
Alarm output: max. 25 VDC / 30 mA
Current consumption: 18 mA
Approval: VdS geprüft, Klasse C VSÖ geprüft, Klasse WS
Housing material: ABS
Supply voltage: 10.4 ~ 15 VDC
