temporarily out of stock, please check availability with your local Customer Service team.
- Article number: V54501-F1-A1
- EAN/UPC-Code: 4025515473206

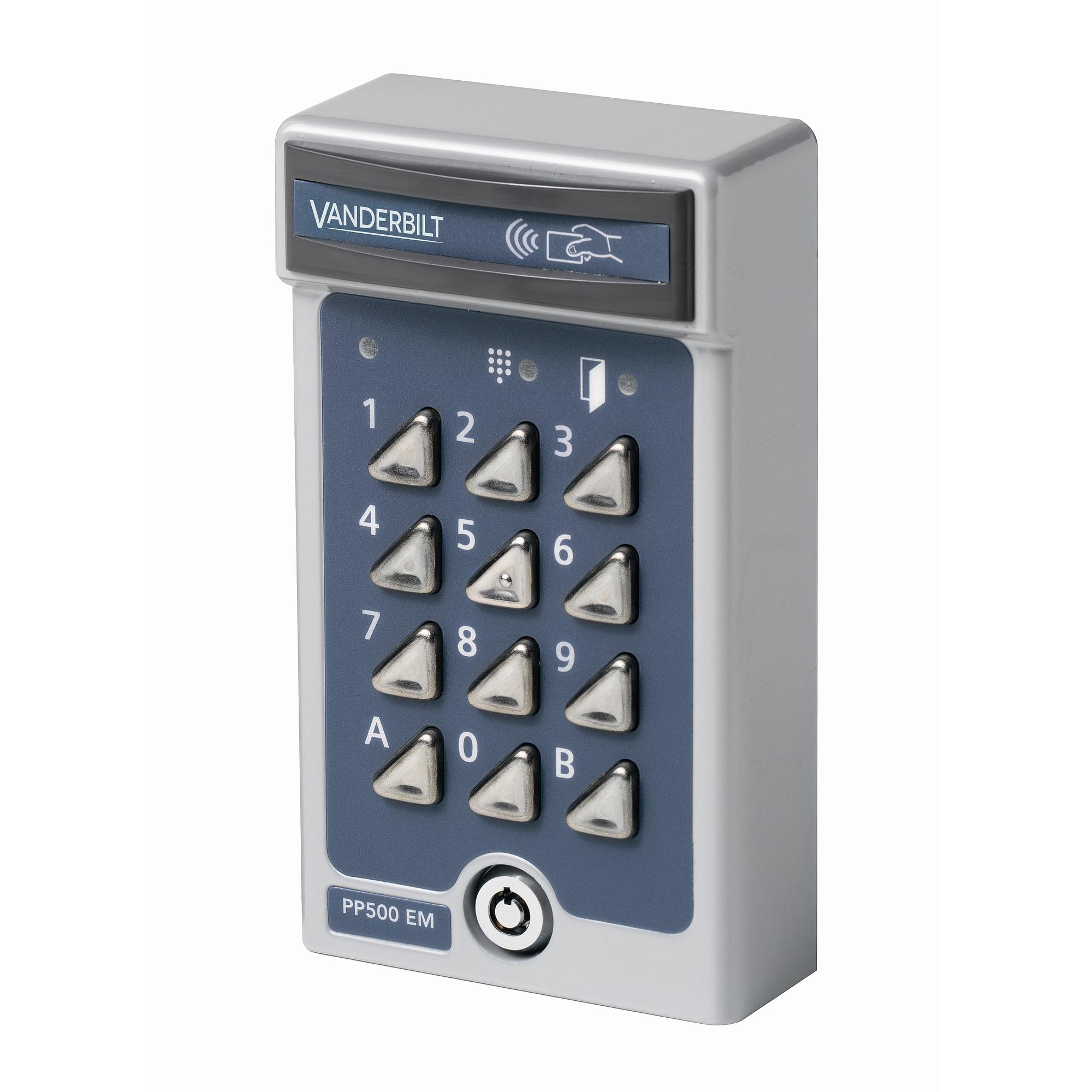

Product information "PP500-EM Prox 125kHz Reader with keypad"
The PP500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has a position indicator light and an illuminated keypad which makes it easy to use in dark places. It also includes a tamper switch for enhanced security. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
|Operating voltage:||12 to 24 VDC|
|Card technology:||EM4102 (also known as Miro or UNIQUE 125 KHz)|
|Operation temperature:||-30°C to +50°C|
|Card read distance:||Up to 5 cm|
|Interface to controller:||BC-Link, Clock&Data or Wiegand|
|Keypad:||Stainless steel keys 0-9, A, B|
|Housing:||Cast metal with stainless steel keys and security lock|
|Housing material:||Cast metal with stainless steel keys and security lock|
|Housing protection (EN 60529):||IP54|
|Card compatibility:||IB41-EM, IB42-EM, IB44-EM, IB45-EM|
|Current consumption:||30 mA @ 12 VDC 17 mA @ 24 VDC|
|Dimensions (W x H x D):||80 x 140 x 40 mm|
|Environment:||Indoor or outdoor use|
|Operating temperature:||-30 to +50 °C|
|Indicators:||3 x LED (red/yellow/green) 1 x Buzzer|
