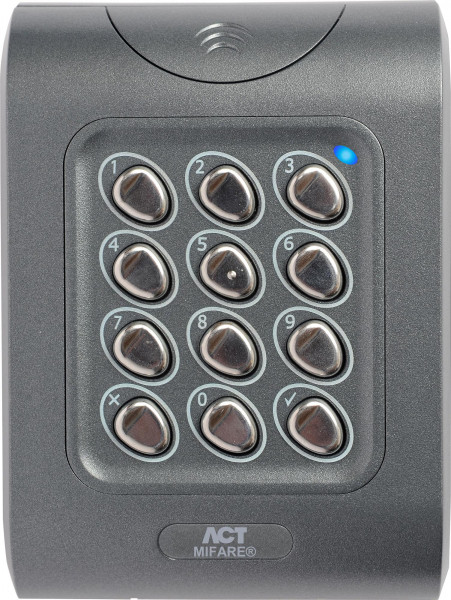

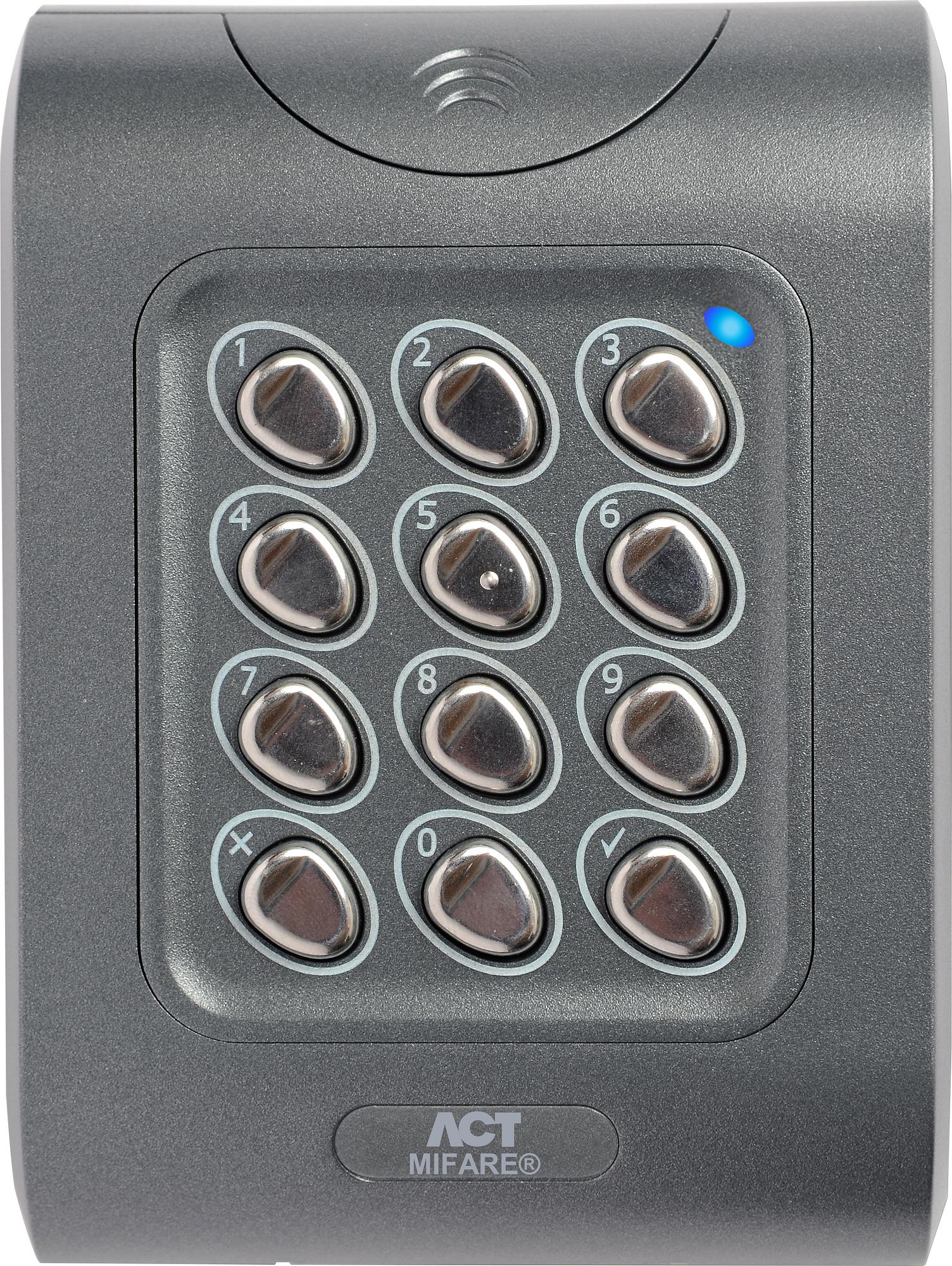

MF1050e ACTpro MIFARE Reader w. keypad

MF1050e ACTpro MIFARE Reader w. keypad
This product is currently not available.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F120-A100
  • EAN/UPC-Code: 7330082004478
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MF1050e ACTpro MIFARE Reader w. keypad"
Combined proximity and PIN reader, reads sector data from ACT MIFARE cards/fobs also can read the serial number from any MIFARE Classic card/fob or data from any sector (read key required)
Certificates
Close menu
Import & Export
Gross weight (KG) 0.32
Purchase unit PCE
EAN/UPC-Code: 7330082004478
Minimum order 1
Statistical code 84719000
Material code V54504-F120-A100
Net weight 0.290
Country of origin CN
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Impact rating: IK08
Weight: 155g
Dimensions (L x W x H): 95mm x 128mm x 21mm
Mounting: Surface/Flush
Connectors: Connector Block
Outputs: Selectable Clock & Data or Wiegand Output
Installation: Indoor & Outdoor
Compatibility: MIFARE ISO 14443A Compatible
Operating voltage: 12 - 24 Volt DC
Keypad: Yes
Operating temperature: -40°C to +70°C
Housing protection: IP67
