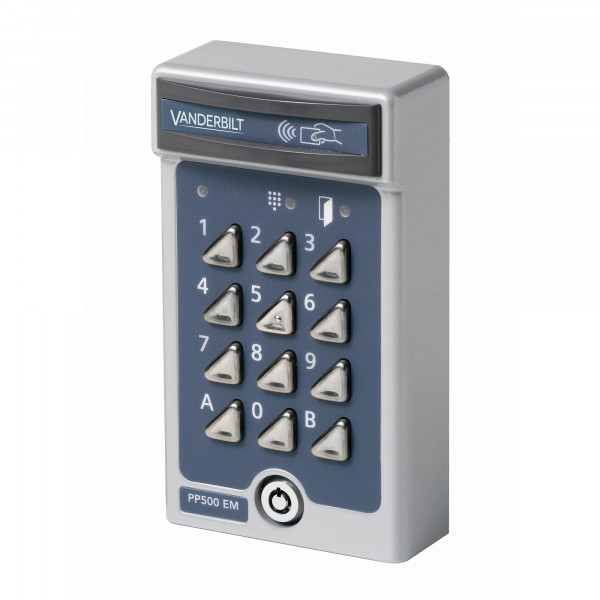

PP500-EM Prox 125kHz Reader with keypad

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54501-F1-A1
  • 4025515473206
Product information "PP500-EM Prox 125kHz Reader with keypad"
The PP500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has a position indicator light and an illuminated keypad which makes it easy to use in dark places. It also includes a tamper switch for enhanced security. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Gross weight (KG) 1
Purchase unit PCE
EAN/UPC-Code: 4025515473206
Minimum order 1
Statistical code 84719000
Country of origin PH
Net weight 0.760
Material code V54501-F1-A1
Housing material: Cast metal with stainless steel keys and security lock
Card read distance: Up to 5 cm
Interface to controller: BC-Link, Clock&Data or Wiegand
Keypad: Stainless steel keys 0-9, A, B
Tamper switch: Yes
Housing: Cast metal with stainless steel keys and security lock
Tamper protection: Yes
Housing protection (EN 60529): IP54
Colour: Grey
Card compatibility: IB41-EM, IB42-EM, IB44-EM, IB45-EM
Current consumption: 30 mA @ 12 VDC 17 mA @ 24 VDC
Weight: 1.35 kg
Dimensions (W x H x D): 80 x 140 x 40 (mm)
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Housing protection: IP54
Environment: Indoor or outdoor use
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Operating voltage: 12 ~ 24 VDC
