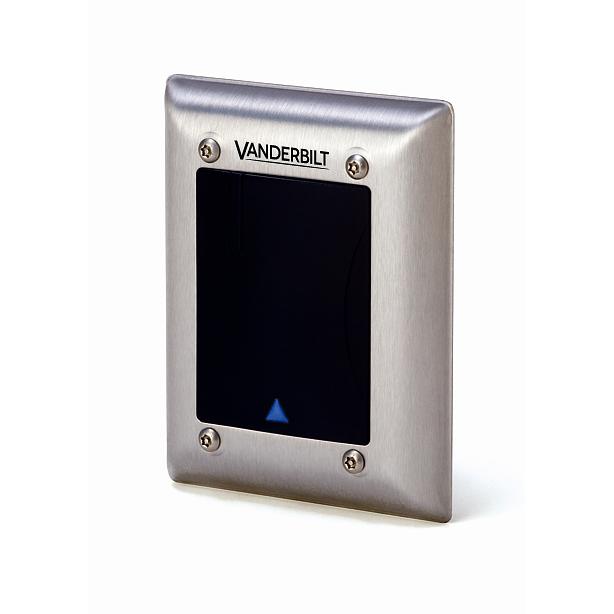

Product information "HD500-EM Prox 125kHz Reader Heavy Duty"
The HD500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). Vandal-proof and fire-resistant, it is popular both in vulnerable locations and modern office environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
|Colour:||Black and stainless steel|
|Environment:||Indoor or outdoor use|
|Interface to controller:||BC-Link, Clock&Data or Wiegand* (*req.config card)|
|Card technology:||EM4102 (also known as Miro or UNIQUE 125 KHz)|
|Card compatibility:||IB41-EM, IB42-EM IB44-EM, IB45-EM|
|Card read distance:||Up to 6 cm|
|Current consumption:||20 mA @ 12V DC 22 mA @ 24V DC|
|Operating voltage:||10.6 to 32 VDC|
|Operation temperature:||-30°C to +50°C|
|Housing material:||Polycarbonate case, fully encapsulated electronics, stainless steel outer frame|
|Housing protection (EN 60529):||IP65|
|Housing:||Polycarbonate case, fully encapsulated electronics, stainless steel outer frame|
|Dimensions (W x H x D):||100 x 128 x 18 mm|
|Operating temperature:||-30 to +50 °C|
|Indicators:||3 x LED (red/yellow/green) 1 x Buzzer|
