SPCK620.100-N Comfort KP, Neutr.

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54543-F110-B100
  • 7330082000319
Produktinformasjon "SPCK620.100-N Comfort KP, Neutr."

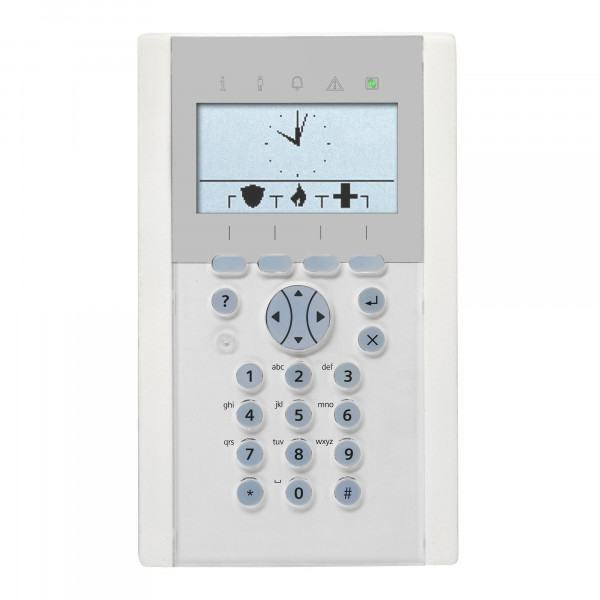

SPC LCD keypad with graphical display/card reader and audio Vanderbilt`s SPCK620/SPCK623 keypad provides a simple intuitive interface to the SPC system. Optimised for multi area systems the keypad provides a detailed overview of system status. Key Features include: Powerful menu structure The LCD display, soft keys, and multi-dimensional navigation key is ideal to operate large systems or single areas in a user friendly way. Cause and effect integration. Integrated Card reader (SPCK623 only) Can be used for authorization without code for ease of access or with code for higher security. Easy configuration Can be configured from the keypad or SPC Web interface. The comfort keypad is ideal to operate single and multi-area applications in a user friendly way. The soft keys and the multi-dimensional navigation key provide an easy to use system with minimum operational steps. Customer logo, emergency or quick set functions can be displayed in idle state.
Bruttovekt (KG) 0.55
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082000319
Mindestabnahme 1
Netto vekt 0.390
Materialkode V54543-F110-B100
Statistisk kode 85311030
Opprinnelsesland PH
Operating current: Max. 155 mA at 12 V DC (backlight, LEDs, sounder operated)
Tamper contact: Front/back spring tamper
Operating voltage: 9.5 ~ 14 V DC
Display: 128 x 64 pixels (approx. 6 x 20 characters)
Weight: 0.380 kg
LED Indicators: 5 status LEDs
Colour: RAL 9003 (signal white)
Operating temperature: 5° ~ +40 °C
Interfaces: X-BUS (in, out)
Quiescent current: Max. 55 mA at 12 V DC
