SPC5320.320-L1 Intrusion CP,G2

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

på lager

Klar til sending
leveringstid ca. 1-3 virkedager

  • V54541-C106-B100
  • 4025515470731
Produktinformasjon "SPC5320.320-L1 Intrusion CP,G2"

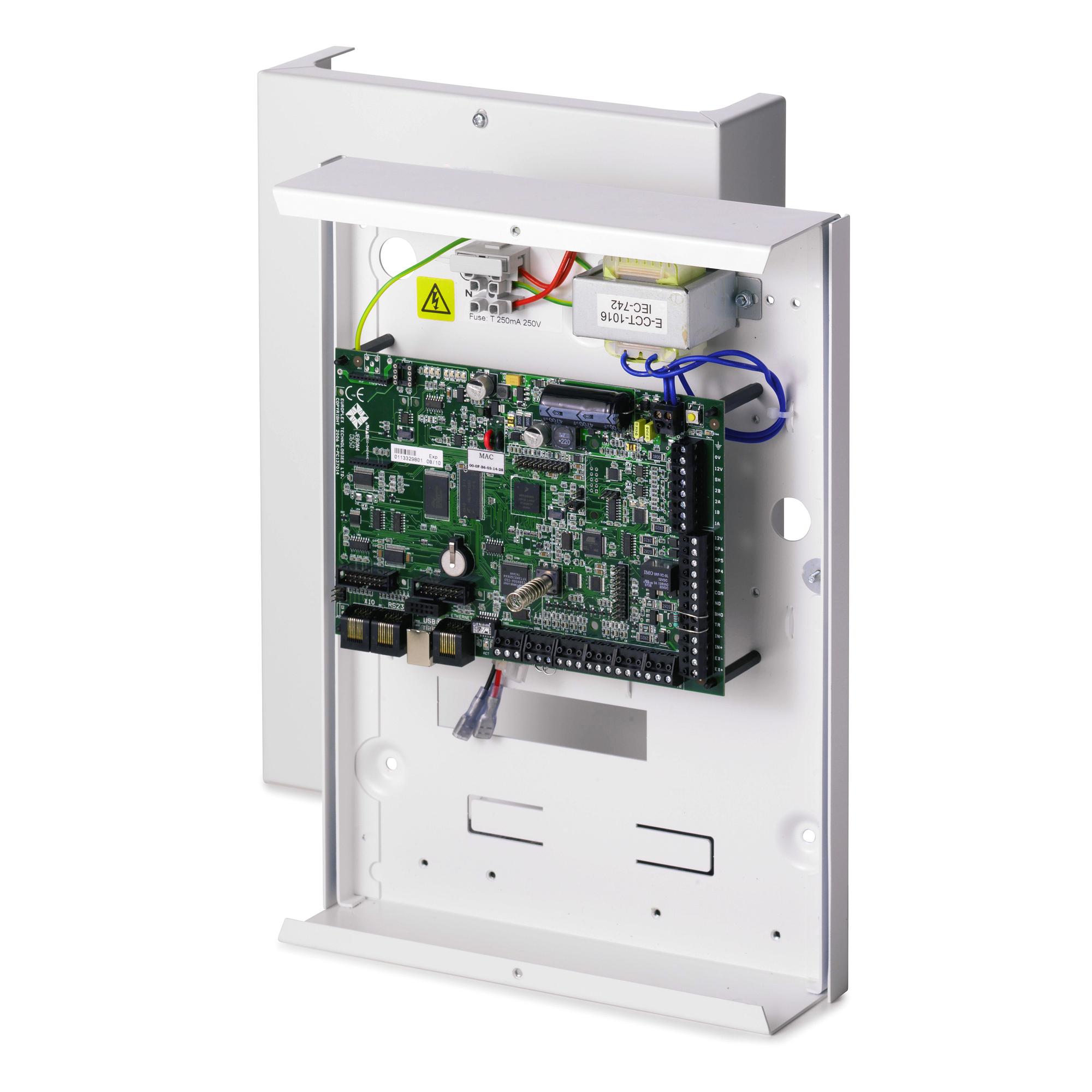

The SPC5320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (8 on-board), 128 outputs (6 on-board), 16 system keypads, 16 doors, 8 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16 areas, 500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 120 Intrunet wireless detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Bruttovekt (KG) 4.7
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470731
Mindestabnahme 1
ECCN N
Remote controls: Up to 50
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Operating current: Max. 190 mA at 12 VDC
Quiescent current: Max. 170 mA at 12 VDC
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Operating temperature: 0 ~ +40 °C
Power output: Max. 750 mA bei 12 VDC
Max. number of hardwired zones: 128
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Door capacity: Max. 16 entry doors or 8 entry/exit doors
Verification: 8 verification zones with max. 4 IP-cameras and 8 audio devices.
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Tamper contact: Front spring tamper, 2 auxiliary tamper contact inputs
Weight: 4.500 kg
Housing: Small metal housing (1.2 mm mild steel)
Approval: EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2
IP-Communication: Yes
Number of on-board relays: 1 strobe (30 VDC / 1 A resistive switching current)
Max. number of wireless zones: 120 (take away wired zones)
Number of on-board zones: 8
Colour: RAL 9003 (signal white)
Firmware: V3.6
Event memory: 10'000 intrusion events, 10'000 access events
Language: Multi-language support (en + 4 imported language files).Available language files: de, en, es, fr, it, nl, sv.
