SPC6350.320-L1 Intrusion CP, G5
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
- Produkt-nr.: V54541-C118-A100
- EAN/UPC Strekkode: 4025515470816
Produktinformasjon "SPC6350.320-L1 Intrusion CP, G5"
The SPC6350.320 control panel combines in an optimal way intrusion and
access functionality in one system and can be expanded according to
specific customers and project needs with up to 512 zones (16 on-board),
512 outputs (12 on-board), 32 system keypads, 64 doors, 16 verification
zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 60
areas, 2500 users with different access levels, memory for 10’000
intrusion and 10'000 access events, integrated Web Server, 2 terminals
for the pluggable PSTN and GSM/GPRS communication options, on-board
Ethernet interface. The system is expandable with wireless receivers and

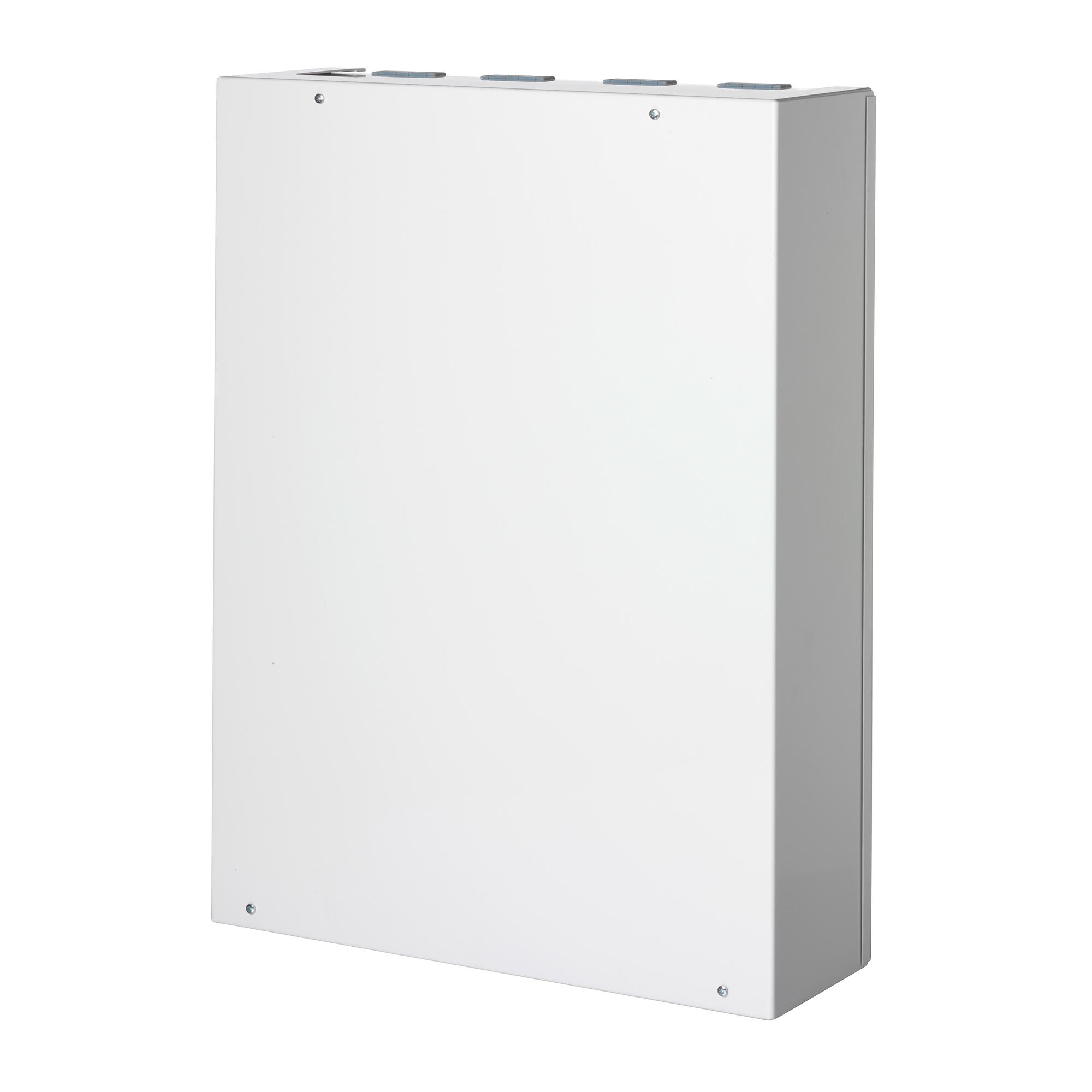

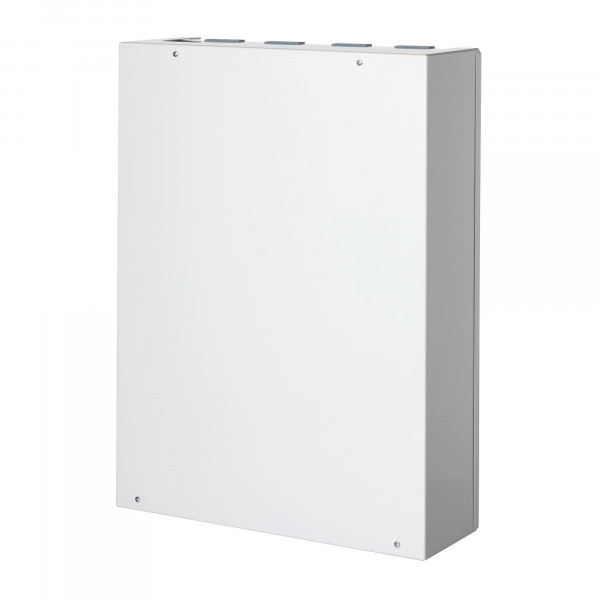

supports up to 64 detectors (mixed with wired zones). The panel comes in
a tamper protected metal housing with space for 2 optional 27 Ah
batteries and 4 additional expanders.
- Certificate (CE) - Issued by Vanderbilt, on 03/11/2020
- Certificate - Issued by CNPP, on 23/11/2021
- Certificate - Issued by SBSC, on 16/10/2017
- Certificate - Issued by SBSC, on 16/10/2016
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 28/05/2021
- Certificate - Issued by VdS, on 28/05/2021
- Certificate - Issued by VSÖ, on 28/05/2021
- Certificate (MSDS) - Issued by Supplier, on 10/01/2020
- Certificate (UN38.3) - Issued by Supplier, on 19/12/2019
- Certificate - Issued by CNPP, on 02/11/2022
- Certificate - Issued by SBSC, on 01/01/2023
- Certificate - Issued by VdS, on 23/11/2022
- Certificate - Issued by VdS, on 01/12/2022
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VSÖ, on 24/04/2023
Number of on-board zones: | 16 |
Verification: | 16 verification zones with max. 4 IP-cameras and 16 audio devices. |
Audio: | Up to 60 sec. pre / 60 sec. post audio recording |
Interfaces: | 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45) |
Mains voltage: | 230 VAC, + 10%/ -15%, 50 Hz |
Output voltage: | 13-14 VDC in normal conditions (mains powered and fully charged battery) |
Operating temperature: | 0 ~ +40 °C |
Video: | Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.) |
Housing: | Metal housing (1.5 mm mild steel) |
Relay outputs: | 4 (single-pole changeover, 30 V DC / max. 1 A resistive switching current) |
EOL resistor: | Dual 4K7 (default), other resistor combinations selectable |
Tamper contact: | Front / back tamper, 1 auxiliary tamper contact input |
Operating current: | Max. 415 mA at 12 VDC (all relays activated) |
Quiescent current: | Max. 350mA at 12 VDC |
Language: | Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv. |
Approval: | DE: VdS G112104, Klasse C AT: W 130923/10 E, Klasse WS In Zertifizierungsverfahren nach SES EN CH Grad 3 FFIS A 11001 A - 1 bis Kat. 2 Ablauf der FFIS Genehmigung per 31.12.2014 |
Power output: | Max. 2,2 A @ 12 V DC (8 x outputs with 300 mA) |
Weight: | 18,6 kg (housing incl. cover), 11,5 kg (housing without cover) |
Max. number of wireless zones: | 64 (take away wired zones) |
Door capacity: | Max. 64 entry doors or 32 entry/exit doors |
Max. number of hardwired zones: | 512 |
Event memory: | 10'000 intrusion events, 10'000 access events |
Colour: | RAL 9003 (signal white) |
Firmware: | V3.6 |
Remote controls: | Up to 100 |
Dimensions (W x H x D): | 498 x 664 x 157 (mm) |
- Datasheet (German) - spc6350
- Datasheet (English) - spc6350
- Datasheet (Spanish) - spc6350
- Datasheet (French) - spc6350
- Datasheet (Swedish) - spc6350
- Basic document (English) - SPC6350 AC Mains Transient Affect
- Installation instructions (Italian) - InstallAndConfig_PDF
- Installation instructions (Dutch) - InstallAndConfig_PDF
- Installation instructions (Danish) - InstallAndConfig_PDF
- Installation instructions (German) - InstallAndConfig_PDF
- Installation instructions (English) - InstallAndConfig_PDF
- Installation instructions (Spanish) - InstallAndConfig_PDF
- Installation instructions (French) - InstallAndConfig_PDF
- Installation instructions (Swedish) - InstallAndConfig_PDF
- Installation instructions (German) - TAS-link-IV-SPC integration_200568_DE20230905
- Install manual (German) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Spanish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (French) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Italian) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Dutch) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Swedish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - 220_SPC Install and Config_A6V10276959-f_EN_I-200338
- Install manual (Multilingual) - 220_SPC Install and Config_A6V10276959-g_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.5_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.7_EN
- Planning guide (French) - SPC Matrix 3.13.7_FR
- Planning guide (Italian) - SPC Matrix 3.13.7_IT
- Marketing flyer (Multilingual) - SPC Connect Price List 4.0
- Software (Multilingual - Version 04) - spcfwv3.8.5
- Software (English - Version 02) - SPC Power Calculation V3.0
- Software (German - Version 01) - SPC Stromberechnung V3.0
- Software (Multilingual - Version 01) - SPC CONFIGURATION TOOL 3.13.7
- Firmware (Multilingual - Version 02) - Firmware SPC 3.13.1
- Firmware (Multilingual - Version ) - Firmware (Multilingual - Version 01) - Firmware SPC 3.13.7
- Firmware (Multilingual - Version ) - SPC Firmware 3.14.1_20230904
- Software (Multilingual - Version 01) - SPC Connect Pro 3.14.1 Configuration Tool
- Software (Multilingual - Version 01) - SPC CONFIGURATION TOOL 3.13.7
