AGB800-AM Acoustic Glass Break G3

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54535-Z129-A100
  • 7330082004027
Produktinformasjon "AGB800-AM Acoustic Glass Break G3"

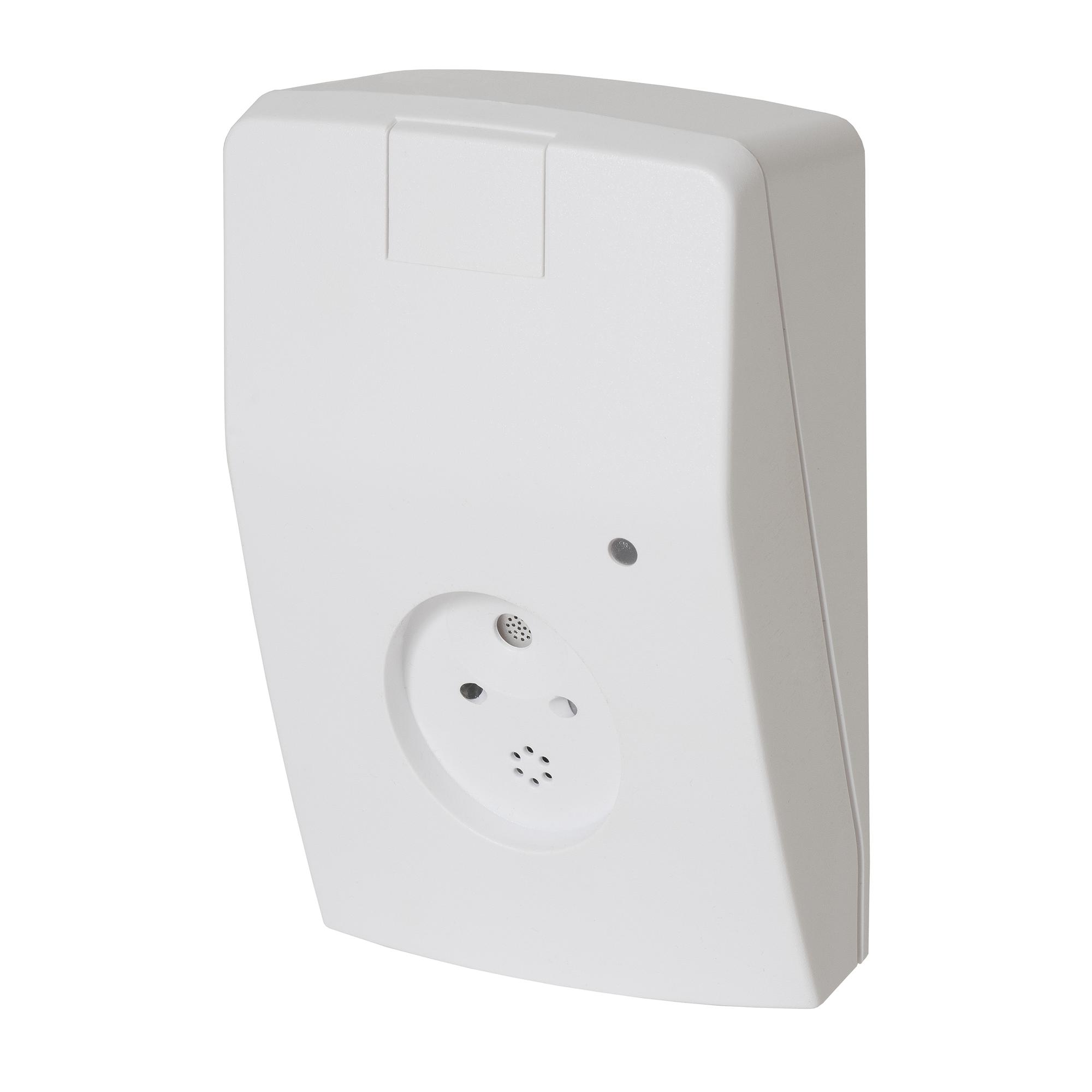

The AGB800-AM is a modern acoustic glass break detector, complete with anti-mask detection giving an alarm when glass is broken due to attempted intrusion through doors, windows and glazed walls. The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room Compensation feature enables the detector to distinguish between glass breaking and general background noise.
Bruttovekt (KG) 0.124
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082004027
Mindestabnahme 1
Statistisk kode 85311030
Materialkode V54535-Z129-A100
Netto vekt 0.105
Opprinnelsesland PL
ECCN EAR99
Tamper contact: 50mA @ 50VDC
Dimensions (W x H x D): 69 x 110 x 39mm
Quiescent current: 12mA @ 12VDC 8mA @ 24VDC
Current consumption, quiescent: 12mA @ 12VDC 8mA @ 24VDC
Alarm outputs: 50mA @ 50VDC
Operating temperature: -25....+40ºC
Approval: EN50131-2-7-1 Grade 3 VdS Class B G117506
Current consumption: Alarm - 12mA @ 12VDC Alarm - 8mA @ 24VDC
Supply voltage: 7....30VDC
Tamper switch: 50mA @ 50VDC
Housing material: ABS plastic, white
Environmental class: Class 1
Weight: 0.126Kg
