SPCE652.000 Expander board 8 In / 2 Out

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54542-F106-A200
  • 4025515479222

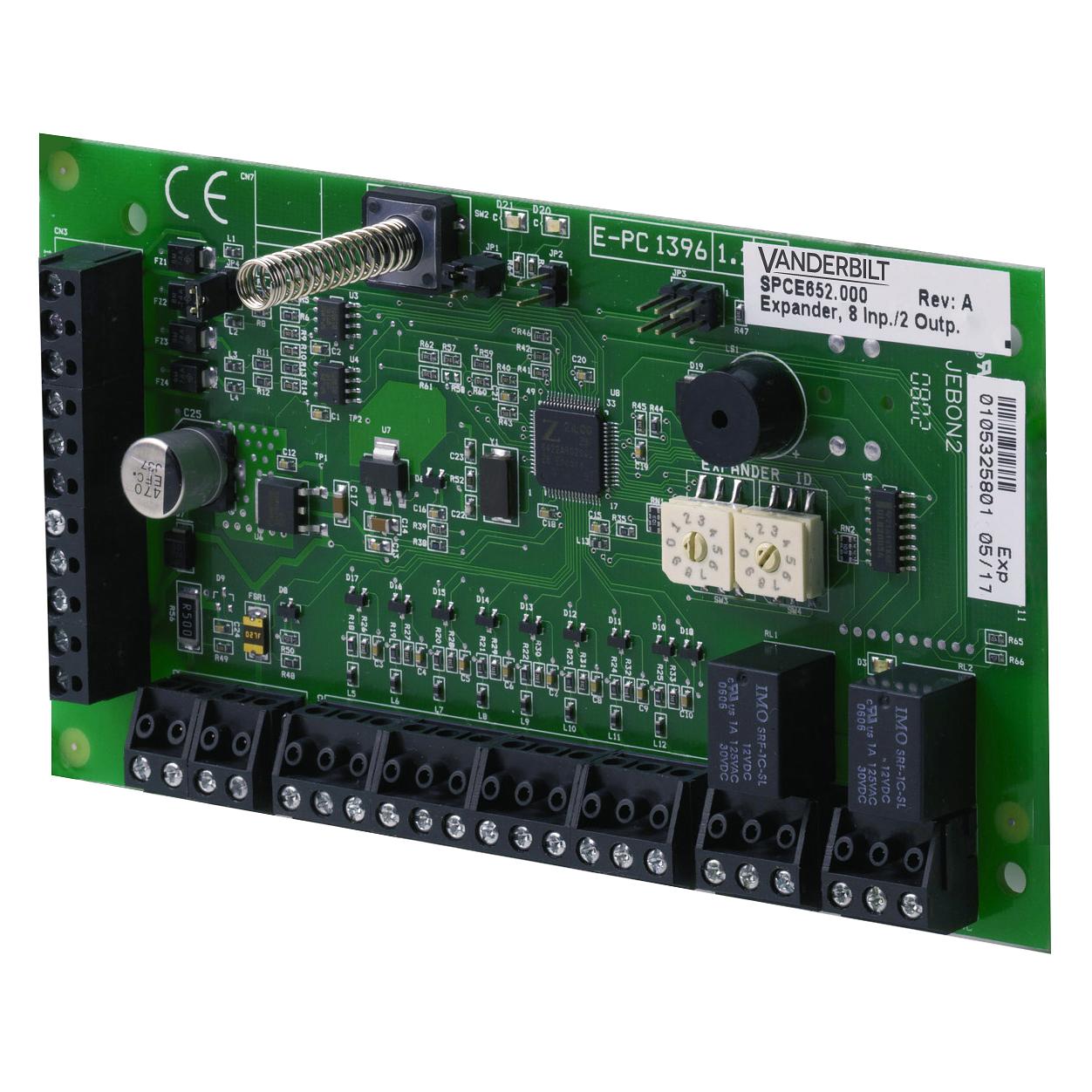

Produktinformasjon "SPCE652.000 Expander board 8 In / 2 Out"
The SPCE652.000 pcb only expander extends the SPC system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander features an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Bruttovekt (KG) 0.22
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515479222
Mindestabnahme 1
ECCN N
Materialkode V54542-F106-A200
Statistisk kode 85311030
Netto vekt 0.100
Opprinnelsesland PH
Weight: 0.1000 kg
Mounting: In SPC G2 and G3 cabinets or SPC expander housings
Tamper contact: Front spring tamper, back tamper - provided in kit bag
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 8
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 150 x 82 x 20 mm (PCB)
