WPIR Wrls. 12m PIR with PI

Forhåndsvisning: WPIR Wrls. 12m PIR with PI Forhåndsvisning: WPIR Wrls. 12m PIR with PI
WPIR Wrls. 12m PIR with PI
WPIR Wrls. 12m PIR with PI

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54538-F109-A200
  • EAN/UPC Strekkode: 7330082006052
Beskrivelse Import og eksport Ressourcen Teknisk data Dokumentasjon
Beskrivelse
Lukk meny
Produktinformasjon "WPIR Wrls. 12m PIR with PI"

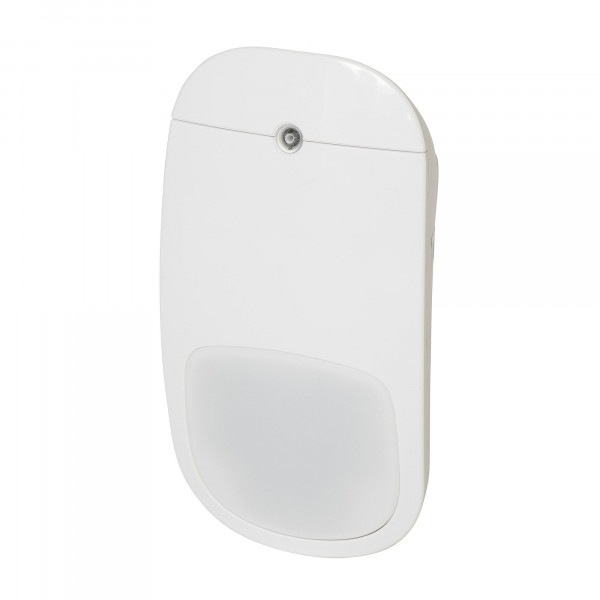

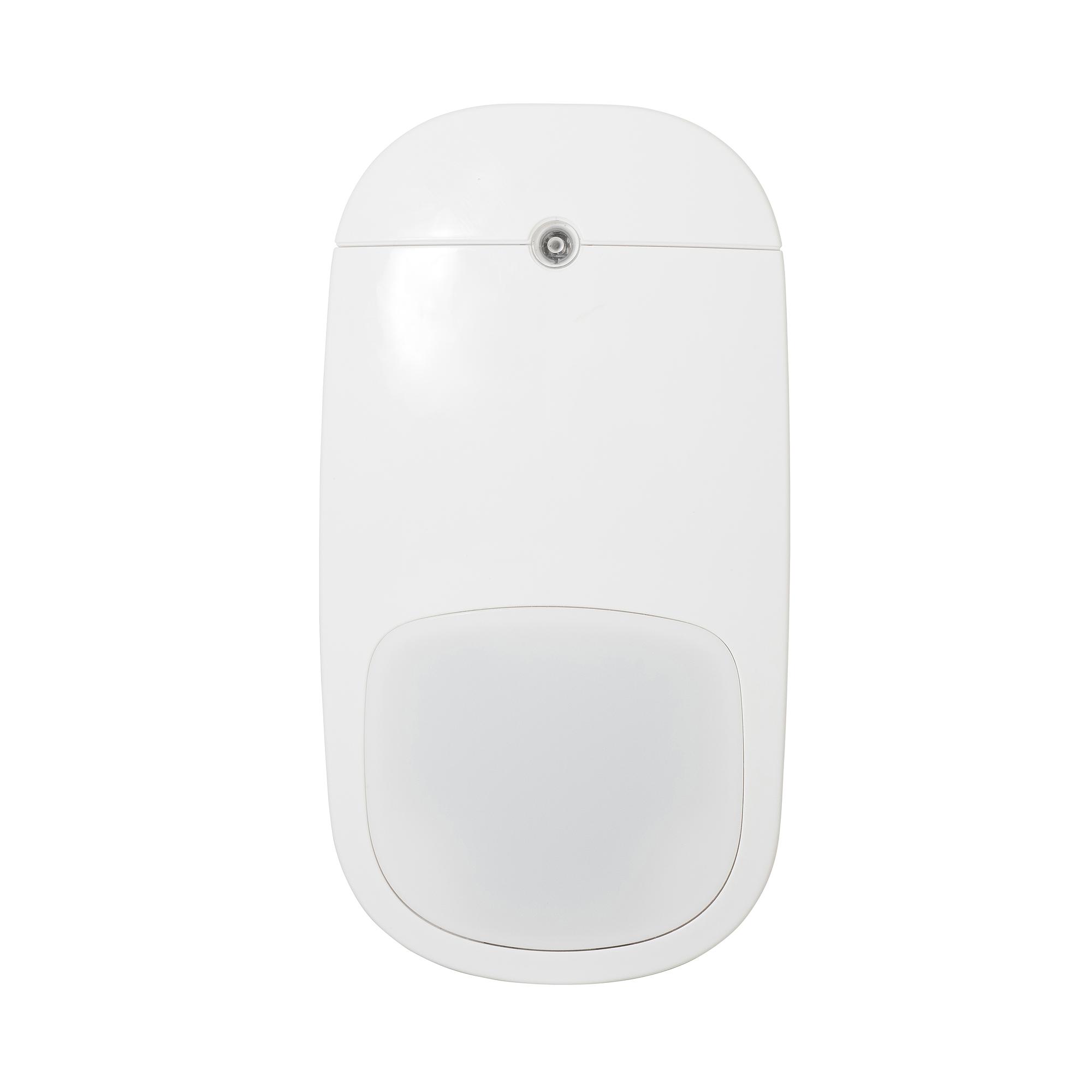

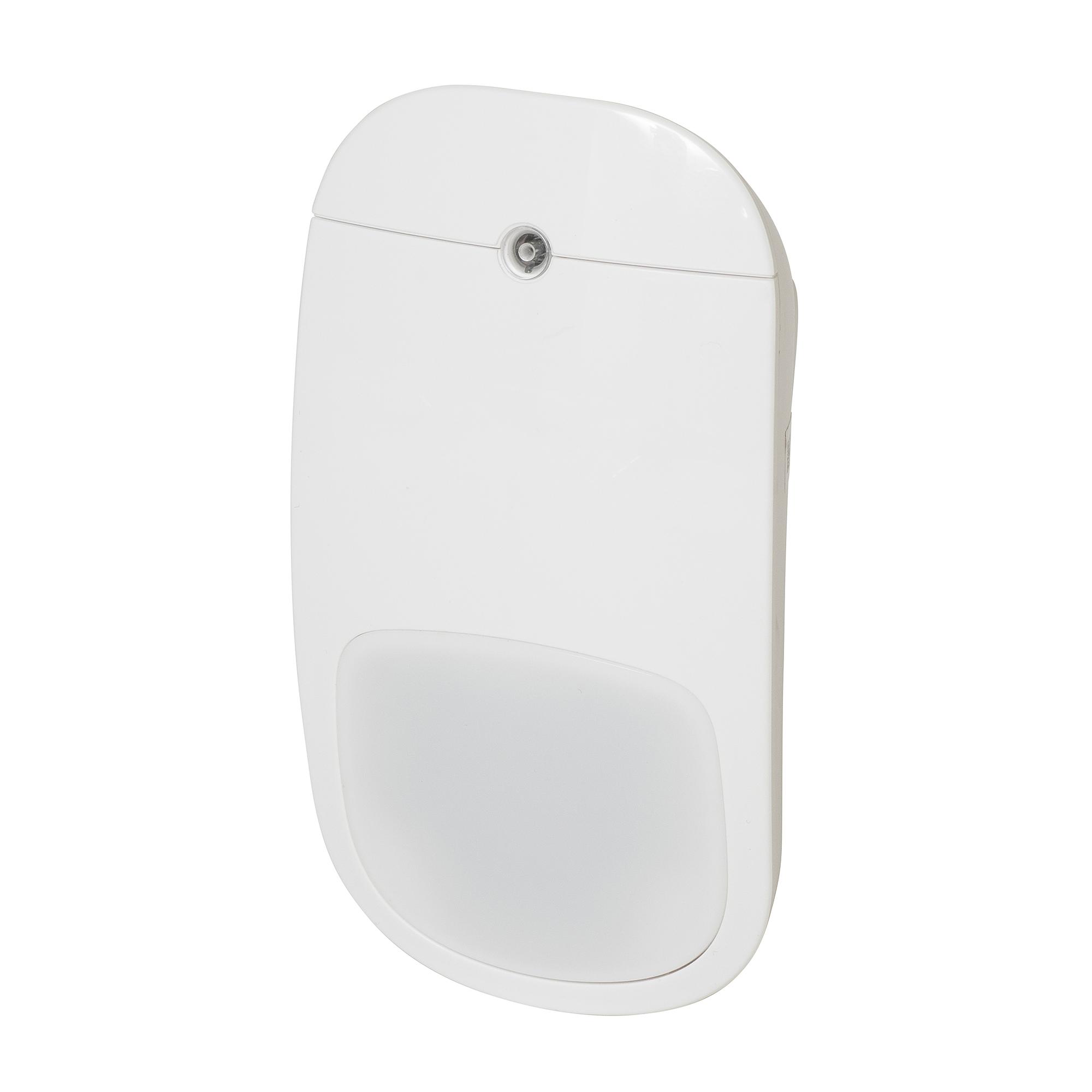

The WPIR wireless detector is a passive infrared quad element motion detector which is supported by the acre Intrusion system. The device has a 12m detection range and has configurable settings such as sensitivity, pulse count, supervision time, LED operation and Pet Immunity.
Import og eksport
Bruttovekt (KG) 0.1
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082006052
Mindestabnahme 1
Statistisk kode 85311030
Materialkode V54538-F109-A200
ECCN EAR99
Netto vekt 0.100
Opprinnelsesland IL
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Operating temperature: -10 ~ +50 °C
Range: up to 1200m in open air
Max. pet weight: up to 25kg
LED Indicators: Red LED: PIR Activated Green LED: Walk test
Detection characteristics / range: 12m
Current consumption: Standby ~11 µA Receive mode ~10 mA Transmit mode ~45 mA
Frequency: 868 - 869 Mhz
Dimensions (L x W x H): 108mm x 58mm x 42.5mm
Weight: 135 g
