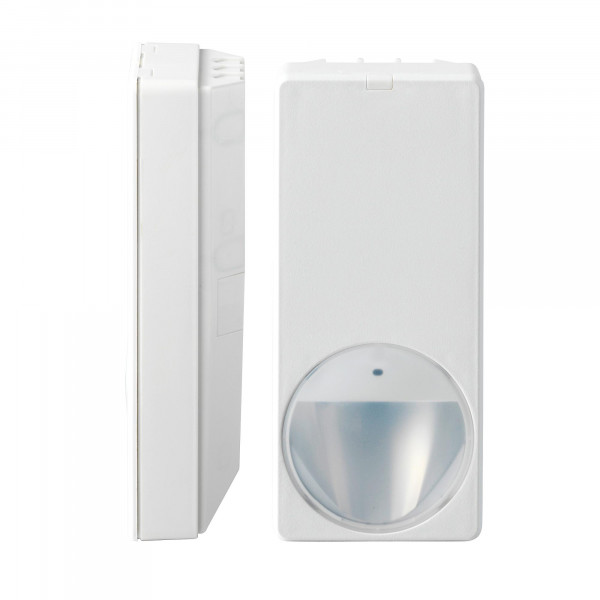

PDM-I12 PIR detector

PDM-I12 PIR detector
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54530-F114-A100
  • EAN/UPC Strekkode: 4025515470403
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon nyttige lenker
Beskrivelse
Lukk meny
Produktinformasjon "PDM-I12 PIR detector"
MAGIC motion detector PDM-I12 is impressive with its thin and flat design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.125
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470403
Mindestabnahme 1
Statistisk kode 85311030
ECCN EAR99
Opprinnelsesland RO
Netto vekt 0.119
Materialkode V54530-F114-A100
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Walking speed: 0.2 ... 3 m/s
Air humidity (EN 60721): < 95% RH, non-condensing
Colour: RAL9003
Outputs: 30 VDC / 100 mA, NC
Walk test input: Low ≤ 1,5 V / high ≥ 3,5 V
Set/unset input: Low ≤ 1,5 V / high ≥ 3,5 V
Current consumption: 2.5 mA (rms) 4.7 mA (max. peak)
EOL resistor: RI = 4.7 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
Sensitivity evaluation mode: 4 settings
Weight: 0.1kg
Storage temperature: -20 ~ +60°C
Approval: EN50131-2-2 grade 2VdS Klasse B
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Operating temperature: -10 ~ +55 °C
Housing protection (EN 60529): IP41 / IK02
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
Supply voltage: 9 ~ 16 VDC (12V nom.)
